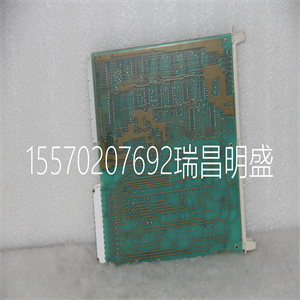

57160001-KX模块备件

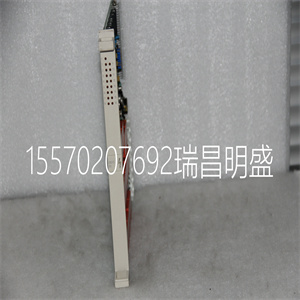

57160001-KX

PM8xx正在传输，而
Tx1/Tx2 LED闪烁，但
所连接的设备不可用
接收数据。
或
连接的设备是：
除了Rx1/Rx2之外
LED不闪烁。
•检查通信是否正常
接口电缆已连接。
•检查握手信号。
Tx/Rx信号闪烁
同时
传输，但是消息
没有被正确接收
通过所连接的设备。
•检查波特率、奇偶校验和
数据和停止位的数量如下：
为连接的设备指定。
•检查握手程序是否正确
如两端所规定。
•检查驾驶员程序是否正常
在控制器和控制器中
连接的设备。
•断开控制器电源，
请稍等片刻，然后通电
再一次
•停止程序并启动重置
来自PM8xx的信号（INIT）
处理器单元。
CI853支持热插拔。
PROFIBUS DP–CI854/CI854A第5节维护
214 3BSE036351-510 A
现场总线DP–CI854/CI854A
表34.现场总线DP CI854/CI854A–故障查找
指示、可能原因和纠正措施
既不是R（联合国）也不是F（联合国）
LED灯亮起
CI854/CI854A板正在进行以下操作：
正在重新启动或配置。留出时间，以便：
后确定。
如果该情况持续存在，以及机器上的所有其他装置
CEX总线具有不发光的LED：
•检查有效的硬件配置，包括：
将CI854下载到控制器。
•检查PM8xx内的CEX总线保险丝
处理器单元。
•从PM8xx启动复位信号（INIT）
处理器单元。
•更换CI854/CI854A装置。
F（ault）指示灯亮起。检查CI854板是否正在运行
正在重新启动。留出时间完成这项工作。
检查是否未报告任何配置故障
来自CBM中的CI854/CI854A。
如果状态保持不变，则启动复位信号（INIT）
来自PM8xx处理器单元。如果状态仍然是
复位后剩余。更换CI854/CI854A
单元
RxA LED熄灭，线路A上无通信。
•检查从属设备是否已配置，以及
连接到该线路。
•如果使用冗余从机，检查：
冗余工作正常。备份
从属服务器必须响应生命列表请求
主人送来的。
•检查所有电缆和连接器是否损坏
以及松动或不良连接。
第5节维护PROFIBUS DP–CI854/CI854A
3BSE036351-510 A 215
RxB指示灯熄灭，线路B上无通信。
•检查从属设备是否已配置，以及
连接到该线路。
•如果使用冗余从机，检查：
冗余工作正常。备份
从属服务器必须响应生命列表请求
主人送来的。
•检查所有电缆和连接器是否损坏
以及松动或不良连接。
两侧的双LED均熄灭
模块（仅限CI854A）
CI854A板正在安装过程中
重新启动或配置。留出时间，以便：
后确定。
检查此模块的冗余是否已设置
并下载配置。
CI854A支持热插拔。
表34.现场总线DP CI854/CI854A–故障查找（续）
指示、可能原因和纠正措施
MasterBus 300接口–CI855第5节维护
216 3BSE036351-510 A
MasterBus 300接口–CI855
表35.MasterBus 300 CI855-故障查找
故障、可能原因和纠正措施
无论是R（un）还是F（ault）LED
是吗
CI855板正在安装中
重新启动或配置。留出时间，以便：
后确定。
如果该情况持续存在，并且没有其他单元指示灯亮起
CEX总线点亮：
检查有效的硬件配置，包括：
将CI855下载到控制器。
检查处理器单元内的CEX总线保险丝
启动来自处理器的复位信号（INIT）
单元
更换CI855单元
F（故障）指示灯亮起。检查所有电缆和接头是否损坏和损坏
连接松动或不良。
必要时进行修理
R（un）指示灯闪烁。检查相关装置是否正在发送数据。
检查CI855板是否正在进行测试
正在重新启动或配置。如果是这样，请留出时间
这项工作有待完成。
如果该情况持续存在：
停止应用程序并启动重新启动。
更换CI855板。
Tx1 LED亮起（不闪烁）表示装置未传输数据。
•检查断路器是否有故障信息。
Rx1 LED亮起（不闪烁）表示装置未接收数据。
•检查所有电缆和连接。

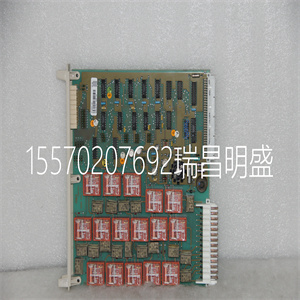

57160001-KX

57160001-KX

The PM8xx is transmitting and the Tx1/Tx2 LEDs are flashing, but the connected device is not receiving data. OR The connected device is transmitting, but the Rx1/Rx2 LEDs are not flashing. • Check that the communication interface cable is connected. • Check the hand-shake signals. The Tx/Rx signals are flashing concurrently with transmission, but the messages are not being received correctly by the connected device. • Check that the baud rate, parity, and number of data and stop bits are as specified for the connected device. • Check that the handshake procedures are as specified at both ends. • Check that the driver routines are adequate, both in the controller and the connected device. • Disconnect power to the controller, wait a moment and then power-up again. • Halt the program and initiate a reset signal (INIT) from the PM8xx processor unit. CI853 supports hot swap. PROFIBUS DP – CI854/CI854A Section 5 Maintenance 214 3BSE036351-510 A PROFIBUS DP – CI854/CI854A Table 34. PROFIBUS DP CI854/CI854A – Fault-Finding Indication Possible Cause and Corrective Action Neither R(un) nor F(ault) LED’s are ON The CI854/CI854A board is in the process of being restarted or configured. Allow time for this to finalize. If the condition persists, and all other units on the CEX-bus have non-illuminated LEDs: • Check that a valid HW configuration including the CI854 is downloaded to the controller. • Check the CEX-bus fuse inside the PM8xx processor unit. • Initiate a reset signal (INIT) from the PM8xx processor unit. • Replace the CI854/CI854A unit. F(ault) LED is ON Check that the CI854 board is in the process of being restarted. Allow time for this to finalize. Check that there is no configuration fault reported from CI854/CI854A in CBM. If the status remains initiate a reset signal (INIT) from the PM8xx processor unit. If the status still remains after the reset replace the CI854/CI854A unit. RxA LED is OFF No communication on Line A. • Check that slaves are configured and connected to this line. • If redundant slaves are used check that the redundancy is working properly. The backup slave has to answer to the life list requests sent by the master. • Check all cables and connectors for damage and loose or poor connections. Section 5 Maintenance PROFIBUS DP – CI854/CI854A 3BSE036351-510 A 215 RxB LED is OFF No communication on Line B. • Check that slaves are configured and connected to this line. • If redundant slaves are used check that the redundancy is working properly. The backup slave has to answer to the life list requests sent by the master. • Check all cables and connectors for damage and loose or poor connections. DUAL LED is OFF on both modules (CI854A only) The CI854A board is in the process of being restarted or configured. Allow time for this to finalize. Check that the redundancy for this module is set within CBM and the configuration is downloaded. CI854A supports hot swap. Table 34. PROFIBUS DP CI854/CI854A – Fault-Finding (Continued) Indication Possible Cause and Corrective Action MasterBus 300 Interface – CI855 Section 5 Maintenance 216 3BSE036351-510 A MasterBus 300 Interface – CI855 Table 35. MasterBus 300 CI855 – Fault Finding Fault Possible Cause and Corrective Action Neither R(un) nor F(ault) LEDs are ON The CI855 board is in the process of being restarted or configured. Allow time for this to finalize. If the condition persists, and no other unit LED on the CEX-Bus is lit: Check that a valid HW configuration including the CI855 is downloaded to the controller. Check the CEX-Bus fuse inside the processor unit Initiate a reset signal (INIT) from the processor unit Replace the CI855 unit F(ault) LED is ON Check all cables and connectors for damage and loose or poor connections. Repair as necessary R(un) LED is flashing Check that the relevant units are sending data. Check if the CI855 board is in the process of being restarted or configured. If so, allow time for this to finalize. If the condition persists: Halt the application program and initiate a restart. Replace the CI855 board. Tx1 LED is ON (not flashing) The unit is not transmitting data. • Check the CB for a failure message. Rx1 LED is ON (not flashing) The unit is not receiving data. • Check all cables and connections.
