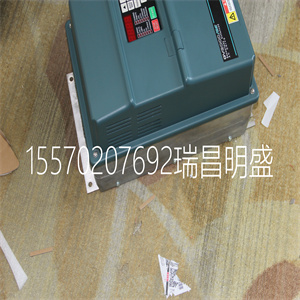

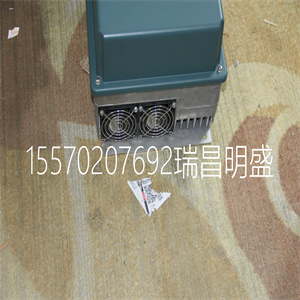

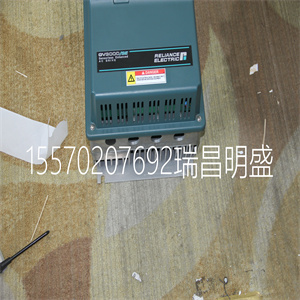

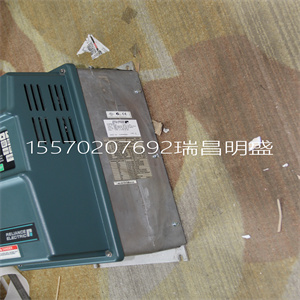

GV3000SE 15V4160模块备件

GV3000SE  15V4160

GV3000SE  15V416e表示V和T。例如
BSX=2700
Artisan技术集团-质量仪器…保证|（888）88-SOURCE| www.artistg.com
DMC-18x2第2章入门•19
将用2伏电压测试X轴，每次施加700毫秒
阶段作为响应，此测试指示DAC接线是否正确，并将：
指示BM的近似值。如果接线正确，则的近似值为：
BM将与上一步中使用的值一致。
注：为了正确进行无刷设置，必须允许电机：
在两个方向上移动至少一个磁循环。
注意：使用Galil Windows软件时，超时必须设置为至少10秒
执行BS命令时的秒数（超时=10000）。这允许软件
以检索从控制器返回的所有消息。
如果霍尔传感器可用：
由于霍尔传感器是随机连接的，因此它们很可能是通过电缆连接的
顺序不正确。无刷设置命令指示大厅的接线正确
传感器。应重新配置霍尔传感器导线，以反映该测试的结果。
setup命令还报告霍尔过渡点的位置偏移和
电机换向的零相位。霍尔传感器的零转变通常是
发生在相位换向的0°、30°或90°处。有必要通知客户
控制器关于霍尔传感器的偏移，这是根据指令BB完成的。
步骤E.保存无刷电机配置
将无刷电机配置保存在非易失性存储器中非常重要。
在正确配置电机接线和设置参数后
应发出命令BN。
如果霍尔传感器不可用：
如果没有霍尔传感器，控制器将无法估计电机的换向相位
无刷电机。在这种情况下，控制器可能会变得不稳定，直到
已使用BZ命令设置换向相位（参见下一步）。这是非常重要的
建议在执行BN命令之前发出电机关闭命令。
在这种情况下，电机将在通电或复位以及换向后停用
可以在启用电机之前设置相位。
步骤F.将换向相位设置为零
当轴被定义为正弦换向时，控制器必须具有
换向阶段的估计。当使用霍尔传感器时，控制器会自动
在控制器复位时估计该值。如果未使用霍尔传感器
将无法进行此估计，并且必须在之前设置换向相位
启动电机。
如果霍尔传感器不可用：
要在没有霍尔效应传感器的情况下初始化换向，请使用命令BZ。这
函数将电机驱动到换向相位为零的位置，并设置
相位为零。
BZ命令后面是对应于被驱动变量的字段中的实数
斧子。该数字表示在测试期间施加到放大器的电压
初始化。当电压由正数指定时
该过程以马达关闭（MO）状态结束。负数会导致进程失败
结束于伺服（SH）状态。
警告：此命令必须移动电机以找到零换向相位。
这种移动是瞬时的，将导致系统颠簸。较大的应用
电压将导致更严重的电机抖动。施加的电压通常是
Artisan技术集团-质量仪器…保证|（888）88-SOURCE| www.artistg.com
20● 第2章DMC-18x2的入门
足以正确操作BZ命令。对于具有显著摩擦的系统，
该电压可能需要增加，对于电机非常小的系统，该值
应减少。
例如
BZ-2,0,1
将驱动X轴和Z轴归零，将分别向X和Z轴施加2V和1V
将以X在SH和Z在MO中结束。
如果霍尔传感器可用：
换向相位的估计值在30°以内。这个估计可以
可用于驱动电机，但高效电机需要更准确的估计
活动有3种可能的换向相位初始化方法：
方法1.如上所述使用BZ命令。
方法2.驱动电机接近零换向相位，然后使用BZ
命令该方法通过关闭电机来减少系统抖动量
在执行BZ命令之前，将换流阶段归零。控制器进行控制
估计当前位置和当前位置之间的编码器计数数
换相相位为零。该值存储在操作数_ BZx中。使用此
控制器c的操作数0
