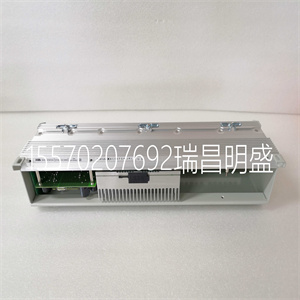

ABB PPD512 A10-15000 3BHE040375R1023模块备件

ABB PPD512 A10-15000 3BHE040375R1023

确认现场符合环境要求。到
在安装、储存和运输前防止损坏
按照以下规定的环境要求驾驶：
储存和运输。请参阅上的“环境条件”一节
第440页。
确认外壳（防护等级）合适，
根据现场控制水平：
•IP21型外壳。现场必须无空气污染
灰尘、腐蚀性气体或液体以及导电材料
污染物，如滴水、冷凝、碳
灰尘和金属颗粒。
•IP54型外壳。该外壳提供了保护，防止
空气中的灰尘和光喷雾，或从所有
方向。
与IP21外壳相比，IP54外壳具有：
•与IP21外壳相同的内部塑料外壳
•不同的外部塑料盖
•一个额外的内部风扇，以改善冷却
•更大尺寸
•相同额定值（不需要降额）。
如果出于某种原因，需要安装IP21驱动器，而无需安装
导管盒或盖，或不带导管的IP54驱动器
板或顶盖，见第444页的注释。
准备安装23
ACH550-01用户手册
合适的安装位置
确认安装位置符合以下要求：
限制条件：
•驱动装置必须垂直安装在光滑的平台上，
不易燃、固体表面或框架，并在适当的位置
“适用环境”一节中定义的环境，以及
第22页的附件。
•对于水平安装，请联系当地ABB
代表了解更多信息。
也可以安装在机架上。没有额外的
由于驱动器有一个整体式冷却系统，因此需要使用冷却板
散热器背板。
有关安装，请参见第421页的“安装尺寸”一节
所有框架尺寸和保护类型的尺寸。
下图显示了所需的可用空间
装置的安装。
IP21和IP54:200毫米[8英寸]
IP21和IP54:200毫米[8英寸]
IP21和IP54:0毫米[0英寸]IP21和IP 54:0厘米[0英寸]
24准备安装
ACH550-01用户手册
确保热空气不会重新进入驱动器。
下图显示了冷却空气的小空间。
200毫米
200毫米
准备安装25
ACH550-01用户手册
阻止来自驱动器的热空气进入冷却空气进气口
在另一个驱动器之间有足够的机械障碍物
驱动器。下图所示为小空间
冷却空气。
200毫米
200毫米
200毫米
200毫米
26准备安装
ACH550-01用户手册
布线和EMC注意事项
确定电磁兼容（EMC）要求
根据当地法规。一般来说：
•电缆尺寸遵循当地规范。
•将这三类接线分开：输入电源
接线、电机接线和控制/通信接线。
•检查允许的大电机运行极限
第410页“电机连接”一节中的电缆长度。
•如果安装必须符合欧洲EMC指令
要求（见IEC/EN标准的符合性章节
61800-3:2004+A1:2012，第445页），同时检查EMC
截面中允许的大电机电缆长度限制
第410页的电机连接。
注意：布线不当是大多数EMC问题的根源
问题。请遵循指令

ABB PPD512 A10-15000 3BHE040375R1023

ABB PPD512 A10-15000 3BHE040375R1023

Confirm that the site meets the environmental requirements. To prevent damage prior to installation, store and transport the drive according to the environmental requirements specified for storage and transportation. See section Ambient conditions on page 440. Confirm that the enclosure (degree of protection) is appropriate, based on the site containment level: • IP21 type enclosure. The site must be free from airborne dust, corrosive gases or liquids, and conductive contaminants such as dripping water, condensation, carbon dust, and metallic particles. • IP54 type enclosure. This enclosure provides protection from airborne dust and light sprays or splashing water from all directions. Compared to the IP21 enclosure, the IP54 enclosure has: • the same internal plastic shell as the IP21 enclosure • a different outer plastic cover • an additional internal fan to improve cooling • larger dimensions • the same rating (does not require a derating). If, for some reason, an IP21 drive needs to be installed without the conduit box or cover, or an IP54 drive without the conduit plate or top cover, see the note on page 444. Preparing for installation 23 ACH550-01 User's Manual Suitable mounting location Confirm that the mounting location meets the following constraints: • The drive must be mounted vertically on a smooth, non-flammable, solid surface or frame, and in a suitable environment as defined in section Suitable environment and enclosure on page 22. • For horizontal installation, contact your local ABB representative for more information. Mounting on a machine frame is also possible. No additional plates are needed for cooling as the drive has an integral heatsink backplate. See section Mounting dimensions on page 421 for mounting dimensions for all frame sizes and protection types. The figure below shows the necessary free space for the installation of the unit. IP21 & IP54: 200 mm [8 in] IP21 & IP54: 200 mm [8 in] IP21 & IP54: 0 mm [0 in] IP21 & IP54: 0 mm [0 in] 24 Preparing for installation ACH550-01 User's Manual Make sure that the hot air does not re-circulate into the drive. The figure below show the minimum space for cooling air. 200 mm 200 mm Preparing for installation 25 ACH550-01 User's Manual Stop the hot air from a drive from entering the cooling air intake of another drive with an adequate mechanical obstacle between the drives. The figure below shows the minimum space for cooling air. 200 mm 200 mm 200 mm 200 mm 26 Preparing for installation ACH550-01 User's Manual Wiring and EMC considerations Determine electro-magnetic compliance (EMC) requirements per local codes. In general: • Follow local codes for cable size. • Keep these three classes of wiring separated: input power wiring, motor wiring and control/communications wiring. • Check the operational limits for the allowed maximum motor cable length in section Motor connection on page 410. • If the installation must meet the European EMC Directive requirements (see section Compliance with the IEC/EN 61800-3:2004 +A1:2012 on page 445), check also the EMC limits for the allowed maximum motor cable length in section Motor connection on page 410. Note: Non-proper wiring is the source of the majority of EMC problems. Please follow the instru
