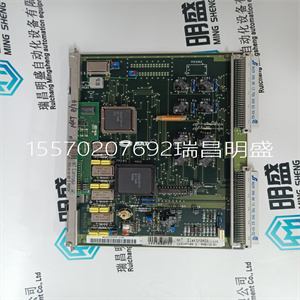

SAT CM3142-01-03 CX3147-04模块备件

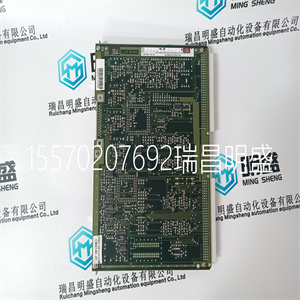

SAT CM3142-01-03 CX3147-04

如果机箱为版本2（或更高版本），则可以在机箱之间执行智能插槽
更高）。这些装置安装了接头，以便能够连接TC-006，该TC-006
确保每个机箱的0伏电压处于相同的电位。
如果I/O模块已关闭（例如，由于两个现有故障），则
三个正常指示灯将为红色，活动和备用指示灯将闪烁
红色，指示灯将闪烁琥珀色。提供的I/O功能
如果热插拔合作伙伴尚未接管，则此模块将丢失
控制只有将模块从插槽中卸下，才能重新启动模块，然后
重新插入。
如果将I/O模块插入到先前具有的功能系统插槽中
没有激活的模块（例如，如上所述拆卸和重新插入），则处理器
将在模块启动后教育模块。受过教育的人一旦受到教育，就会成为
将为稳定的绿色，并且激活的LED将为红色闪烁。
输入模块现在将读取并报告其输入。输出
模块的输出尚未通电。为了激活输出和设置
配对槽
智能插槽
冷启动
第6章故障查找和维护
罗克韦尔自动化出版物ICSTT-RM271Q-EN-P-2021 8月37
模块的激活LED和处理器的系统健康LED稳定
绿色，按下处理器重置按钮。
建议每两年进行一次验证测试。
请参阅可信TMR安全手册T8094的附录F，出版物ICSTTRM459。
TMR处理器负责管理一对I/O模块
通过主/备用切换。以下规则适用于：
主动/备用转换，尽管是TMR处理器，而不是I/O
模块强制它们：
•用户必须定义主I/O，也可以定义次I/O
每个I/O模块对的模块位置。每个主模块
位置必须是的，并被定义为复合体的一部分
IEC 61131工具集中的设备定义。次要的
模块位置可以是的，也可以在多个辅助模块之间共享
模块和在中的模块部分中定义
系统INI文件。系统将自动确定
辅助模块位置（如果主模块已安装且未安装）
可操作。
•初始启动时，如果p
