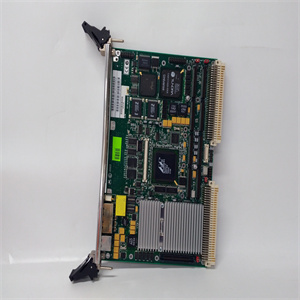

MVME135模块备件

MVME135

子系统。这是耦合的
MVME7100系列具有丰富的I/O接口，非常适合
用作特定于应用程序的计算刀片或智能I/O
刀片/托架。NXP MPC864xD系统芯片（SoC）处理器，
其运行速度高达1.3GHz，非常适合于I/O
以及数据密集型应用。集成SoC设计创建
一种I/O密集型先进的软件包，结合了双低功耗
具有片上二级缓存和双集成的功率处理核心
DDR2内存控制器、PCI Express、DMA、以太网和本地
设备I/O。片上PCI Express接口和双DDR2
内存总线与处理器匹配良好。确保
佳I/O性能，8x PCI Express端口连接到
五端口PCI Express交换机。有三个4x PCI Express端口
连接到PCI Express-to-PCI-X桥接器
用于两个PMC-X站点和VME总线的独立PCI-X总线
界面1x PCI Express端口连接到PCI Express toPCI桥接器，该桥接器连接到USB芯片（商用）
仅温度）。MVME7100还提供四千兆位以太网
接口、USB 2.0和五（5）个RS-232串行连接。所有这些
这构成了一组平衡良好、高性能的子系统
提供无与伦比的性能。
从Arrow.com下载。
MVME7100数据表
向后兼容性
MVME7100系列延续了提供
Artesyn嵌入式控制器的迁移路径，如
MVME16x、MVME17x、MVME2300/MVME2400和来自Artesyn的
将诸如MVME2600/2700的SBC连接到单个平台。这个
MVME7100系列，如MVME3100、MVME5100、MVME5500，
和MVME6100系列，融合了Artesyn的佳功能
嵌入式控制器和SBC使OEM能够支持
使用相同的基础平台改变I/O要求，简化
零件号维护、技术专业知识要求，
和节省。
MVME7100系列为客户提供了另一种迁移方式
从MVME2100、MVME2300、MVME2400、MVME2600的路径，
MVME2700、MVME3100、MVME5100、MVME5500和
MVME6100板，使其能够利用功能
例如集成的MPC864xD SoC处理器、DDR2存储器，
千兆以太网、PCI-X、PCI Express、USB和2eSST。
PCI扩展
MVME7100具有支持PCI的8x PCI Express连接
快速扩展运营商，如Artesyn XMCspan。

MVME135

MVME135

subsystems. This coupled with a wealth of I/O interfaces make the MVME7100 series ideal for use as an application-specific compute blade, or an intelligent I/O blade/carrier. The NXP MPC864xD system-onchip (SoC) processor, running at speeds up to 1.3GHz, is well-suited for I/O and data-intensive applications. The integrated SoC design creates an I/O intensive state-of-the-art package that combines dual low power processing cores with on-chip L2 cache and dual integrated DDR2 memory controllers, PCI Express, DMA , Ethernet and local device I/O. The on-chip PCI Express interface and dual DDR2 memory busses are well matched to the processor. To ensure optimal I/O performance, the 8x PCI Express port is connected to a five-port PCI Express switch. Three 4x PCI Express ports are connected to PCI Express-to-PCI-X bridges which provide independent PCI-X busses for the two PMC-X sites and VME bus interface. A 1x PCI Express port is connected to a PCI Express-toPCI bridge which is connected to the USB chip (commercial temperature only). The MVME7100 also offers quad Gigabit Ethernet interfaces, USB 2.0, and five (5) RS-232 serial connections. All of this adds up to a set of well-balanced, high-performance subsystems offering unparalleled performance. Downloaded from Arrow.com. MVME7100 Data Sheet Backward Compatibility The MVME7100 series continues the direction of providing a migration path from Artesyn’s embedded controllers such as the MVME16x, MVME17x, MVME2300/MVME2400, and from Artesyn SBCs such as the MVME2600/2700 to a single platform. The MVME7100 series, like the MVME3100, MVME5100, MVME5500, and MVME6100 series, merged the best features of Artesyn’s embedded controllers and SBCs enabling OEMs to support varying I/O requirements with the same base platform, simplifying part number maintenance, technical expertise requirements, and sparing. The MVME7100 series offers customers an alternate migration path from the MVME2100, MVME2300, MVME2400, MVME2600, MVME2700, MVME3100, MVME5100, MVME5500 and MVME6100 boards to allow them to take advantage of features such as the integrated MPC864xD SoC processor, DDR2 memory, Gigabit Ethernet, PCI-X, PCI Express, USB, and 2eSST. PCI Expansion The MVME7100 has an 8x PCI Express connection to support PCI Express expansion carriers such as the Artesyn XMCspan.
