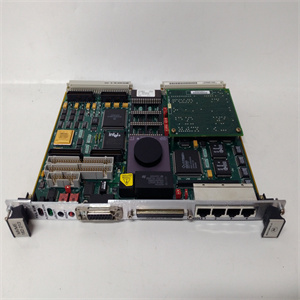

MVME166模块备件

MVME165

转换模块
MVME7216E转换模块提供行业标准
两个10/100/1000BaseTX端口和四个
配置为RS-232 DTE的异步串行端口。所有这些
通过RJ-45连接器。MVME7216E RTM设计用于：
使用80毫米电缆直接连接到机箱中的VME背板
深后方过渡区。
软件支持
固件监视器
MVME7100固件（称为MOTLoad）驻留在
MVME7100闪存并提供通电自检、初始化和
操作系统引导功能。此外，它还提供了一个
调试器界面类似于上经过时间验证的“BUG”界面
Artesyn以前的VMEbus板。
操作系统和内核
MVME7100系列支持启动各种操作系统
系统，包括一整套实时操作系统
和果仁。Artesyn嵌入式技术
计算Linux（2.6.25内核）现在可用。VxWorks BSPs
（5.5.1安培，6.8 SMP）由Wind River提供和支持
系统。
规格
加工机
•微处理器：NXP MPC864xD，配备双PowerPC e600
核心
•时钟频率：1.06或1.3 GHz
•片上一级缓存（I/D）：每个核32 K/32 K
•片上二级缓存：每个核1MB
系统控制器
ƒ集成在MPC864xD中
主存储器
ƒ类型：双数据速率（DDR2）SDRAM
ƒ速度：DDR2-533
ƒ容量：1GB或2GB
ƒ配置：双内存控制器
闪存
ƒ类型：NOR闪存，车载可编程
•容量：128MB
•写保护：硬件通过开关，软件通过寄存器或
扇形锁
ƒ类型：NAND闪存，板载可编程
•容量：2GB、4GB或8GB
•写保护：通过寄存器的软件
•由YAFFS（Linux）或Datalight FlashFX®Pro支持
（VxWorks）在单独的许可下

MVME165

MVME165

Transition Modules The MVME7216E transition module provides industry standard connector access to two 10/100/1000BaseTX ports, and four asynchronous serial ports configured as RS-232 DTE. All of these are via RJ-45 connectors. The MVME7216E RTM is designed to directly connect to the VME backplane in chassis’ with an 80 mm deep rear-transition area. Software Support Firmware Monitor The MVME7100 firmware (known as MOTLoad) is resident in the MVME7100 flash and provides power-on self-test, initialization and operating system booting capabilities. In addition, it provides a debugger interface similar to the time proven “BUG” interface on previous VMEbus boards from Artesyn. Operating Systems and Kernels The MVME7100 series supports booting a variety of operating systems including a complete range of real-time operating systems and kernels. Artesyn Embedded Technologies Embedded Computing Linux (2.6.25 kernel) is available now. VxWorks BSPs (5.5.1 AMP, 6.8 SMP) are provided and supported by Wind River Systems. Specifications Processor • Microprocessor: NXP MPC864xD with dual PowerPC e600 cores • Clock Frequency: 1.06 or 1.3 GHz • On-chip L1 Cache (I/D): 32 K/32 K per core • On-chip L2 Cache: 1MB per core System Controller ƒ Integrated within MPC864xD Main Memory ƒ Type: Double data rate (DDR2) SDRAM ƒ Speed: DDR2-533 ƒ Capacity: 1GB or 2GB ƒ Configuration: Dual memory controller Flash Memory ƒ Type: NOR flash, on-board programmable • Capacity: 128MB • Write Protection: Hardware via switch, software via register or sector lock ƒ Type: NAND flash, on-board programmable • Capacity: 2GB, 4GB or 8GB • Write Protection: Software via register • Supported by YAFFS (Linux) or Datalight FlashFX® Pro (VxWorks) under separate license
