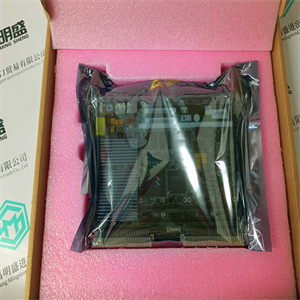

MVME172-373A模块备件

MVME172-373A

MVME7100添加：
性能和特点
同时保护所述表面
基本投资
在VMEbus和相关的
技术
ƒ高达1.3 GHz的片上系统
飞思卡尔MPC864xD，带
二重的
PowerPC®e600处理器
核心，双集成
存储器控制器
发动机
PCI Express接口，
以太网和本地I/O
ƒ扩展温度（-40℃）
至+71℃）
ƒ四个千兆以太网端口
ƒ高达2GB的DDR2 ECC
内存，128MB NOR闪存
以及4或8GB NAND闪存
ƒUSB 2.0控制器
整合成本效益
外围设备（商用）
仅限温度）
ƒ2eSST VMEbus协议
传输速率为320MB/s
跨越VMEbus
ƒ电路板支持包
VxWorks、LynxOS和Linux
ƒ双33/66/100MHz PMC-X
通过以下方式扩展的站点：
行业标准模块
支持处理器
私营军事公司
ƒ8x PCI Express扩展
PMC-X连接器和
XMC扩展使用
艾默生XMCspan
ƒMVME7216E直接连接
后过渡模块（RTM）
对于通过主机后部的I/O路由
VMEbus机箱
艾默生网络电源MVME7100是首批VMEbus产品之一
通过片上系统MPC864xD处理器，为VMEbus提供了增长路径
拥有上一代VME应用程序的客户，特别是
MPC74xx处理器。片上系统实现提供功率/热量，
在替代体系结构中通常不存在可靠性和生命周期优势。
艾默生MVME7100单板计算机（SBC）帮助工业、工业和工业领域的原始设备制造商，
医疗和国防/航空VMEbus平台增加了性能和功能
为了获得竞争优势，同时仍然保护对以下方面的基本投资：
VMEbus及相关技术。客户可以保留其VMEbus基础架构
（机箱、背板和其他VMEbus和PMC板），同时改进
性能和延长生命周期。此外，艾默生延长的生命周期
计算产品有助于减少开发和支持工作中的人员流失
这是由于频繁的产品更换造成的。
更快的处理器和2eSST VMEbus接口相结合，可显著提高性能。新的经济高效的外围设备可以使用
USB接口。
扩展温度（-40°C至+71°C）变体支持广泛的工作温度范围
以及储存温度，以及增加的冲击公差。这使得
要操作的板

MVME172-373A

MVME172-373A

The MVME7100 adds performance and features while protecting the fundamental investment in VMEbus and related technologies ƒ Up to 1.3 GHz system-on-chip Freescale MPC864xD with dual PowerPC® e600 processor cores, dual integrated memory controllers, DMA engine, PCI Express interface, Ethernet, and local I/O ƒ Extended temperature (-40 °C to +71 °C) ƒ Four Gigabit Ethernet ports ƒ Up to 2GB of DDR2 ECC memory, 128MB NOR flash and 4 or 8GB NAND flash ƒ USB 2.0 controller for integrating cost-effective peripherals (commercial temperature only) ƒ 2eSST VMEbus protocol with 320MB/s transfer rate across the VMEbus ƒ Board support packages for VxWorks, LynxOS, and Linux ƒ Dual 33/66/100MHz PMC-X sites for expansion via industry standard modules with support for processor PMCs ƒ 8x PCI Express expansion connector for PMC-X and XMC expansion using Emerson XMCspan ƒ MVME7216E direct-connect rear transition module (RTM) for I/O routing through rear of a VMEbus chassis The Emerson Network Power MVME7100, one of the first VMEbus products with the system-on-chip MPC864xD processor, offers a growth path for VMEbus customers with applications on the previous generation of VME, specifically the MPC74xx processors. The system-on-chip implementation offers power/thermal, reliability, and lifecycle advantages not typically found in alternative architectures. The Emerson MVME7100 single-board computer (SBC) helps OEMs of industrial, medical, and defense/aerospace VMEbus platforms add performance and features for competitive advantage while still protecting the fundamental investment in VMEbus and related technologies. Customers can keep their VMEbus infrastructure (chassis, backplanes, and other VMEbus and PMC boards) while improving performance and extending the lifecycle. Also, the extended lifecycle of Emerson computing products helps reduce churns in development and support efforts resulting from frequent product changes. The faster processor and 2eSST VMEbus interface combine to offer significant performance improvement. New cost-effective peripherals can be integrated easily using USB interfaces. Extended temperature (-40 °C to +71 °C) variants support a wide range of operating and storage temperatures in addition to increased tolerances for shock. This enables the boards to op
