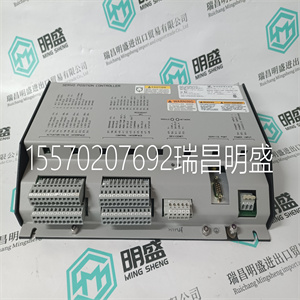

Woodward 9905-707模块备件

Woodward 9905-707

S900远程I/O系统与800xA或
通过PROFIBUS的其他控制器。适用于以下应用：
化学、制药、石油和天然气行业，S900 I/O
可安装在危险区域，从而降低编组和布线成本。进一步的维护节约可以是：
通过S900的扩展诊断和使用
符合HART®的现场设备。
有三个系列的S900 I/O可用：
− S系列适用于1区危险区域
− B系列适用于2区危险区域
− N系列适用于非危险区域
针对特定应用的其他解决方案可用：
− 现场外壳-用于墙壁安装和现场安装
1区安装，系统批准，完全认证
根据ATEX。档钢制外壳为：
准备用于墙壁安装，带有绝缘屏蔽设施
轨道或终端。
− CB220紧凑型箱-S900紧凑型（多4个
I/O模块）。此变体适用于应用
例如温度多路复用器和电磁阀电路。
系统800xA硬件
S900输入/输出
S900组件基于无源背板
适用于安装在DIN导轨上或直接安装在子配电板上。无源背板包括内部总线
通信，现场电路终端，通信，
和电源。功能模块插入
背板在其相应的插槽中。冗余背板
具有两个用于电源单元的插槽、两个用于通信接口的插槽和16个用于功能模块的插槽。数字的
功能模块多有8个通道，模拟模块多
到四点。因此，当使用冗余背板时，128
每个站可以连接数字或64个模拟信道。
对于S和B系列，多10个S900站可以
连接在单个现场总线线路上。
S900的主要优势包括：
− 本质安全-可安装在1区和2区。
− 良好的性价比，因为外部壁垒
并且在布线方面降低了成本，
安装、硬件和维护。
− 由于数据的平滑自动传输，可靠性
以及自动诊断。
− 使用FDT/DTM或GSD文件进行简单配置，
允许与800xA过程控制系统轻松集成。
− 由于运行期间所有组件的冗余和热插拔能力，设备的可用性。

Woodward 9905-707

Woodward 9905-707

The S900 remote I/O system communicates with 800xA or other controllers over PROFIBUS. Suitable for applications in the chemical, pharmaceutical, oil and gas industries, S900 I/O can be installed in hazardous areas, thereby reducing marshalling and wiring costs. Further maintenance savings can be achieved through S900’s extended diagnostics and the use of HART®-compliant field devices. Three series of S900 I/O are available: − S-series for applications in Zone 1 hazardous areas − B-series for applications in Zone 2 hazardous areas − N-series for applications in non hazardous areas Additional solutions for specific applications are available: − Field housing - for wall mounting and field mounting in Zone 1 installations with system approval fully certified in accordance with ATEX. The high-grade steel housing is prepared for wall-mounting with facility for insulated screen rails or terminals. − CB220 compact box - S900 in compact form (with up to 4 I/O modules). This variant is suitable for use in applications such as temperature multiplexers and solenoid valve circuits. System 800xA Hardware S900 I/O The S900 components are based on a passive backplane suitable for mounting on a DIN rail or directly in a sub-distribution board. The passive backplane includes internal bus communication, terminals for field circuits, communication, and power supply. The function modules are plugged into the backplane in their appropriate slots. The redundant backplane has two slots for power supply units, two slots for communication interfaces, and 16 slots for function modules. Digital function modules have up to 8 channels, analog modules up to four. Therefore, when using a redundant backplane, 128 digital or 64 analog channels can be connected per station. In the case of the S and B series, up to ten S900 stations can be connected on a single fieldbus line. Key S900 benefits include: − Intrinsically safe - can be installed in Zone 1 and Zone 2 areas. − Good price/performance ratio because external barriers have been removed and costs are reduced in terms of cabling, installation, hardware, and maintenance. − High reliability thanks to smooth automatic transfer of data and to auto-diagnostics. − Easy configuration using either FDT/DTM or GSD files, allowing easy integration with 800xA process control systems. − High availability of the plant thanks to redundancy and hotswap capability of all components during operation.
