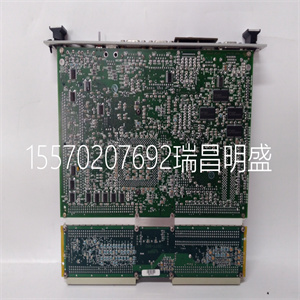

Woodward 9905-970模块备件

Woodward 9905-970

表B ControlNet状态解释
A和B
原因：行动：
关闭•无电源•无或向电脑通电
•PCIC驱动程序不是
起动
•启动PCIC驱动器
•验证PCIC驱动程序已
配置正确
•故障卡•检查操作系统事件日志
故障详情（如果是电脑的操作系统
支持事件日志）
•循环PC电源
•确认您已牢固插入PCIC
卡插入PCI本地总线扩展插槽，以及
膨胀槽螺钉已拧紧。
•如果故障依然存在，请联系代表
您购买此产品的地方。
稳定的红色•故障卡•断开电脑电源
•确认您已牢固插入PCIC
卡插入PCI本地总线扩展插槽，以及
膨胀槽螺钉已拧紧
•如果故障依然存在，请联系代表
您购买此产品的地方。
红色/绿色交替•自检•无
交替红色/关闭•节点不正确
配置
•重复
控制网节点
住址
•检查PCIC节点地址和其他
ControlNet配置参数
14 ControlNet PCI通信接口卡
9904-IN002A-US-P-2000年3月
表B ControlNet状态解释续
A或B
原因：行动：
关闭•频道
残废
•冗余程序网络
媒体，如果需要
稳定绿色•正常
活动
•无
闪烁绿色/关闭•临时
网络错误
•检查介质中的电缆是否断裂、松动
连接器、缺失的终端等。
•如果情况依然存在，请参阅控制网
国际规格。
闪烁红色/熄灭•介质故障•检查介质是否有电缆断裂、松动
连接器、缺失的终端等。
•如果情况依然存在，请参阅控制网
国际规格。
•无其他节点
出席
网络
•向网络中添加其他节点
闪烁的红色/绿色•节点不正确
住址
•更改PCIC节点地址，使其小于
或等于UMAX1
•停止并重新启动PCIC驱动程序
•不正确
网络
配置
•重新配置ControlNet网络，以便：
UMAX1大于或等于PCIC节点
住址
1 UMAX是ControlNet网络上可以传输数据的高节点地址。
ControlNet PCI通信接口卡15
9904-IN002A-US-P-2000年3月
CSA危险场所批准
以下警告适用于在危险场所使用的具有CSA认证的产品。
CSA徽标是加拿大标准协会的注册商标。
CSA认证产品可用于一般用途以及危险场所。实际CSA
认证由如下所示的产品标签指示，而不是任何
用户文档。
CSA认证产品标签示例
为了符合CSA认证，在危险场所使用，以下信息
成为该CSA认证工业控制产品的产品文献的一部分。
•该设备适用于1类、2类、A、B、C、D组或非危险类
仅限位置。
•具有适当CSA标记的产品（即，1类，2部分，A、B、C组，
C、 D）被认证用于其他设备，其中组合的适用性（即，
应用或使用）由CSA或具有管辖权的当地检查办公室确定。
重要提示：由于可编程控制系统的模块化特性，该产品具有
高温度额定值确定可编程的整体温度代码额定值
控制系统在一级，二级位置。温度代码额定值标记在
产品标签如图所示。
温度代码额定值
!
警告：爆炸危险
•替换部件可能会损害1类2类的适用性。
•除非电源已关闭或
已知该区域为非危险区域。
•除非电源已关闭或
已知该区域为非危险区域。
•除非电源已关闭或
已知该区域为非危险区域。固定任何用户提供的连接器
通过使用螺钉、滑动与该设备上的外部电路匹配
闩锁、螺纹连接器或其他方式，以便任何连接
能够承受施加的小15牛顿（3.4磅）分离力
一分钟。
•只能在b已知的区域更换电池

Woodward 9905-970

Woodward 9905-970

Table B ControlNet status interpretation A and B Cause: Action: off • no power • none or apply power to the PC • PCIC driver not started • start PCIC driver • verify that the PCIC driver has been configured properly • faulted card • check operating system event log for details of fault (if the PC’s operating system supports an event log) • cycle power to the PC • verify that you have firmly inserted the PCIC card into a PCI local bus expansion slot and that the expansion slot screw is tightened. • If fault persists, contact a representative where you purchased this product. steady red • faulted card • cycle power to the PC • verify that you have firmly inserted the PCIC card into a PCI local bus expansion slot and that the expansion slot screw is tightened • If fault persists, contact a representative where you purchased this product. alternating red/green • self-test • none alternating red/off • incorrect node configuration • duplicate ControlNet node address • check PCIC node address and other ControlNet configuration parameters 14 ControlNet PCI Communication Interface Card 9904-IN002A-US-P - March 2000 Table B ControlNet status interpretation continued A or B Cause: Action: off • channel disabled • program network for redundant media, if required steady green • normal operation • none flashing green/off • temporary network errors • check media for broken cables, loose connectors, missing terminators, etc. • If condition persists, refer to ControlNet International specifications. flashing red/off • media fault • check media for broken cables, loose connectors, missing terminators, etc. • If condition persists, refer to ControlNet International specifications. • no other nodes present on network • add other nodes to the network flashing red/green • incorrect node address • change PCIC node address so that it is less than or equal to UMAX1 • stop and restart the PCIC driver • incorrect network configuration • reconfigure the ControlNet network so that UMAX1 is greater than or equal to the PCIC node address 1 UMAX is the highest node address on a ControlNet network that can transmit data. ControlNet PCI Communication Interface Card 15 9904-IN002A-US-P - March 2000 CSA Hazardous Location Approval The following warnings apply to products having CSA certification for use in hazardous locations. CSA logo is a registered trademark of the Canadian Standards Association. CSA certifies products for general use as well as for the use in hazardous locations. Actual CSA certification is indicated by the product label as shown below, and not by statements in any user documentation. Example of the CSA certification product label To comply with CSA certification for use in hazardous locations, the following information becomes a part of the product literature for this CSA-certified industrial control product. • This equipment is suitable for use in Class 1, Division 2, Groups A, B, C, D, or non-hazardous locations only. • The products having the appropriate CSA markings (that is, Class 1, Division 2, Groups A, B, C, D), are certified for use in other equipment where the suitability of combination (that is, application or use) is determined by the CSA or the local inspection office having jurisdiction. Important: Due to the modular nature of a programmable control system, the product with the highest temperature rating determines the overall temperature code rating of a programmable control system in a Class1, Division 2 location. The temperature code rating is marked on the product label as shown. Temperature code rating ! WARNING: Explosion hazard • Substitution of components may impair suitability for Class 1, Division 2. • Do not replace components unless power has been switched off or the area is known to be non-hazardous. • Do not disconnect equipment unless power has been switched off or the area is known to be non-hazardous. • Do not disconnect connectors unless power has been switched off or the area is known to be non-hazardous. Secure any user-supplied connectors that mate to external circuits on this equipment by using screws, sliding latches, threaded connectors, or other means such that any connection can withstand a 15 Newton (3.4lb.) separating force applied for a minimum of one minute. • Batteries must be changed only in an area known to b
