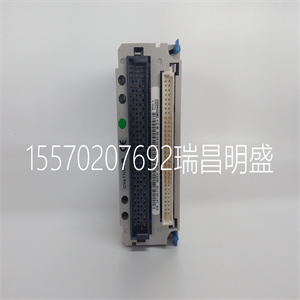

KJ4002X1-BF2模块备件

KJ2003X1-BA2

KJ1501X1-BC3系统双直流电源
危险大气
二、3g
Nemko编号07ATE3058U
EEx nAC IIC T4
Lo=20 uH
报警继电器能量受限现场电路参数：
Uo=30 VDC
Io=135 mA
Li=0
Ci=0
系统功率
输入
12伏直流电
24伏直流电
11.5 VDC至12.6 VDC
19.2 VDC至28.8 VDC
输出功率：70℃时总功率为10.2 W（组合
5 VDC和3.3 VDC的输出）
输出额定值：大13A至60C时为12VDC，或
大10 A至70 C的12 VDC（12 VDC
输入）
大8 A至60 C的12 VDC或
大6 A至70 C的12 VDC（24 VDC
输入）
2.0 A时的5.1 VDC
2.0 A时的3.4 VDC
环境规范
环境温度-40至70摄氏度
冲击10 G½-正弦波持续11 ms
从5 Hz到1 mm的峰间振动
至16 Hz，0.5 g从16 Hz至
150赫兹
空运的
污染物
ISA-S71.04–1985机载
G3类污染物
相对湿度：5%至95%，不凝结
注：序列号和
制造地点和日期。
警告：本产品具有以下特定说明：
危险环境中的安装、拆除和操作
地区。参考文件12P2046“DeltaV
可扩展工艺系统2区安装
其他安装说明包括
在“安装您的DeltaV自动化”中提供
系统”手册。
该电源的电压源为12 VDC
直通模式不能生成或包含
正常运行时，电位源超过
12.6伏直流电，大电流不超过16安。
移除和插入
此单元不能随系统一起移除或插入
电源已通电。
维护和调整
该装置不包含用户可维修部件，并且
不得因任何原因拆卸。
不需要校准。
其他安全批准

KJ2003X1-BA2

KJ2003X1-BA2
