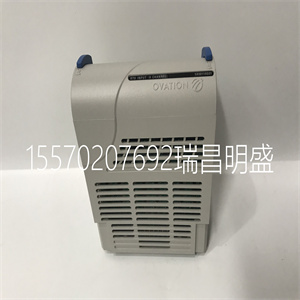

KJ4001X1-CG1模块备件

KJ4001X1-CG1

可能导致切换的事件包括。
„活动卡内的硬件故障。
„活动卡之间的通信故障
以及控制器。
„检测现场接线中的故障。
也可以从诊断中启动切换
以及两个卡的运行状况和状态，以及
它们的通道在诊断资源管理器中可用。
系统自动委托新的备用卡。
在安全区域，故障卡可以在电源下更换。
在危险区域，适当的安装程序
必须遵循。
硬件规格
所有I/O接口的通用环境规范
类别规格
工作温度*-40至70°C（-40至158°F）
储存温度-40至85°C（-40至185°F）
相对湿度5-95%，不冷凝
空气污染物ISA-S71.04-1985 G3类空气污染物
保形涂层
防护等级IP 20
冲击10 g½-正弦波持续11 ms
从5到16 Hz的1 mm峰间振动；
0.5 g，从16到150 Hz
尺寸H 10.7厘米（4.2英寸）
宽4.1厘米（1.6英寸）
深度10.5厘米（4.1英寸）
*在其温度范围的较高端长时间运行任何电子器件将缩短其预期寿命，
有关详细信息，请参阅机箱内的热量和气流影响白皮书。
DeltaV M系列传统I/O，2022年8月
www.emerson。com/deltav 5
模拟输入I/O卡
HART AI卡规格，8通道，4至20 mA
频道数：8
隔离：每个通道与系统光学隔离
并在1500V DC下进行工厂测试。
标称信号范围（跨度）4至20 mA
全信号范围1至22.5 mA，带超范围检查
单板卡的本地总线电流（标称12V DC）：典型为120mA，大为150mA
冗余：典型175 mA，大250 mA（每个卡）
24V直流（+10%）时，每个卡的现场电路功率大为300 mA
温度范围内的精度：量程的0.1%
分辨率16位A/D转换器
重复性：量程的0.05%
滚降频率在2.7 Hz时为-3 dB，在½采样频率时为-20.5 dB
校准：无需
可选保险丝2.0 A
AMS设备管理器现场通信支持HART直通
控制功能的设备变量和状态报告。
每个启用通道的Hart扫描时间为600–800 ms（典型）
s
高达50 KHz，使用多功能卡的高速
脉冲输入。
DeltaV系统提供控制模块级时间
日志事件和警报的标记。为了更大的事件
分辨率，16通道事件序列DI卡
可以提供分辨率为+/-0.25 ms的信号驱动事件
每个卡或每个控制器1ms内。请参阅
事件顺序PDS，以了解有关的详细信息
事件数据收集顺序和系统选项
对于此功能。
DeltaV M系列传统I/O，2022年8月
www.emerson。com/deltav 4
I/O卡冗余
冗余I/O卡可用于关键应用。
同一板卡可用于单工或冗余
应用。安装在双宽冗余终端上时
块，卡被识别为冗余对
控制器。控制器扫描每个卡并确定
卡用作活动接口。当检测到故障时，
系统自动切换到备用I/O卡。
DeltaV控制模块参考、单工和冗余
I/O通道相同，无特殊配置
需要利用冗余。
冗余I/O卡的切换在
I/O总线的两次扫描。先通后断触点，确保
数字现场仪器保持通电状态，且过程
不受干扰。模拟输出信号由以下驱动：
在板卡切换期间，两个板卡的时间均小于5 ms。
硬件警报自动报告硬件完整性错误
用于主卡和辅助卡。任何事件
原因：切换也会通过自动报告
系统硬件发出警报并记录在事件历史记录中。

KJ4001X1-CG1

KJ4001X1-CG1

Events that can cause a switchover include.
„ Hardware failure within the active card.
„ Communications failure between the active card
and the controller.
„ Detection of a fault in the field wiring.
A switchover may also be initiated from the diagnostics
explorer, and the health and status of both cards and
their channels are available in the diagnostics explorer.
The system automatically commissions a new standby card.
In safe areas, failed cards can be replaced under power.
In hazardous areas, appropriate installation procedures
must be followed.
Hardware Specifications
Common Environmental Specifications for all I/O Interfaces
Category Specifications
Operating Temperature* -40 to 70°C (-40 to 158°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative Humidity 5 to 95%, non-condensing
Airborne Contaminants ISA-S71.04-1985 Airborne Contaminants Class G3
Conformal coating
Protection Rating IP 20
Shock 10 g ½-sine wave for 11 ms
Vibration 1 mm peak-to-peak from 5 to 16 Hz;
0.5 g from 16 to 150 Hz
Dimensions H 10.7 cm (4.2 in.)
W 4.1 cm (1.6 in.)
Depth 10.5 cm (4.1 in.)
*Operating any electronics at the higher end of its temperature range for long periods of time will shorten its expected lifetime,
see Effects of Heat and Airflow Inside an Enclosure White Paper for more information.
DeltaV M-series Traditional I/O August 2022
www.emerson.com/deltav 5
Analog Input I/O Cards
Specifications for HART AI-Card, 8-channel, 4 to 20 mA
Number of Channels Eight
Isolation Each channel is optically isolated from the system
and factory tested to 1500V DC.
Nominal Signal Range (span) 4 to 20 mA
Full Signal Range 1 to 22.5 mA, with over range checking
LocalBus Current (12V DC nominal) per Card Simplex: 120 mA typical, 150 mA maximum
Redundant: 175 mA typical, 250 mA maximum (per card)
Field Circuit Power per Card 300 mA maximum at 24V DC (+10%)
Accuracy Over Temperature Range 0.1% of span
Resolution 16-bits A/D converter
Repeatability 0.05% of span
Roll-off Frequency -3 dB at 2.7 Hz, -20.5 dB at ½ the sampling frequency
Calibration None required
Optional Fuse 2.0 A
Communications Support HART pass-through for AMS Device Manager Field
device variable and status reporting for control functions.
Hart Scan Time 600 – 800 ms (typical) per enabled channel
s,
up to 50 KHz, use the Multi-Function card’s high speed
pulse input.
The DeltaV system provides control module level time
stamping for log events and alarms. For greater event
resolution, the 16-channel Sequence-of-Events DI card
can provide signal driven events to a resolution of +/- 0.25 ms
per card, or within 1 ms per controller. Please refer to
the Sequence-of-Events PDS for more information on
Sequence-of-Event data collection and system options
for this feature.
DeltaV M-series Traditional I/O August 2022
www.emerson.com/deltav 4
I/O Card Redundancy
Redundant I/O cards are available for critical applications.
The same card can be used in simplex or redundant
applications. When installed on a two-wide redundant terminal
block, the cards are recognized as a redundant pair by the
controller. The controller scans each card and determines which
card is acting as the active interface. When a fault is detected,
the system automatically switches to the standby I/O card.
DeltaV Control modules reference simplex and redundant
I/O channels identically and there is no special configuration
required to take advantage of redundancy.
Switchover of a redundant I/O card is completed within
two scans of the I/O bus. Make-before-break contacts ensure
digital field instruments remain powered and the process
is undisturbed. Analog output signals are briefly driven by
both cards for < 5 ms during switchover of the card.
Hardware Alerts automatically report hardware integrity errors
for both the primary and secondary cards. Any event that
causes a switchover is also reported automatically through the
system hardware alerts and is logged in the Event Chronicle.
