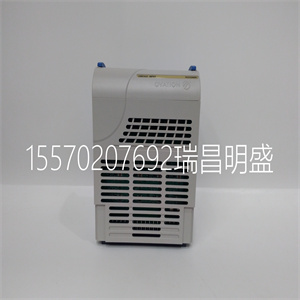

VE4002S1T1B3模块备件

VE4002S1T1B3

离散输出卡和接线板
描述型号
离散输出卡：8路24V直流，隔离
标准I/O接线盒VE4002S1T1B1
带保险丝的I/O接线盒VE4002S1T1B2
16引脚质量接线盒VE4002S1T1B3
离散输出卡：8路24V直流，高压侧
标准I/O接线盒VE4002S1T2B1
冗余标准I/O终端块VE4032S1T2B1
带保险丝的I/O接线盒VE4002S1T2B2
16引脚质量接线盒VE4002S1T2B3
10引脚质量接线盒VE4002S1T2B4
离散输出Plus卡：32通道，24 V直流，高压侧
系列2加上VE4002S2T2B8的32通道DO接线板
用于系列2和VE4032S2T2B8的冗余32通道DO接线盒
系列2 Plus的40针DO质量接线板（与DeltaV信号调节卡一起使用
对于PLC-5 DO，或P+F HiD/HiC IS屏障和DeltaV DCS的端子板）
VE4002S1T2B8
用于系列2 Plus的40引脚DO质量接线板，包括4 x 8通道DO质量连接板*VE4052S1T2B8
用于系列2 Plus的冗余40引脚DO质量接线盒（用于DeltaV信号调节
用于PLC-5 DO或P+F HiD/HiC IS屏障的板卡和用于DeltaV DCS的端子板）
VE4032S1T2B8
用于系列2 Plus的冗余40引脚DO质量接线板，包括4 x 8通道DO
质量连接板*
VE4082S1T2B8
离散输出卡：8通道115/230V交流，隔离
标准I/O接线盒VE4002S2T1B1
带保险丝的I/O接线盒VE4002S2T1B2
离散输出卡：8通道115/230V交流，高压侧
标准I/O接线盒VE4002S2T2B1
带保险丝的I/O接线盒VE4002S2T2B2
*有关质量连接板和连接电缆的更多详细信息，请参阅M系列质量连接解决方案PDS。
DeltaV M系列传统I/O，2022年8月
联系我们
www.emerson.com/contactus
©2022，艾默生。版权所有。
艾默生标志是艾默生电气公司的商标和服务标志。DeltaV标志是：
艾默生家族公司之一的标志。所有其他标记均为其财产
各自的所有者。
本出版物的内容仅供参考，而
我们已尽力确保其准确性，不应将其解释为保证
或关于本文所述产品或服务或其
使用或适用性。所有销售均受我们的条款和条件管辖，这些条款和条件可在
要求我们保留修改或改进产品设计或规格的权利
在没有通知的情况下随时。
备件订购信息
备件
描述型号
250V 2A保险丝，用于熔断接线盒；20 KJ4010X1-BC1箱
I/O模块压紧螺钉；20 KJ4010X1-BP2箱
控制器模块压紧螺钉；20 KJ4010X1-BP3箱

VE4002S1T1B3

VE4002S1T1B3

Discrete Output Cards and Termination Blocks
Description Model Number
Discrete Output Card: 8 Channels 24V DC, Isolated
Standard I/O Termination Block VE4002S1T1B1
Fused I/O Termination Block VE4002S1T1B2
16-Pin Mass Termination Block VE4002S1T1B3
Discrete Output Card: 8 Channels 24V DC, High-Side
Standard I/O Termination Block VE4002S1T2B1
Redundant Standard I/O Termination Block VE4032S1T2B1
Fused I/O Termination Block VE4002S1T2B2
16-Pin Mass Termination Block VE4002S1T2B3
10-Pin Mass Termination Block VE4002S1T2B4
Discrete Output Plus Card: 32 Channels, 24 V DC, High-Side
32-Channel DO Terminal Block for Series 2 Plus VE4002S2T2B8
Redundant 32-Channel DO Terminal Block for Series 2 Plus VE4032S2T2B8
40-pin DO Mass Termination Block for Series 2 Plus (to be used with DeltaV Signal Conditioning Cards
for PLC-5 DO, or P+F HiD/HiC IS barriers and terminal boards for DeltaV DCS)
VE4002S1T2B8
40-pin DO Mass Termination Block for Series 2 Plus including 4 x 8-channel DO Mass Connection Boards* VE4052S1T2B8
Redundant 40-pin DO Mass Termination Block for Series 2 Plus (to be used with DeltaV Signal Conditioning
Cards for PLC-5 DO, or P+F HiD/HiC IS barriers and terminal boards for DeltaV DCS)
VE4032S1T2B8
Redundant 40-pin DO Mass Termination Block for Series 2 Plus including 4 x 8-channel DO
Mass Connection Boards*
VE4082S1T2B8
Discrete Output Card: 8 Channels 115/230V AC, Isolated
Standard I/O Termination Block VE4002S2T1B1
Fused I/O Termination Block VE4002S2T1B2
Discrete Output Card: 8 Channels 115/230V AC, High-Side
Standard I/O Termination Block VE4002S2T2B1
Fused I/O Termination Block VE4002S2T2B2
*For more details on the Mass Connection Boards and connection cables, please refer to the M-series Mass Connection Solutions PDS.
DeltaV M-series Traditional I/O August 2022
Contact Us
www.emerson.com/contactus
©2022, Emerson. All rights reserved.
The Emerson logo is a trademark and service mark of Emerson Electric Co. The DeltaV logo is
a mark of one of the Emerson family of companies. All other marks are the property of their
respective owners.
The contents of this publication are presented for informational purposes only, and while
diligent efforts were made to ensure their accuracy, they are not to be construed as warranties
or guarantees, express or implied, regarding the products or services described herein or their
use or applicability. All sales are governed by our terms and conditions, which are available on
request. We reserve the right to modify or improve the designs or specifications of our products
at any time without notice.
Spare Part Ordering Information
Spare Parts
Description Model Number
250V 2A Fuse for Fused Terminal Block; Box of 20 KJ4010X1-BC1
I/O Module Hold-down Screw; Box of 20 KJ4010X1-BP2
Controller Module Hold-down Screw; box of 20 KJ4010X1-BP3
