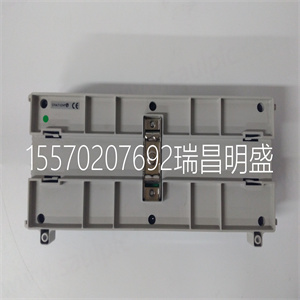

KJ6001X1-CA2模块备件

KJ6001X1-CA2

系统兼容性
Simplex Profibus DP传输速度和电缆长度
波特率（Kbit/sec）9.6 19.2 93.75 187.5 500 1500
距离/段1200m 1200m 1200mm 1000m 400m 200m
冗余Profibus DP传输速度和电缆长度
波特率（Kbit/sec）9.6 19.2 93.75 187.5 500 1500
距离/段N/A 1200m 1200m 1000m 400m 200m
M系列Profibus DP系列2 Plus接口卡
www.emerson。com/deltav 5
2020年4月
M系列Profibus DP接口规范
类别规格
储存温度-40至85°C（-40至185°F）
工作温度*-40至70°C（-40至158°F）
相对湿度5-95%，不冷凝
空气污染物ISA-S71.04-1985 G3类空气污染物
保形涂层
防护等级IP 20
冲击10 g½-正弦波持续11 ms
从5到16 Hz的1 mm峰间振动；
0.5 g，从16到150 Hz
可切换终端
端口数1
*在其温度范围的高端长时间运行任何电子设备将缩短其预期寿命，请参阅
更多信息，请参阅附件白皮书。
M系列Profibus DP系列2 Plus接口卡
www.emerson。com/deltav 6
2020年4月
所获证书
以下认证适用于M系列Profibus：
DP接口卡：
„CE：
EMC:EN 61326-1
„调频：
FM 3600
FM 3611
„CSA：
CSA C22.2213-M1987号
CSA C22.21010-1号
„ATEX：
EN60079-0
EN60079-7
„IEC Ex：
IEC60079-0
IEC60079-7
„海事认证：IACS E10
ABS设计评估证书
DNV-GL海事证书
危险区域/位置
可以安装和使用M系列Profibus DP接口卡
基于以下标准（参见实际证书
每个产品的准确产品标记）：
„FM（美国）：
一类，二类，A、B、C、D、T4组
„cFM（加拿大）：
一类，二类，A、B、C、D、T4组
„ATEX：
II 3G Ex ec IIC T4 Gc
„IEC Ex：
II 3G Ex ec IIC T4 Gc
关于安装说明，请参考以下文件：
DeltaV M系列12P12931类2部分安装说明
2区安装说明DeltaV M系列12P2046
M系列Profibus DP系列2 Plus接口卡2020年4月
爱默生
北美、拉丁美洲：
+1800 833 8314或
+1 512 832 3774
亚太地区：
+65 6777 8211
欧洲、中东：
+41 41 768 6111
www.emerson.com/deltav
©2020，艾默生。版权所有。
艾默生标志是艾默生电气公司的商标和服务标志。DeltaV标志是：
艾默生家族公司之一的标志。所有其他标记均为其财产
各自的所有者。
本出版物的内容仅供参考，而
我们已尽力确保其准确性，不应将其解释为保证
或关于本文所述产品或服务或其
使用或适用性。所有销售均受我们的条款和条件管辖，这些条款和条件可在
要求我们保留修改或改进产品设计或规格的权利
在没有通知的情况下随时。

KJ6001X1-CA2

KJ6001X1-CA2

System Compatibility
Simplex Profibus DP transmission speeds and cable lengths
Baud rate (Kbit/sec) 9.6 19.2 93.75 187.5 500 1500
Distance/segment 1200m 1200m 1200m 1000m 400m 200m
Redundant Profibus DP transmission speeds and cable lengths
Baud rate (Kbit/sec) 9.6 19.2 93.75 187.5 500 1500
Distance/segment N/A 1200m 1200m 1000m 400m 200m
M-series Profibus DP Series 2 Plus Interface Cards
www.emerson.com/deltav 5
April 2020
M-series Profibus DP Interface Specifications
Category Specifications
Storage Temperature -40 to 85 °C (-40 to 185 °F)
Operating Temperature* -40 to 70 °C (-40 to 158 °F)
Relative humidity 5 to 95%, non-condensing
Airborne contaminants ISA-S71.04-1985 Airborne Contaminants Class G3
Conformal coating
Protection rating IP 20
Shock 10 g ½-sine wave for 11 ms
Vibration 1 mm peak-to-peak from 5 to 16 Hz;
0.5 g from 16 to 150 Hz
Terminator Switchable
Number of ports 1
*Operating any electronics at the higher end of its temperature range for long periods of time will shorten its expected lifetime, see Effects of Heat and Airflow Inside an
Enclosure White Paper for more information.
M-series Profibus DP Series 2 Plus Interface Cards
www.emerson.com/deltav 6
April 2020
Certifications
The following certifications are available for M-series Profibus
DP Interface Card:
„ CE:
EMC: EN 61326-1
„ FM:
FM 3600
FM 3611
„ CSA:
CSA C22.2 No. 213-M1987
CSA C22.2 No. 1010-1
„ ATEX:
EN60079-0
EN60079-7
„ IEC-Ex:
IEC60079-0
IEC60079-7
„ Marine Certifications: IACS E10
ABS Certificate of Design Assessment
DNV-GL Marine Certificate
Hazardous Area/Location
M-series Profibus DP Interface Cards can be installed and used
based on the following Standards (see actual certificates for
exact product markings for each product):
„ FM (USA):
Class I, Division 2, Groups A, B, C, D, T4
„ cFM (Canada):
Class I, Division 2, Groups A, B, C, D, T4
„ ATEX:
II 3G Ex ec IIC T4 Gc
„ IEC-Ex:
II 3G Ex ec IIC T4 Gc
Regarding the Installation instructions please refer to the following Documents:
Class 1 Division 2 Installation Instructions DeltaV M-series 12P1293
Zone 2 Installation Instructions DeltaV M-series 12P2046
M-series Profibus DP Series 2 Plus Interface Cards April 2020
Emerson
North America, Latin America:
 +1 800 833 8314 or
 +1 512 832 3774
Asia Pacific:
 +65 6777 8211
Europe, Middle East:
 +41 41 768 6111
www.emerson.com/deltav
©2020, Emerson. All rights reserved.
The Emerson logo is a trademark and service mark of Emerson Electric Co. The DeltaV logo is
a mark of one of the Emerson family of companies. All other marks are the property of their
respective owners.
The contents of this publication are presented for informational purposes only, and while
diligent efforts were made to ensure their accuracy, they are not to be construed as warranties
or guarantees, express or implied, regarding the products or services described herein or their
use or applicability. All sales are governed by our terms and conditions, which are available on
request. We reserve the right to modify or improve the designs or specifications of our products
at any time without notice.
