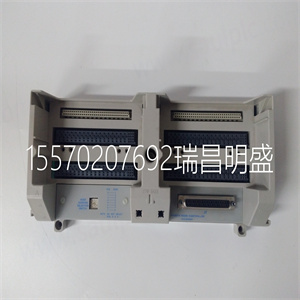

KJ4110X1-BC1模块备件

KJ4110X1-BC1

„在任何需要的地方输入/输出
„单通道粒度
„就地替换旧I/O
„完全冗余架构
„完全三角洲™ 解决方案
„即插即用I/O
三角洲™ CHARM I/O卡（CIOC）安装在迁移面板上。
DeltaV CHARM I/O基板迁移面板。
介绍
三角洲™ 电子编组提供了新的控制级别
系统I/O性能具有的灵活性和
易于使用。CHARM I/O卡（CIOC）支持多达
96个单独可配置的通道，安装时
水平地与遗留系统迁移结合使用
将允许直接替换内的旧硬件
现有机柜。现在，您可以迁移到DeltaV而无需
必须添加机柜、自定义电缆或额外编组。
所有通信都是完全冗余的
信道（CHARM）到DeltaV控制器。
利益
任何需要的I/O：DeltaV CIOC提供
控制系统I/O拓扑具有的灵活性。
现在，您可以将DeltaV I/O安装在与
用于直接1对1替换的传统I/O。不加
任何新的DeltaV硬件机柜，您都可以更换所有
遗留设备留下完整的DeltaV解决方案。
单通道粒度：魅力I/O架构
允许对每个单独的通道进行特征化
现场设备的要求。任何仪器信号都可以是
连接到任何接线板。然后，该频道是电子的
通过安装适当的符咒和分配
四个控制器之一的通道。传统I/O终端
不再是一个问题，因为有多种通道类型
来自单个终端面板。只要装上合适的符咒
以表征遗留面板上的I/O。不再
设计并将信号从单个传统面板分离到
多个DeltaV I/O卡。
DeltaV迁移电子编组2020年8月
www.emerson。com/deltav 2
就地替换传统I/O：DeltaV电子编组
它去了没有其他人的I/O可以去的地方。安装CHARMs迁移
面板上方、下方，甚至在传统终端前面
面板并将导线移动几英寸以完成迁移
到三角洲。因为CHARMs迁移面板是标准的
CHARMs基板，它与CIOC的对话与
通过电缆接口进行标准垂直安装。
这允许您以佳方式装载迁移面板
便于清洁系统切换的位置，无需
将输入/输出电缆“拉伸”到新的终端。作为补充
另外，如果布线允许，则垂直安装CHARMs
某些地区。现在，您可以在任何方向安装I/O
适合您当前的迁移布局和需求。
完全冗余通信：CIOC架构是
完全冗余。这从载波上的两个I/O卡开始。
运营商具有冗余通信模块，用于主
以及辅助网络连接。有两个24伏直流电
输入电源连接。载体连接到咒语
底板，并提供冗余电源和通信
去魅力的巴士。一切都是多余的，直到
单个频道。
完整的DeltaV解决方案：从遗留系统迁移
当完成时，你会有一个完整的感觉
DeltaV解决方案，不是标准和自定义的组合
支持的硬件/软件。迁移的每一部分
面板是标准的DeltaV硬件，可以支持
相同的人员和备用设备
CHARMs和DeltaV安装使用。
即插即用I/O:DeltaV CIOC的设计目的是：
在物理安装及其软件工具中易于使用。

KJ4110X1-BC1

KJ4110X1-BC1

„ I/O anywhere you need it
„ Single channel granularity
„ Replaces legacy I/O in place
„ Fully redundant architecture
„ Complete DeltaV™ solution
„ Plug and play I/O
DeltaV™ CHARM I/O Cards (CIOC) mounted on a Migration Panel.
DeltaV CHARM I/O Baseplate Migration Panel.
Introduction
DeltaV™ Electronic Marshalling delivers a new level of control
system I/O performance with unprecedented flexibility and
ease of use. The CHARM I/O card (CIOC) supports up to
96 individually configurable channels and when mounted
horizontally in conjunction with a legacy system migration
will allow for direct replacement of legacy hardware within
existing cabinets. Now you can migrate to DeltaV without
having to add cabinets, custom cables, or extra marshalling.
All communications are completely redundant from the
channel (CHARM) to the DeltaV controller.
Benefits
I/O anywhere you need it: The DeltaV CIOC provides
unprecedented flexibility in control system I/O topology.
Now you can mount your DeltaV I/O in the same space as your
legacy I/O for a direct 1-to-1 replacement. Without adding
any new cabinets of DeltaV hardware you can replace all your
legacy equipment leaving behind a complete DeltaV solution.
Single Channel granularity: The CHARM I/O architecture
allows each individual channel to be characterized for the
requirements of the field device. Any instrument signal can be
wired to any terminal block. The channel is then electronically
marshalled by installing the appropriate CHARM and assigning
the channel to one of four controllers. Legacy I/O terminations
are no longer a concern because of multiple channel types
from a single termination panel. Just install the proper CHARM
to characterize the I/O as found on the legacy panels. No more
engineering and splitting signals from a single legacy panel to
multiple DeltaV I/O cards.
DeltaV Electronic Marshalling for Migrations August 2020
www.emerson.com/deltav 2
Replaces legacy I/O in place: DeltaV Electronic Marshalling
goes where no one else’s I/O can. Install the CHARMs migration
panel above, below, or even in front of your legacy termination
panel and move your wires inches to complete your migration
to DeltaV. Since the CHARMs migration panel is a standard
CHARMs baseplate, it talks to the CIOC the same as the
standard vertical installation through the cable interface.
This allows you to mount the migration panel in the best
location to facilitate a clean system cutover and not have to
“stretch” your I/O cables to a new termination. As an added
bonus, install CHARMs vertical if your wiring allows for it in
certain areas. Now you can mount your I/O in any orientation
as best fits your current migration layout and needs.
Fully redundant communications: The CIOC architecture is
fully redundant. This starts with the two I/O cards on a carrier.
The carrier has redundant communication modules for primary
and secondary network connections. There are two 24 V DC
input power connections. The carrier connects to the CHARMs
Baseplates and provides redundant power and communication
buses to the CHARMs. Everything is redundant down to the
individual channel.
Complete DeltaV solution: Migrate from your legacy system
with the comfort that when complete you will have a complete
DeltaV solution, not a combination of standard and custom
hardware/software to support. Every piece of the migration
panel is standard DeltaV hardware and can be supported with
the same personnel and spare equipment that every other
CHARMs and DeltaV installation uses.
Plug and play I/O: The DeltaV CIOC has been designed for
ease of use, both in physical installation and its software tools.
