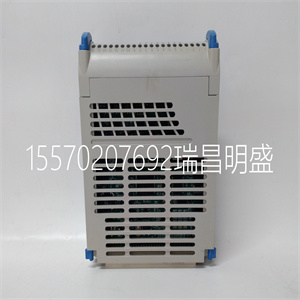

KJ7012X1-BA1模块备件

KJ7012X1-BA1

KJ7012X1-BA1

eltaV迁移电子编组2020年8月
www.emerson。com/deltav 8
IS CHARM基板迁移面板
环境规范
工作温度*-40至70°C（-40至158°F）
储存温度-40至85°C（-40至185°F）
相对湿度5-95%，不冷凝
防护等级IP 20
空气污染物ISA-S71.04-1985 G3类空气污染物
保形涂层
冲击10 g½-正弦波持续11 ms
5至13.2 Hz的1 mm峰间振动；
0.7 g，从13.2到150 Hz
不带通道标识符标签的尺寸
身高5.34英寸（13.6厘米）
深度6.45英寸（16.4厘米）
宽度19英寸（48.3厘米）
安装19英寸（48.3厘米）EIA导轨
3机架单元（U）高
带有通道标识符标签的尺寸
身高5.73英寸（14.6厘米）
深度6.45英寸（16.4厘米）
宽度19英寸（48.3厘米）
安装19英寸（48.3厘米）EIA导轨
3机架单元（U）高
*在其温度范围的较高端长时间运行任何电子器件将缩短其预期寿命，
有关详细信息，请参阅机箱内的热量和气流影响白皮书。
DeltaV迁移电子编组2020年8月
www.emerson。com/deltav 9
IS底板迁移面板，不带IS字符的通道标识符标签
IS基板迁移面板，带有IS字符的通道标识符标签
系统兼容性（可选）
参见DeltaV电子编组PDS和DeltaV IS
完整描述的电子编组PDS
具有魅力的兼容性。
认证（可选）
参见DeltaV电子编组PDS和DeltaV IS
完整描述的电子编组PDS
魅力认证。
DeltaV迁移电子编组2020年8月
www.emerson。com/deltav 10
订购信息
用于迁移的CHARM I/O卡
描述型号
具有铜以太网的冗余迁移CIOC2包括冗余对CHARM I/O卡2，
CHARM I/O载体，带螺丝端子，铜I/O端口，CHARMs底板扩展器，带底部
电缆连接器、底板标识符和隔离墙
SE6505T03
具有光纤以太网的冗余迁移CIOC2包括冗余对CHARM I/O卡2，
CHARM I/O载体，带螺钉端子、光纤I/O端口、CHARMs底板扩展器，带底部
电缆连接器、底板标识符和隔离墙
SE6505T04
CIOC小组的魅力与迁移
19英寸迁移面板，带DIN导轨，支持2个冗余迁移CIOC
SE6503T01
用于迁移的CHARM基板
描述型号
CHARMs迁移基板组件：
„两个魅力底板
„两个带螺丝端子的CHARM地址端子板
„24标准CHARM接线盒
„带电缆连接器的CHARM基板扩展器–顶部
„带电缆连接器的CHARM基板扩展器–底部
„19“带DIN导轨的迁移面板
„3基板标识符
SE4601T03
CHARMs Migration基板组件，带3线双熔合注入场电源：
„两个魅力底板
„两个带螺丝端子的CHARM地址端子板
„24个3线双熔断注入电源魅力接线盒
„带电缆连接器的CHARM基板扩展器–顶部
„带电缆连接器的CHARM基板扩展器–底部
„19“带DIN导轨的迁移面板
„3基板标识符
SE4601T10
CHARMs迁移基板组件，带熔合注入场功率：
„两个魅力底板
„两个带螺丝端子的CHARM地址端子板
„24熔断注入电源魅力接线盒
„带电缆连接器的CHARM基板扩展器–顶部
„带电缆连接器的CHARM基板扩展器–底部
„19“带DIN导轨的迁移面板
„3基板标识符
SE4601T04
CHARMs迁移基板面板：
19“迁移面板，带DIN导轨支架，用于2个CHARM基板和电缆延长线
KL4504X1-BA1
用于迁移的CHARM基板
描述型号
带有继电器输出的CHARMs迁移基板组件：
„两个魅力底板
„两个带螺丝端子的CHARM地址端子板
„24继电器输出CHARM接线盒
„带电缆连接器的CHARM基板扩展器–顶部
„带电缆连接器的CHARM基板扩展器–底部
„19“带DIN导轨的迁移面板
„3基板标识符

eltaV Electronic Marshalling for Migrations August 2020
www.emerson.com/deltav 8
IS CHARM Baseplate Migration Panel
Environmental Specifications
Operating Temperature* -40 to 70°C (-40 to 158°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative Humidity 5 to 95%, non-condensing
Protection Rating IP 20
Airborne Contaminants ISA-S71.04-1985 Airborne Contaminants Class G3
Conformal coating
Shock 10 g ½-sine wave for 11 ms
Vibration 1 mm peak-to-peak from 5 to 13.2 Hz;
0.7 g from 13.2 to 150 Hz
Dimensions without Channel Identifier Labels
Height 5.34 in (13.6 cm)
Depth 6.45 in (16.4 cm)
Width 19 in (48.3 cm)
Mounting 19 in (48.3 cm) EIA rails
3 Rack Units (U) high
Dimensions with Channel Identifier Labels
Height 5.73 in (14.6 cm)
Depth 6.45 in (16.4 cm)
Width 19 in (48.3 cm)
Mounting 19 in (48.3 cm) EIA rails
3 Rack Units (U) high
*Operating any electronics at the higher end of its temperature range for long periods of time will shorten its expected lifetime,
see Effects of Heat and Airflow Inside an Enclosure White Paper for more information.
DeltaV Electronic Marshalling for Migrations August 2020
www.emerson.com/deltav 9
IS Baseplate Migration Panel without Channel Identifier Labels for IS CHARMs
IS Baseplate Migration Panel with Channel Identifier Labels for IS CHARMs
System Compatibility (Optional)
See DeltaV Electronic Marshalling PDS and DeltaV IS
Electronic Marshalling PDS for a complete description
of CHARMs Compatibility.
Certifications (Optional)
See DeltaV Electronic Marshalling PDS and DeltaV IS
Electronic Marshalling PDS for a complete description
of CHARMs certification.
DeltaV Electronic Marshalling for Migrations August 2020
www.emerson.com/deltav 10
Ordering Information
CHARM I/O Cards for Migrations
Description Model Number
Redundant Migration CIOC2 with Copper Ethernet, includes redundant pair of CHARM I/O Card 2,
CHARM I/O Carrier with Screw Terminals, Copper I/O Ports, CHARMs Baseplate Extender with Bottom
Cable Connector, a Baseplate Identifier and a Separation Wall
SE6505T03
Redundant Migration CIOC2 with fiberoptic Ethernet, includes redundant pair of CHARM I/O Card 2,
CHARM I/O Carrier with Screw Terminals, Fiberoptic I/O Ports, CHARMs Baseplate Extender with Bottom
Cable Connector, a Baseplate Identifier and a Separation Wall
SE6505T04
CHARMs Migration CIOC Panel
19” Migration panel with DIN-rail support for 2 redundant migration CIOCs
SE6503T01
CHARM Baseplates for Migrations
Description Model Number
CHARMs Migration Baseplate Assembly:
„ Two CHARM Baseplates
„ Two CHARM Address Terminal Blocks with screw terminals
„ 24 Standard CHARM Terminal Blocks
„ CHARM Baseplate Extender with Cable Connectors – Top
„ CHARM Baseplate Extender with Cable Connectors – Bottom
„ 19” migration panel with DIN-rail
„ 3 Baseplate Identifiers
SE4601T03
CHARMs Migration Baseplate Assembly with 3-wire DI Fused-Injected Field Power:
„ Two CHARM Baseplates
„ Two CHARM Address Terminal Blocks with screw terminals
„ 24 3-wire DI Fused Injected Power CHARM Terminal Blocks
„ CHARM Baseplate Extender with Cable Connectors – Top
„ CHARM Baseplate Extender with Cable Connectors – Bottom
„ 19” migration panel with DIN-rail
„ 3 Baseplate Identifiers
SE4601T10
CHARMs Migration Baseplate Assembly with Fused-Injected Field Power:
„ Two CHARM Baseplates
„ Two CHARM Address Terminal Blocks with screw terminals
„ 24 Fused Injected Power CHARM Terminal Blocks
„ CHARM Baseplate Extender with Cable Connectors – Top
„ CHARM Baseplate Extender with Cable Connectors – Bottom
„ 19” migration panel with DIN-rail
„ 3 Baseplate Identifiers
SE4601T04
CHARMs Migration Baseplate Panel:
19” Migration panel with DIN-rail support for 2 CHARM Baseplates and Cable Extenders
KL4504X1-BA1
CHARM Baseplates for Migrations
Description Model Number
CHARMs Migration Baseplate Assembly with Relay Output:
„ Two CHARM Baseplates
„ Two CHARM Address Terminal Blocks with screw terminals
„ 24 Relay Output CHARM Terminal Blocks
„ CHARM Baseplate Extender with Cable Connectors – Top
„ CHARM Baseplate Extender with Cable Connectors – Bottom
„ 19” migration panel with DIN-rail
„ 3 Baseplate Identifiers
