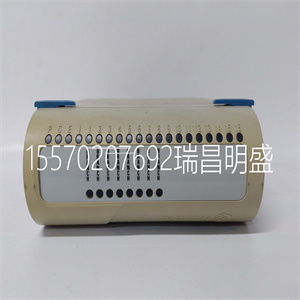

KJ7001X1-BA1模块备件

KJ7001X1-BA1

DeltaV迁移电子编组2020年8月
www.emerson。com/deltav 11
魅力是移民的基础吗
描述型号
IS CHARMs迁移基板组件：
„二是魅力底板
„二是CHARM地址端子板
„24是CHARM标准接线盒
„带电缆连接器的CHARM基板扩展器–顶部
„带电缆连接器的CHARM基板扩展器–底部
„19“带DIN导轨的迁移面板
„3底板隔墙
SE4608T02
重要注意事项：
IS魅力在维度上与非IS魅力不同。IS CHARM底板应安装在同一底座上
19“迁移面板比非S基板更大，因此IS魅力将比非IS魅力更突出19”框架45 mm！
CHARM I/O基板地址插头
描述型号
CHARM寻址插头，包括地址插头1至8 SE4602
CHARM寻址插头，包括SE4613中的地址插头1到4
先决条件
DeltaV电子编组硬件需要DeltaV v11.3.1或更高版本的软件。
CHARM I/O基板扩展器、终端和电缆
描述型号
CHARM底板扩展器，带电缆连接器，顶部（公型）
包括底板标识符和底板分隔墙
SE4603T05
CHARM底板扩展器，带电缆连接器，底部（内螺纹）
包括底板标识符和底板分隔墙
SE4603T06
CHARM基板终端，顶部（公）
包括底板标识符和底板分隔墙
SE4604T03
CHARM底板终端，底部（母型）
包括底板标识符和底板分隔墙
SE4604T04
CHARM底板电缆，包括两条0.5m电缆SE4605T02
CHARM底板电缆，包括两条1m电缆SE4605T03
CHARM底板电缆，包括两条2m电缆SE4605T04
每个垂直DIN导轨都需要一个DIN导轨挡块，以将基板锁定到位。订购VE4054DRS，这是一个5箱。
魅力是导火索吗
描述型号
CHARM I/O卡SE4610T01 24V直流电源的保险丝座和保险丝组件*
*当与IS CHARM基板一起使用时，其中两个保险丝组件必须与任何SE6501T03或SE6501T4一起订购
DeltaV迁移电子编组2020年8月
www.emerson。com/deltav 12
CHARM I/O标签和备件订购信息
CHARM I/O标签和备件
描述型号
CHARM底板的信道标识符标签；8包SE4606T02
Charm底板标识符；9包SE4606T03
250V 2A保险丝，用于熔断接线盒；20 KJ4010X1-BC1箱
CHARM I/O载体KJ4005X1-BF1的电源端子插头
I/O端口开关模块；铜对于CIOC载波KL1601X1-BA1
I/O端口开关模块；纤维对于CIOC运营商KL1602X1-BA1*
*光纤以太网I/O端口不可级联
CHARM I/O标签和备件订购信息
IS CHARM I/O标签和备件
描述型号
本质安全CHARM基板的通道标识符标签；8个SS4609T01的包装
是魅力底板隔墙；9套SS4609T02
SE4610T01保险丝座组件KL4510X1-FA1的更换保险丝
SE4610T01保险丝座组件KL4510X1-GA1的更换保险丝座
DeltaV迁移电子编组2020年8月
爱默生
北美、拉丁美洲：
+1800 833 8314或
+1 512 832 3774
亚太地区：
+65 6777 8211
欧洲、中东：
+41 41 768 6111
www.emerson.com/deltav
©2020，艾默生。版权所有。
艾默生标志是艾默生电气公司的商标和服务标志。DeltaV标志是：
艾默生家族公司之一的标志。所有其他标记均为其财产
各自的所有者。
本出版物的内容仅供参考，而
已尽力确保其准确性，不得将其解释为保证或
关于本文所述产品或服务或其
使用或适用性。所有销售均受我们的条款和条件管辖，这些条款和条件可在
要求我们保留修改或改进产品设计或规格的权利
随时

KJ7001X1-BA1

KJ7001X1-BA1
DeltaV Electronic Marshalling for Migrations August 2020
www.emerson.com/deltav 11
IS CHARM Baseplates for Migrations
Description Model Number
IS CHARMs Migration Baseplate Assembly:
„ Two IS CHARM Baseplates
„ Two IS CHARM Address Terminal Blocks
„ 24 IS CHARM Standard Terminal Blocks
„ CHARM Baseplate Extender with Cable Connectors – Top
„ CHARM Baseplate Extender with Cable Connectors – Bottom
„ 19” migration panel with DIN-rail
„ 3 Baseplate Separation Walls
SE4608T02
Important Note:
The IS CHARMs are dimensionally different than non-IS CHARMs. The IS CHARM Baseplates are supposed to be mounted on the same
19” migration panel than the non-S Baseplates, therefore the IS CHARMs will stick 45 mm further out of the 19” frame than non-IS CHARMs!
CHARM I/O Baseplate Address Plugs
Description Model Number
CHARM Addressing Plugs, includes Address Plugs 1 through 8 SE4602
CHARM Addressing Plugs, includes Address Plugs 1 through 4 SE4613
Prerequisites
DeltaV Electronic Marshalling hardware requires DeltaV v11.3.1 or later software.
CHARM I/O Baseplate Extender, Terminator and Cables
Description Model Number
CHARM Baseplate Extender with Cable Connectors, Top (Male)
includes a Baseplate Identifier and a Baseplate Separation Wall
SE4603T05
CHARM Baseplate Extender with Cable Connectors, Bottom (Female)
includes a Baseplate Identifier and a Baseplate Separation Wall
SE4603T06
CHARM Baseplate Terminator, Top (Male)
includes a Baseplate Identifier and a Baseplate Separation Wall
SE4604T03
CHARM Baseplate Terminator, Bottom (Female)
includes a Baseplate Identifier and a Baseplate Separation Wall
SE4604T04
CHARM Baseplate Cables, includes two 0.5m cables SE4605T02
CHARM Baseplate Cables, includes two 1m cables SE4605T03
CHARM Baseplate Cables, includes two 2m cables SE4605T04
Each vertical DIN-rail requires a DIN-rail stop to lock baseplates in position. Order VE4054DRS, which is a box of 5.
IS CHARM FUSE
Description Model Number
Fuse Holder and Fuse Assembly for 24V DC Power Supply of CHARM I/O CARD SE4610T01*
* Two of these Fuse Assemblies have to be ordered with any SE6501T03 or SE6501T04, when used with IS CHARM baseplates
DeltaV Electronic Marshalling for Migrations August 2020
www.emerson.com/deltav 12
CHARM I/O Labeling and Spare Part Ordering Information
CHARM I/O Labeling and Spare Parts
Description Model Number
Channel Identifier Labels for CHARM Baseplates; Package of 8 SE4606T02
Charm Baseplate Identifier; Package of 9 SE4606T03
250V 2A Fuse for Fused Terminal Block; Box of 20 KJ4010X1-BC1
Power Terminal Plug for CHARM I/O Carrier KJ4005X1-BF1
I/O Port Switch Module; Copper; for CIOC Carriers KL1601X1-BA1
I/O Port Switch Module; Fiber; for CIOC Carriers KL1602X1-BA1*
* Fiberoptic Ethernet I/O Ports are not cascadeable
IS CHARM I/O Labeling and Spare Part Ordering Information
IS CHARM I/O Labeling and Spare Parts
Description Model Number
Channel Identifier Labels for Intrinsically-Safe CHARM Baseplates; Package of 8 SS4609T01
IS Charm Baseplate Separation Wall; Package of 9 SS4609T02
Replacement Fuse for SE4610T01 Fuseholder Assembly KL4510X1-FA1
Replacement Fuseholder for SE4610T01 Fuseholder Assembly KL4510X1-GA1
DeltaV Electronic Marshalling for Migrations August 2020
