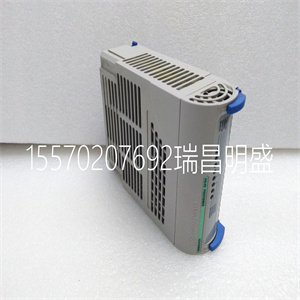

KJ4010X1-BG1模块备件

KJ4010X1-BG1

KJ1501X1-BC1系统双直流电源
危险大气
二、3g
Nemko No.02ATEX431U
EEx nC IIC T4
Lo=3.55 uH
报警继电器能量受限现场电路参数：
Uo=30 VDC
Io=135 mA
Li=0
Ci=0
系统功率
输入
12伏直流电
24伏直流电
11.4 VDC至12.6 VDC
22.8 VDC至25.2 VDC
输出功率：60°C时总计10 W（组合输出
5伏直流电和3.3伏直流电）
13.0 A时的输出额定值：+12 VDC（12 VDC输入）
+4.5 A时的12 VDC（24 VDC输入）
+2.0 A时的5 VDC
2.0 A时的3.3 VDC
环境规范
环境温度0至60°C
冲击10 G½-正弦波持续11 ms
从5 Hz到1 mm的峰间振动
至16 Hz，0.5 g从16 Hz至
150赫兹
空运的
污染物
ISA-S71.04–1985机载
G3类污染物
相对湿度：5%至95%，不凝结
注：序列号和
制造地点和日期。
警告：本产品具有以下特定说明：
危险环境中的安装、拆除和操作
地区。参考文件12P2046“DeltaV
可扩展工艺系统2区安装
其他安装说明包括
在“安装您的DeltaV自动化”中提供
系统”手册。
该电源的电压源为12 VDC
直通模式不能生成或包含
正常运行时，电位源超过
12.6伏直流电，大电流不超过16安。
移除和插入
此单元不能随系统一起移除或插入
电源已通电。
维护和调整
该装置不包含用户可维修部件，并且
不得因任何原因拆卸。
不需要校准。
其他安全批准

KJ4010X1-BG1

KJ4010X1-BG1

KJ1501X1-BC1 System Dual DC Power Supply
Hazardous Atmosphere
 II 3 G
Nemko No. 02ATEX431U
EEx nC IIC T4
Lo=3.55 uH
Alarm relay energy limited field circuit parameters:
 Uo = 30 VDC
 Io = 135 mA
 Li= 0
 Ci= 0
System Power
Input
12 VDC
24 VDC
11.4 VDC to 12.6 VDC
22.8 VDC to 25.2 VDC
Output Power: 10 W total at 60° C (combined outputs
of 5 VDC and 3.3 VDC)
Output rating: +12 VDC at 13.0 A (12 VDC input)
+12 VDC at 4.5 A (24 VDC input)
+5 VDC at 2.0 A
3.3 VDC at 2.0 A
Environmental Specifications
Ambient Temperature 0 to 60° C
Shock 10 G ½-sinewave for 11 ms
Vibration 1 mm peak-to-peak from 5 Hz
to 16 Hz, 0.5 g from 16 Hz to
150 Hz
Airborne
Contaminants
ISA-S71.04 –1985 Airborne
Contaminants Class G3
Relative Humidity 5% to 95% non-condensing
Note: See product label for serial number and
location and date of manufacture.
Warning: This product has specific instructions for
installation, removal and operation in hazardous
areas. Refer to document 12P2046 "DeltaV 
Scalable Process System Zone 2 Installation
Instructions". Other installation instructions are
available in the "Installing Your DeltaV Automation
System" manual.
The voltage source to this power supply in 12 VDC
passthrough mode must not generate or contain in
normal operation, a source of potential in excess of
12.6 VDC and supply no more than 16 A maximum.
Removal and Insertion
This unit cannot be removed or inserted with system
power energized.
Maintenance and Adjustment
This unit contains no user serviceable parts and
should not be disassembled for any reason.
Calibration is not required.
Other Safety Approval
