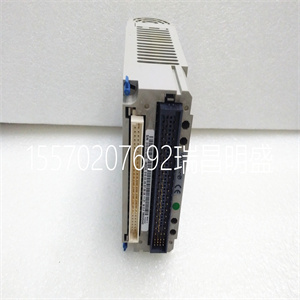

EV5000-4T0022G模块备件

EV5000-4T0022G

感谢您使用EV2000系列变速器
艾默生网络电力有限公司生产的驱动器。。
EV2000通过以下方式满足高性能要求：
使用独特的控制方法来实现高扭矩，
精度高，调速范围宽。它的
抗跳闸功能和适应能力
严重的电网、温度、湿度和灰尘
环境超过同类产品
其他公司，这提高了产品的可靠性
显著地；
EV2000集成了一般要求，
定制要求和行业要求
完美地它是一种具有实用PI的创新产品，
简单的PLC，灵活的输入和输出端子，脉冲
信号输入，在停机或断电时保存参数，
主/从参考控制，横向操作，固定
长度控制。它为OEM客户提供高
集成、可靠、经济高效的解决方案；
EV2000可以满足客户的低成本要求
通过使用优化的PWM技术和
EMC设计。
本手册提供了有关安装、接线和维护的信息，
参数设置、故障排除和每日
维修以确保正确安装和
驱动器的操作，请仔细阅读本手册
启动驱动器之前，请将其保存在安全的地方。
开箱检验
开箱后，请检查：
运输过程中发生的任何损坏；
检查铭牌上的额定值
驱动器符合您的命令。
我们的产品是在工厂制造和包装的
非常小心。如果有任何错误，请联系我们或
分销商。
用户手册如有更改，恕不另行通知
客户由于产品的连续过程
改进。
型号指定规则
EV2000-4 T 0055 G/0075 P
驱动系列
输入电压代码
三相T
伏特码
220V 2
380V 4
代码驱动类型
G固定扭矩P风机和泵
电机功率代码
千瓦
0055 5.5
0075 7.5
0110 11
0150 15
0185 18.5
0220 22
0300 30
0370 37
0450 45
0550 55
0750 75
0900 90
1100 110
1320 132
1600 160
2000 200
2200 220
2800 280
图A-1驱动模型说明
铭牌位于的右侧
散热器。内容如图A-2所示。条形码
塑料盖上还包含以下信息：
驱动，如图A-3所示。

EV5000-4T0022G

EV5000-4T0022G

Thank you for using EV2000 series Variable Speed
Drive made by Emerson Network Power Co., Ltd..
EV2000 satisfies the high performance requirements by
using a unique control method to achieve high torque,
high accuracy and wide speed-adjusting range. Its
anti-tripping function and capabilities of adapting to
severe power network, temperature, humidity and dusty
environment exceed those of similar product made by
other companies, which improves the product’s reliability
noticeably;
EV2000 has integrated the general requirements,
customized requirements and industrial requirements
perfectly. It is a innovative product with practical PI,
simple PLC, flexible input and output terminals, pulse
signal input, saving parameters at stop or power outage,
master/slave reference control, traverse operation, fixed
length control. It provides OEM customers with high
integrated, reliable, cost-effective solution;
EV2000 can satisfy the customers’ requirements on low
noise and EMI by using optimized PWM technology and
EMC design.
This manual provides information on installation, wiring,
parameter setting, trouble-shooting, and daily
maintenance. To ensure the correct installation and
operation of the drive, please read this manual carefully
before starting the drive and keep it in a safe place.
Unpacking Inspection
Upon unpacking, please check for:
Any damage occurred during transportation;
Check whether the rated values on the nameplate of the
drive are in accordance with your order.
Our product is manufactured and packed at factory with
great care. If there is any error, please contact us or
distributors.
The user manual is subject to change without notifying
the customers due to the continuous process of product
improvements.
Model designation rules
EV2000 -4 T 0055 G / 0075 P
Drive series
Input volt Code
3-phase T
Volt Code
220V 2
380V 4
Code Drive type
G Fixed torque P Fan & pump
Code Motor power
kW
0055 5.5
0075 7.5
0110 11
0150 15
0185 18.5
0220 22
0300 30
0370 37
0450 45
0550 55
0750 75
0900 90
1100 110
1320 132
1600 160
2000 200
2200 220
2800 280
Fig. A-1 Explanations of Drive Models
The nameplate is located on the right hand side of the
heatsink. The contents are shown in Fig.A-2. A barcode
on the plastic cover also contains the information of the
drive, as shown in Fig.A-3.
