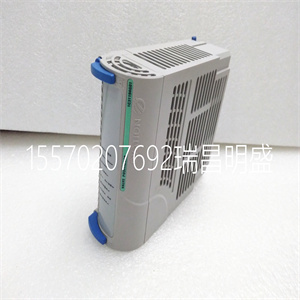

5X00105G07模块备件

5X00105G07

适用尺寸（mm）
驾驶
（kW）
直流模型
核反应堆
推荐
铜的尺寸
（mm2
)A、B、C、D、E、F、G、H、I、J直径
码头
总的
重量
（千克）
75克
90G/90P
TDL-4DI01-0900 60 190 160 125 161 120 80 10 250 280 25φ12 23
110G/110P TDL-4DI01-1100 100 190 160 125 161 120 80 10 250 280 25φ12 25
132G/132P TDL-4DI01-1320 150 200 170 135 171 120 85 10 260 280 30φ12 28
160G/160P TDL-4DI01-1600 150 210 180 135 171 130 85 12 280 320 30φ12 32
200G/200P 200
220G/220P
TDL-4DI01-2200
250
220 190 135 171 150 90 12 315 340 40 φ15 40
280P TDL-4DI01-2800 325 220 190 145 181 160 95 12 315 340 40φ15 45
笔记：
1.表2-6中B、C列为直流电抗器安装孔尺寸。
2.如果要安装在机柜内，直流电抗器应安装在机柜底部。反应堆之间的间隙
驱动器应至少为35cm，反应器应尽可能远离驱动器的进气口。
12第2章产品介绍
EV2000系列通用变速驱动用户手册
3.可选面板和安装盒
a） 操作面板b）安装箱（型号：EVF-KB02）
图2-4操作面板和安装箱
2.3可选部件
所有可选部件如下所示，请添加
如有需要，可订购。
2.3.1 LCD操作面板
型号：TDP-LCD03
语言：中文/英文可选
LCD操作面板可进行快速参数复制。
界面：如图2-5所示，界面分为
进入主显示区、操作说明区和
操作说明说明。
主显示区：显示状态、参数。
操作显示区：显示下一个操作，如果
有几个操作可供选择，操作
内容将逐一显示在该区域中。
操作说明：显示操作说明
“操作显示区”
频率设置模式
E/D参数
主显示区
操作显示区
频率集
E/D数据集
主显示区
操作显示区
图2-5 LCD显示界面
2.3.2制动套件
1.制动套件
TDB 4C01 0150
制动装置
伏特码
220V 2
380V 4
660V 6
密码
220V 2
380V 4
660V 6
发动机
权力
制动
配套元件
图2-6制动套件型号
2.制动电阻
TDB R01 0015
功率码
1.5kW 0015
3.0kW 0030
5.0kW 0050
密码
0400 2
0200 4
0100 6
电阻制动
配套元件
0400
制动
电阻
图2-7制动电阻模型说明
第2章产品介绍13
EV2000系列通用变速驱动用户手册
3.配置
表2-7制动套件和电阻器的规格
额定电机
功率（kW）
制动模型
电阻
工作时间比
制动套件至驱动器总成
工作时间（%）
制动
扭矩（%）
大限度
不断的
运行时间（s）
制动模型
配套元件
5.5-10 100 10内置
7.5-10 100 10内置
11 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
15 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
18.5 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
22 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
30 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
37 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
45 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
55 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
75 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
笔记
1.7.5kW或以下的驱动器内有一个制动套件。如果是动态的，则需要连接外部制动电阻器
需要制动，推荐电阻为1000W/100Ω。
2.90kW或以上的驱动器应使用多个并联连接的制动套件（TDB-4C01-0550）。
4.外形和安装尺寸
图2-8制动套件安装尺寸
表2-8制动套件安装尺寸（单位：mm）
制动模型
配套元件
A、B、C、D、E、格罗斯
重量
TDB-4C01-0150 254 143 144 240 100 3 kg
TDB-4C01-0300 254 143 144 240 100 3 kg
TDB-4C01-0550 254 130 170 240 126 4 kg
图2-9制动电阻安装尺寸
表2-9制动电阻安装尺寸
（单位：mm）
制动模型
电阻
A、B、C、D、E、F、Gross
重量
TDB-4R01-0015-0400 475 228 127 447 177 460 3 kg
TDB-4R01-0030-020 500 350 128 480 298 490 6 kg
TDB-4R01-0050-0100 540 520 170 520 470 530 8 kg
5.功能和接线
A、 电线连接、制动电阻和制动套件
14第2章产品介绍
EV2000系列通用变速驱动用户手册
R M
S
T
U
五、
W
体育课
(-) (+)
公共关系
P
N
助教
结核病
总费用
P
公共关系
TH1
TH2
制动单元制动电阻
EV2000
图2-10将制动套件连接到驱动器
TA-TB和TA-TC是继电器的触点，用于：
输出故障指示信号，TH1和TH2为
温度继电器触点（用于输出的继电器
过热指示信号）。
B、 制动套件的主要功能
制动激活电压可调；
防止制动占空比过大
电阻器；
散热器过热保护；
电源模块故障报警指示；
故障指示和故障继电器输出指示；
如果出现以下情况，制动电阻将自动断开：
过热，继电器将输出报警
信号

5X00105G07

5X00105G07

Applicable Size(mm)
drive
(kW)
Model of DC
reactor
Recommended
size of copper
（mm2
） A B C D E F G H I J Diameter
of terminal
Gross
weight
(kg)
75G
90G/90P
TDL-4DI01-0900 60 190 160 125 161 120 80 10 250 280 25 φ12 23
110G/110P TDL-4DI01-1100 100 190 160 125 161 120 80 10 250 280 25 φ12 25
132G/132P TDL-4DI01-1320 150 200 170 135 171 120 85 10 260 280 30 φ12 28
160G/160P TDL-4DI01-1600 150 210 180 135 171 130 85 12 280 320 30 φ12 32
200G/200P 200
220G/220P
TDL-4DI01-2200
250
220 190 135 171 150 90 12 315 340 40 φ15 40
280P TDL-4DI01-2800 325 220 190 145 181 160 95 12 315 340 40 φ15 45
     Notes:
1. Columns B and C in Table 2-6 are the sizes of mounting holes of DC reactor.
2. DC reactor should be installed at the bottom of the cabinet if it is to be installed inside a cabinet. The clearance between reactor
and the drive should be at least 35cm, and the reactor should be as far away from the air inlet port of the drive as possible.
12 Chapter 2 Product Introduction
EV2000 Series Universal Variable Speed Drive User Manual
3. Optional panel and mounting box

a) Operation panel b) Mounting box (Model: EVF-KB02)
Fig. 2-4 Operation panel and mounting box
2.3 Optional Parts
All the optional parts are given below, make additional
orders if needed.
2.3.1 LCD Operational Panel
Model:TDP-LCD03
Language: Chinese/English optional
LCD operation panel can perform fast parameter copy.
Interface: As shown in Fig. 2-5, the interface is divided
into main display area, operation instruction area and
explanations for operation instructions.
Main display area: Display the status, parameters.
Operation display area: Display the next operation, if
there are several operations for selection, the operation
contents will be displayed in this area one by one.
Explanations for operations: Display the explanations for
the “operation display area”
Freq. Set Mode
E/D Parameter
Main display area
Operation display area
FREQ SET
E/D DATA SET
Main display area
Operation display area
Fig. 2-5 LCD display interface
2.3.2 Braking Kits
1. Braking kit
TDB 4C01 0150
Braking unit
Volt Code
220V 2
380V 4
660V 6
Code
220V 2
380V 4
660V 6
Motor
power
Braking
kit
Fig. 2-6 Model of braking kit
2. Braking resistor
TDB R01 0015
Power Code
1.5kW 0015
3.0kW 0030
5.0kW 0050
Code
0400 2
0200 4
0100 6
Resistor Braking
Kit
0400
Braking
resistor
Fig. 2-7 Explanations of Model of braking resistor
Chapter 2 Product Introduction 13
EV2000 Series Universal Variable Speed Drive User Manual
3. Configurations
Table 2-7 Specifications of braking kit and resistor
Rated motor
power(kW)
Model of braking
resistor
Ratio of working time of
braking kit to drive’s total
working time (%)
Braking
torque (%)
Maximum
continuous
operating time(s)
Model of braking
kit
5.5 - 10 100 10 Built-in
7.5 - 10 100 10 Built-in
11 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
15 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
18.5 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
22 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
30 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
37 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
45 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
55 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
75 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
     Notes
1. There is a braking kit inside the 7.5kW drive or below. An external braking resistor is needed to be connected if dynamic
braking is required and the recommended resistor is 1000W/100Ω.
2. The 90kW drive or above should use several braking kits connected in parallel (TDB-4C01-0550).
4. Outline and installation sizes
Fig. 2-8 Installation dimensions of braking kit
Table 2-8 Installation dimensions of braking kit(unit: mm)
Model of braking
kit
A B C D E Gross
weight
TDB-4C01-0150 254 143 144 240 100 3 kg
TDB-4C01-0300 254 143 144 240 100 3 kg
TDB-4C01-0550 254 130 170 240 126 4 kg
Fig. 2-9 Installation dimensions of braking resistor
Table 2-9 Installation dimensions of braking resistor
 (unit: mm)
Model of braking
resistor
A B C D E F Gross
weight
TDB-4R01-0015-0400 475 228 127 447 177 460 3 kg
TDB-4R01-0030-0200 500 350 128 480 298 490 6 kg
TDB-4R01-0050-0100 540 520 170 520 470 530 8 kg
5. Functions and wiring
A. Wire connections braking resistor and braking kit
14 Chapter 2 Product Introduction
EV2000 Series Universal Variable Speed Drive User Manual
R M
S
T
U
V
W
PE
(-) (+)
PR
P
N
TA
TB
TC
P
PR
TH1
TH2
braking unit braking resistor
EV2000
Fig. 2-10 Connecting the braking kit to the Drive
TA-TB and TA-TC are contacts of relay used for
outputting fault indicating signal, and TH1 and TH2 are
contacts of temperature relay (relay used for outputting
over-heat indicating signal).
B. Main functions of braking kit
Activation voltage for braking is adjustable;
Protection against excessive duty-cycle of braking
resistor;
Overheat protection of heatsink;
Alarm indication for power module’s fault;
Fault indication and indication for fault relay output;
The braking resistor will be disconnected automatically if
it is over-heated and the relay will output alarming
signal.
The cables connected between the braking kit and the
drive, and those between the braking kit and braking
resistor should be less than 5m. If longer than 5m,
twisted-pair cable should be used and the maximum
length is 10m.
2.3.3 Communication Parts
1. Communication cables
A. Cables of operation panel
Model: TDC-CB0015(1.5m)
TDC-CB0030(3.0m)
The cables are used to connect the panel to the drive.
B. Communication cables of remote mounted keypad
Two models: FRC21W1(3.0m) FRC21W2(30m)
The cables are used to connect the remote mounted
keypad to the drive.
2. Remote mounted keypad
Model: TDO-RC02
It uses the same structure with operation panel of the
drive. It is easily to be installed and secured and
convenient for hand-held operation. Its display is similar
to the operation panel.
RS485 communication mode is used between the drive
and the remote mounted keypad. A 4-core cable is used
to connect the drive and the keypad, and the maximum
distance can be 1000m. Master/slave communication
mode is used. The keypad is the master and the drive is
the slave. Cable terminals can be secured by common
screws, which makes it convenient for maintenance.
One remote mounted keypad can control several drives
by connecting the communication cables of 485+ and
485- of each drive to form a RS485 network.
Functions:
1) Be able to control the start, stop, jog operation, fault
reset of slave drives and change the frequency settings
and operation direction.
2) Identify the type of slave machine automatically. Be
able to monitor the operating frequency, frequency
setting, output voltage and current, analog close-loop
feedback, analog close-loop setting and external
counting value automatically.
3. Fieldbus adapter
Model: TDS-PA01
Be able to connect ENYDRIVE drive to PROFIBUS
network via the TDS-PA01 fieldbus adapter. In the
PROFIBUS network system, the drive operates as a
slave.
Functions:
