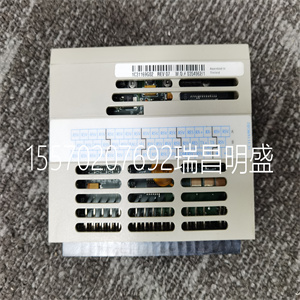

VE4036P2模块备件

VE4036P2

Category Terminal Name Functions Specifications
P24 +24V power supply Provide +24V power supply for
external equipment.
Maximum output current:
200mA
PLC
Common terminal of
multi-function input
terminal
Common terminal of multi-function
input terminal (short circuit with P24)
Common terminal of X1~X8.,
FWD and REV. PLC is isolated
with P24.
COM Common terminal of
+24V power supply
Total 3 common terminals, which are
used in conjunction with other
terminals.
Power
supply
CME Common terminal of Y1
and Y2 output
Common terminal of multi-function
Y1 and Y2 output
(Short circuit with COM by
manufacturer)
COM is isolated with CME and
GND.
Shielding PE Shielded GND Grounding terminal connected to
shielding layer
Connected to PE inside the
drive
1) Wire connections multi-function input terminals,
terminals FWD and REV:
EV2000 multi-function input terminal uses a full-bridge
rectifying circuit as shown in Fig. 3-. PLC is the common
terminal of terminals X1~X8, FWD and REV. The current
flows through terminal PLC can be pulling current, and
also the feeding current. Wire connections X1~X8, FWD
and REV is flexible and the typical wiring is shown
below:
A) Method 1 of connections (Dry contacts)
①If internal 24V power supply is used, the wiring is
shown in Figure 3-22.
+24V
X1、X2 . . . X8
FWD、REV
PLC
EV2000
+5V
COM
P24
R
+
- K
power
source
Fig. 3-22 Using internal 24V power supply
②If an external power supply is used, then use the Wire
connections shown in Fig. 3-23. (be sure to disconnect
the cable between P24 and PLC)
power
+24V
X1、X2 . . . X8
FWD、REV
PLC
EV2000
+5V
COM
P24
R
DC +
 -
K
+
-
Fig. 3-23 Using an external supply
B). Method 2 of connections
①Drive’s internal +24V power supply is used and the
external controller uses NPN transistors whose common
emitters are connected, as shown in Figure 3-24.
shielded cable's end near the drive
should be connected to the PE
●
COM
EV2000
PE●
1 ●
PLC
FWD
●
●
●
P24
COM
●
●
24V DC
D2
+
 -
5V
10● ● X8
5V
External controller
Fig. 3-24 Method 2 of connections(a)
30 Chapter 3 Installation and Wiring
EV2000 Series Universal Variable Speed Drive User Manual
②Drive’s internal +24V power supply is used and the
external controller uses PNP transistors whose common
emitters are connected, as shown in Figure 3-25
●
●
●
●
●
●
●
●
● ●
●
COM
EV2000
PE
1
PLC
FWD
P24
COM 24V DC
D2
+
 -
5V
10 X8
5V
External controller
shielded cable's end near the drive
should be connected to the PE
Fig. 3-25 Method 2 of connections(b)
③Use external power supply:
●
●
●
●
●
●
●
●
● ●
9~30V +
-
ground the shield near the drive
EV2000
PE
1
PLC
FWD
P24
COM 24V DC
D2
+
-
5V
10 X8
5V
External controller
Fig. 3-26 Method 2 of connections(c)
④Use external power supply:
●
●
●
●
●
●
●
●
● ●
9~30V+
-
EV2000
PE
1
PLC
FWD
P24
COM 24V DC
D2
+
 -
5V
10 X8
5V
shielded cable's end near the drive
should be connected to the PE
External controller
Fig. 3-27 Method 2 of connections (d)
2) Wire connections of multi-function output terminal
①Multi-function output terminals Y1 and Y2 can use the
24V power supply inside the drive and the wiring mode
is shown in Figure 3-28..
EV2000 COM
P24
+5V
+24V
CME
Y1,Y2
Relay
R
Fig. 3-28 Wire connections 1 of multi-function output terminal
②Multi-function output terminals Y1 and Y2 can also
use the 9~30V power supply outside the drive and the
wiring mode is shown in Fig.3-29.
DC 9～30V
EV2000 COM
CME
Y1,Y2
P24
+5V
+24V
+ -
Relay
Fig. 3-29 Wire connections 2 of multi-function output
terminal
③Pulse output terminal DO can use the 24V power
supply inside the drive and the wiring is shown in
Fig.3-30.
Chapter 3 Installation and Wiring 31
EV2000 Series Universal Variable Speed Drive User Manual
EV2000 +24V
P24
4.7K
DO
COM
+5V +24V
Digital
frequency
meter
Fig. 3-30 Wiring 1 of output terminal DO
④Pulse output terminal DO can also use the external
9~30V power supply and the wiring is shown in Fig.3-31.
EV2000 +24V
P24
DO 4.7K
COM
+5V +24V
Digital frequency
meter
9～30V
+
-
Fig. 3-31 Wiring 2 of output terminal DO
3) Wiring relay output terminals TA, TB and TC.
If the drive drives an inductive load (such as relay or
contactor), then a surge suppressing circuit should be
added, such as RC snub circuit (pay attention that the
leakage current must be smaller than the holding current
of the controlled relay or contactor) and varistor or a
free-wheeling diode (used in the DC electric-magnetic
circuit and pay attention to the polarity during
installation). Snubbing components should be as close
to the coils of relay or contactor as possible.
     Notes:
1. Don’t short circuit terminals P24 and COM, otherwise
the control board may be damaged.
2. Please use multi-core shielded cable or multi-stranded
cable(above 1mm) to connect the control terminals.
3. When using a shielded cable, the shielded layer’s end
that is nearer to the drive should be connected to PE.
4. The control cables should be as far away(at least 20cm)
from the main circuits and high voltage cables as possible
(including power supply cables, motor cables, relay cables
and cables of contactor). The cables should be vertical to
each other to reduce the disturbance to minimum.
5. The resistors R in Fig. 3-27 and Fig.3-28 should be
removed for 24V input relays, and the resistance of R
should be selected according the parameters of relay for
non-24V relay.
3.4 Installation Methods Compliant With
EMC Requirements
The drive inevitably generates noise due to its high
switching frequency, so relevant EMC problems must be
solved so as to reduce the drive’s disturbance to
external equipment. This chapter deals with the
installation methods compliant with EMC requirements
from the aspects of noise suppression, field wiring,
grounding, leakage current and the using of power filter.
This chapter can be used as a reference for field
installation.
3.4.1 Noise Suppressing
The noise generated by the drive may disturb the
equipment nearby. The degree of disturbance is
dependent on the drive system, immunity of the
equipment, wiring, installation clearance and earthing
methods.
1. Noise categories
