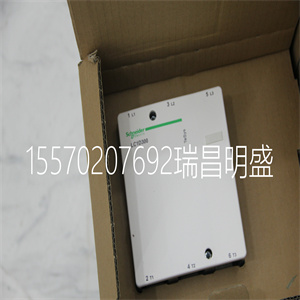

140AII33000模块备件

140AII33000

主要的
产品范围Modicon Quantum自动化平台
产品或组件
类型
VAC离散输入模块
软件名称概念
ProWORX 32
Unity Pro
离散输入数16
互补的
信道组16
寻址要求1输入字
离散输入电压115 V AC
输入电流<=13.2 mA 47…53 Hz
<=11.1 mA 57…63 Hz
电压状态1在47…53 Hz下保证85…132 V AC
79…132 V交流，57…63 Hz
电压状态0保证0…20 V AC，47…53 Hz
0…20 V交流，57…63 Hz
输入阻抗14400欧姆，47…53赫兹时为电容性
在57…63 Hz下的12000欧姆电容
网络频率限制47…63 Hz
漏电流<=2.1 mA
对大输入200 V 1周期
156伏10秒
132 V连续
响应时间7.3…12.3毫秒开-关
4.9…0.75毫秒x线循环关闭打开
通道1780 VRM之间隔离1分钟
通道和总线1780 Vrms之间隔离1分钟
母线电流要求180 mA
功耗（W）<=5.5 W
本地信号16个LED绿色输入状态
检测到1个LED红色外部故障（F）
1 LED绿色总线通信为pr主要的
产品范围Modicon Quantum自动化平台
产品或组件
类型
VAC离散输入模块
软件名称概念
ProWORX 32
Unity Pro
离散输入数16
互补的
信道组16
寻址要求1输入字
离散输入电压115 V AC
输入电流<=13.2 mA 47…53 Hz
<=11.1 mA 57…63 Hz
电压状态1在47…53 Hz下保证85…132 V AC
79…132 V交流，57…63 Hz
电压状态0保证0…20 V AC，47…53 Hz
0…20 V交流，57…63 Hz
输入阻抗14400欧姆，47…53赫兹时为电容性
在57…63 Hz下的12000欧姆电容
网络频率限制47…63 Hz
漏电流<=2.1 mA
对大输入200 V 1周期
156伏10秒
132 V连续
响应时间：7.3…12.3a ms开-关
4.9…0.75毫秒x线循环关闭打开
通道1780 VRM之间隔离1分钟
通道和总线1780 Vrms之间隔离1分钟
母线电流要求180 mA
功耗（W）<=5.5 W
本地信号16个LED绿色输入状态
检测到1个LED红色外部故障（F）
1 LED绿色总线通信为pr

140AII33000

140AII33000

Main
Range of product Modicon Quantum automation platform
Product or component
type
VAC discrete input modules
Software name Concept
ProWORX 32
Unity Pro
Discrete input number 16
Complementary
Group of channels 16
Addressing requirement 1 input word
Discrete input voltage 115 V AC
Input current <= 13.2 mA 47...53 Hz
<= 11.1 mA 57...63 Hz
Voltage state1 guaranteed 85...132 V AC at 47...53 Hz
79...132 V AC at 57...63 Hz
Voltage state 0 guaranteed 0...20 V AC at 47...53 Hz
0...20 V AC at 57...63 Hz
Input impedance 14400 Ohm capacitive at 47...53 Hz
12000 Ohm capacitive at 57...63 Hz
Network frequency limits 47...63 Hz
Leakage current <= 2.1 mA
Absolute maximum input 200 V 1 cycle
156 V 10 s
132 V continuous
Response time 7.3...12.3a ms On-Off
4.9...0.75 ms x line cycle Off-On
Isolation between channels 1780 Vrms for 1 minute
Isolation between channels and bus 1780 Vrms for 1 minute
Bus current requirement 180 mA
Power dissipation in W <= 5.5 W
Local signalling 16 LEDs green input status
1 LED red external fault detected (F)
1 LED green bus communication is prMain
Range of product Modicon Quantum automation platform
Product or component
type
VAC discrete input modules
Software name Concept
ProWORX 32
Unity Pro
Discrete input number 16
Complementary
Group of channels 16
Addressing requirement 1 input word
Discrete input voltage 115 V AC
Input current <= 13.2 mA 47...53 Hz
<= 11.1 mA 57...63 Hz
Voltage state1 guaranteed 85...132 V AC at 47...53 Hz
79...132 V AC at 57...63 Hz
Voltage state 0 guaranteed 0...20 V AC at 47...53 Hz
0...20 V AC at 57...63 Hz
Input impedance 14400 Ohm capacitive at 47...53 Hz
12000 Ohm capacitive at 57...63 Hz
Network frequency limits 47...63 Hz
Leakage current <= 2.1 mA
Absolute maximum input 200 V 1 cycle
156 V 10 s
132 V continuous
Response time 7.3...12.3a ms On-Off
4.9...0.75 ms x line cycle Off-On
Isolation between channels 1780 Vrms for 1 minute
Isolation between channels and bus 1780 Vrms for 1 minute
Bus current requirement 180 mA
Power dissipation in W <= 5.5 W
Local signalling 16 LEDs green input status
1 LED red external fault detected (F)
1 LED green bus communication is pr
