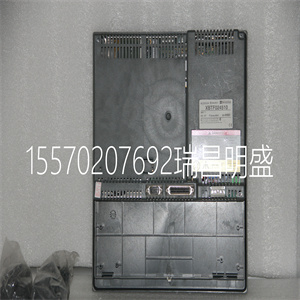

140SHS94500模块备件

140SHS94500

Profibus-DP通信模块
高达12 MBit/s的Profibus DP主机
一个CPU多可同时操作4个CM572-DP模块
无需外部电源
类型接口目录编号重量
1件/千克
CM572-DP子D插座1SAP 170 200 R0001
通信模块DeviceNet
类型接口连接器目录号重量
1件/千克
CM575-DN插入式弹簧类型，2006年上市
端子排端子
通信模块CANopen
类型接口连接目录编号重量
1件/千克
CM578-CN插入式弹簧类型，2006年上市
端子排端子
终端基地
用于安装和连接CPU和通信模块
1至4个插入式通信模块
集成在CPU中的通信耦合器的连接
I/O接口，可直接连接多达7个扩展模块
现场总线中性点现场总线插头从接口
连接COM1：带可插拔接线板的9极
连接COM2：9极子D（插座）
类型
数量
目录号的连接
重量耦合器槽耦合器集成在CPU中1个/kg
TB511-ETH 1以太网RJ45 1SAP 111 100 R0170
TB521-ETH 2以太网RJ45 1SAP 112 100 R0170 0.215
TB541-ETH 4以太网RJ45 1SAP 114 100 R0170
TB521-ARCNET 2 ARCNET同轴电缆，2006年上市
总自动化（877）268-3700·www.abplc。com·sales@grossautomation.com
4.
4.
4.18低压产品和系统
AC500可编程逻辑控制器
排序数据
1继电器输出，转换触点
接口模块
对于分散的I/O
DC505-FBP通过现场总线插头与Profibus DP、CANopen、DeviceNet、Modbus通信
需要现场总线相关的现场总线插头
DC551-CS31通过与CS31系统总线的集成接口进行通信
插入式电子模块，需要端子排TU5xx
直流：通道可单独配置为输入或输出
输入信号类型、输出信号编号、目录编号、重量
DI/DO/DC 1个/kg
DC505-FBP 8/-/8 24V直流变压器。24 V直流，0.5 A 1SAP 220 000 R0001 0.3
DC551-CS31 8/-/16 24V直流变压器。24伏直流，0.5安，2006年可用0.3
二进制输入/输出模块
用于AC500 CPU的中央扩展
用于结合接口模块DC505-FBP或DC551-CS31进行分散扩展
插入式电子模块，需要端子排TU5xx
直流：通道可单独配置为输入或输出
输入继电器数量/重量型DI/DO/DC信号晶体管-输出信号目录号1个/kg输出
DI524 32/-/-24 V直流电-1SAP 240 000 R0001
DC532 16/-/16 24 V直流晶体管24 V直流，0.5 A 1SAP 240 100 R0001
DX522 8/8/-24 V直流继电器230 V交流，3 A 1 1SAP 245 200 R0001
DX531 8/4/-230 V交流继电器，230 V交流，3 A 1 1SAP 245000 R0001
模拟输入/输出模块
用于AC500 CPU的中央扩展
用于结合接口模块DC505-FBP或DC551-CS31进行分散扩展
插入式电子模块，需要TU5xx
可为每个通道单独配置的范围
分辨率12位+符号
输入信号类型、输出信号编号、目录编号、重量
AI/AO 1个/kg
AX522 8/8 0…10 V，±10 V±10 V 1SAP 250 000 R0001
0/4…20 mA 0/4
Pt100、Pt1000（大4电流
Ni1000输出）
总自动化（877）268-3700·www.abplc。com·sales@grossautomation.com
4.
4.
AC500可编程逻辑控制器
低压产品和系统4.19
排序数据
终端设备
用于二进制和模拟扩展模块和接口模块
请注意：对于具有继电器输出的模块，端子单元用于230 V AC
（TU531/TU532）是必需的！
有关模块到终端单元的分配，请参阅表！
TU505、TU506、TU515、TU516、TU531、TU532、TU551、TU552
螺旋弹簧螺旋弹簧螺旋螺旋弹簧
DC505-FBP x x
DC551-CS31 x x
DI524 x x
DC532 x x
DX522 x x
DX531 x x
AX522 x x
供应连接类型、目录号、重量
1件/千克
TU505 FBP接口模块螺钉端子1SAP 210 200 R0001 0.2
TU506 FBP接口模块弹簧端子1SAP 210 000 R0001 0.2
TU515输入/输出模块24 V直流螺纹端子1SAP 212 200 R0001 0.2
TU516输入/输出模块24 V直流弹簧端子1SAP 212 000 R0001 0.2
TU531输入/输出模块交流/继电器230 V交流螺丝端子1SAP 217 200 R0001 0.2
TU532输入/输出模块交流/继电器230 V交流弹簧端子1SAP 217 000 R0001 0.2
TU551 CS31接口模块24 V直流螺纹端子1SAP 210 600 R0001 0.2
TU552 CS31接口模块24 V直流弹簧端子1SAP 210 400 R0001 0 2
AC500的附件
描述类型、目录号、重量
1件/千克
TK501 CPU AC500编程电缆子D/子D 1SAP 180 200 R0001
COM2长度5米
TK502 CPU AC500编程电缆Sub-D/1SAP 180 200 R0101
COM1接线盒，长度5 m
MC502 CPU AC500存储卡（SD卡）128 MB 1SAP 180 100 R0001
TA521 CPU AC500锂电池用于数据缓冲1SAP 180 300 R0001
TA523输入/输出模块可插拔标记架（10个）1SAP 180 500 R0001
TA524终端基地虚拟通信模块1SAP 180 600 R0001
TA525一套10个白色塑料标记1SAP 180 700 R0001
TA526背板安装用CPU端子附件1SAP 180 800 R0001
底座（10个）
编程包

140SHS94500

140SHS94500

Communication module Profibus DP
Profibus DP Master up to 12 MBit/s
A maximum of 4 CM572-DP modules can be operated simultaneously at one CPU
No external power supply required
Type Interface Catalog number Weight
 1 pc./kg
CM572-DP Sub-D socket 1SAP 170 200 R0001
Communication module DeviceNet
Type Interface Connector Catalog number Weight
 1 pc./kg
CM575-DN Plug-in Spring-type available 2006
 terminal block terminals
Communication module CANopen
Type Interface Connection Catalog number Weight
 1 pc./kg
CM578-CN Plug-in Spring-type available 2006
 terminal block terminals
Terminal base
For mounting and connecting the CPUs and communication modules
1 to 4 plug-in communication modules
Connection for communication coupler integrated in the CPU
I/O interface for direct connection of up to 7 expansion modules
Field-bus-neutral FieldBusPlug-Slave interface
Connection COM1: 9-pole with pluggable terminal block
Connection COM2: 9-pole SUB-D (socket)
Type

No. of
 Connection for Catalog number
Weight coupler slots coupler integrated 1 pc./kg in CPU
TB511-ETH 1 Ethernet RJ45 1SAP 111 100 R0170
TB521-ETH 2 Ethernet RJ45 1SAP 112 100 R0170 0.215
TB541-ETH 4 Ethernet RJ45 1SAP 114 100 R0170
TB521-ARCNET 2 ARCNET COAX available 2006
Gross Automation (877) 268-3700 · www.abbplc.com · sales@grossautomation.com
4
4
4.18 Low Voltage Products & Systems
AC500 PLCs
Ordering data
1 Relay outputs, changeover contacts
Interface modules
For decentralized I/Os
DC505-FBP Communication via FieldBusPlug with Profibus DP, CANopen, DeviceNet, Modbus
 Field-bus-dependent field bus plug required
DC551-CS31 Communication via integrated interface with CS31 system bus
 Plug-in electronic modules, terminal block TU5xx required
DC: Channels can be individually configured as input or output
Type Number of Input signal Output signal Catalog number Weight
DI/DO/DC 1 pc./kg
DC505-FBP 8/-/ 8 24 V DC Trans. 24 V DC, 0.5 A 1SAP 220 000 R0001 0.3
DC551-CS31 8/ -/16 24 V DC Trans. 24 V DC, 0.5 A available 2006 0.3
Binary input/output modules
For central expansion of the AC500 CPUs
For decentralized expansion in combination with interface module DC505-FBP or DC551-CS31
Plug-in electronic modules, terminal block TU5xx required
DC: channels can be individually configured as input or output
Number of Input Relay/ Weight Type DI/ DO/DC signal Transistor- Output signal Catalog number 1 pc./kg outputs
DI524 32 /-/- 24 V DC - - 1SAP 240 000 R0001
DC532 16/-/16 24 V DC Transistor 24 V DC, 0,5 A 1SAP 240 100 R0001
DX522 8/8/- 24 V DC Relay 230 V AC, 3 A 1 1SAP 245 200 R0001
DX531 8/4/- 230 V AC Relay 230 V AC, 3 A 1 1SAP 245 000 R0001
Analog input/output modules
For central expansion of the AC500 CPUs
For decentralized expansion in combination with interface module DC505-FBP or DC551-CS31
Plug-in electronic modules, TU5xx required
Range individually configurable for each channel
Resolution 12 bits + sign
Type Number of Input signal Output signal Catalog number Weight
 AI /AO 1 pc./kg
AX522 8/8 0 ... 10 V, ±10 V ±10 V 1SAP 250 000 R0001
0 /4 ... 20 mA 0/4 ... 20 mA
Pt100, Pt1000 (max. 4 current
 Ni1000 outputs)
Gross Automation (877) 268-3700 · www.abbplc.com · sales@grossautomation.com
4
4
AC500 PLCs
Low Voltage Products & Systems 4.19
Ordering data
Terminal units
For binary and analog expansion modules and interface modules
Please note: for modules with relay outputs, terminal units for 230 V AC
(TU531/TU532) are required!
For module-to-terminal-unit assignments, please consult the table!
 TU505 TU506 TU515 TU516 TU531 TU532 TU551 TU552
 Screw Spring Screw Spring Screw Spring Screw Spring
DC505-FBP x x
DC551-CS31 x x
DI524 x x
DC532 x x
DX522 x x
DX531 x x
AX522 x x
Type for Supply Connection Catalog number Weight
 1 pc. /kg
TU505 FBP Interface modules Screw terminals 1SAP 210 200 R0001 0.2
TU506 FBP Interface modules Spring terminals 1SAP 210 000 R0001 0.2
TU515 I/O modules 24 V DC Screw terminals 1SAP 212 200 R0001 0.2
TU516 I/O modules 24 V DC Spring terminals 1SAP 212 000 R0001 0.2
TU531 I/O modules AC/Relay 230 V AC Screw terminals 1SAP 217 200 R0001 0.2
TU532 I/O modules AC/Relay 230 V AC Spring terminals 1SAP 217 000 R0001 0.2
TU551 CS31-Interface modules 24 V DC Screw terminals 1SAP 210 600 R0001 0.2
TU552 CS31-Interface modules 24 V DC Spring terminals 1SAP 210 400 R0001 0 2
Accessories for the AC500
Type for Description Catalog number Weight
 1 pc. /kg
TK501 CPUs AC500 Programming cable Sub-D/Sub-D 1SAP 180 200 R0001
COM2 length 5 m
TK502 CPUs AC500 Programming cable Sub-D/ 1SAP 180 200 R0101
COM1 terminal Block, length 5 m
MC502 CPUs AC500 Memory card (SD card) 128 MB 1SAP 180 100 R0001
TA521 CPUs AC500 Lithium battery for data buffering 1SAP 180 300 R0001
TA523 I/O Modules Pluggable marker holder (10 pcs.) 1SAP 180 500 R0001
TA524 Terminal base Dummy communication module 1SAP 180 600 R0001
TA525 Set of 10 white plastic markers 1SAP 180 700 R0001
TA526 CPU terminal Accessories for backplane mounting 1SAP 180 800 R0001
 base (10 pcs.)
Programming package PS501 Control Builder
For all CPUs AC500
All programming languages according to IEC 61131-3
Contains: 5 programming languages, Sampling - Trace, Debugging, Offline simulation
 Trace recording (multi-channel), recipe management , Continuous Function Chart
Languages: German/English/French
Scope of delivery: Software, libraries and documentation (PDF) on CD-ROM
Type for Description Catalog number Weight
 1 pc. /kg
PS501 all CPUs AC500 Programming Package PS501 1SAP 190 100 R0001
 Control Builder AC500
Gross Automation (877) 268-3700 · www.abbplc.com · sales@grossautomation.com
4
4
4.20 Low Voltage Products & Systems
AC500 PLCs
I/O expansion and interface module terminal unit
CPU terminal base TB511, TB521 and TB541
Approximate dimensions
Gross Automation (877) 268-3700 · www.abbplc.com · sales@grossautomation.com
4
4
AC500 PLCs
Low Voltage Products & Systems 4.21
Lloyd´s
Register Of
Shipping
Like all ABB products, the AC500 components, are as well tested
in conformity with the applicable European, North American
and international guidelines, and approved by the organizations
responsible. These include GL, DNV, BV, RiNA, LRS and cUL.
The products bear the CE symbol.
Certified quality
The entire process involved in creating an ABB product – from
the original idea to the actual sale – is, of course, monitored by
a quality management process certified under DIN ISO 9001.
In harmony with the natural environment
Protection of the natural environment is integral to ABB’s corporate philosophy. This includes both resource-economy and
the avoidance of problematical substances, plus recyclingfriendly construction and long-lived products. These aspects are
taken fully on board by an integrated eco-management system
conforming to ISO 14001, whose implementation is repeatedly verified by regular eco-audits. And for newly developed
products ABB now conducts a lifecycle assessment as w
