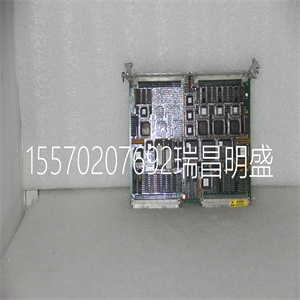

064844-012 3-064843-002 过程控制接口板

064844-012 3-064843-002 过程控制接口板

064844-012 3-064843-002 过程控制接口板

064844-012 3-064843-002 过程控制接口板

将RCU链路电缆TK851连接到两个CPU。请注意，在冗余
CPU配置、COM3和底板can上的电气模块总线
不使用。
6.底板电缆连接：
a、 将电源引线连接到CPU和电源监控信号
从SS8xx到螺钉端子SA和SB（参见83页图28）。
b、 将控制网络电缆连接至CN1（单总线连接），或
CN1+CN2（冗余总线连接）。控制网络是
连接到两个CPU。
c、 使用主电源的电缆TK212将控制生成器连接到COM4
CPU（如果需要更改IP地址等）。否则，连接
控制网络的控制生成器。
7.将光学模块总线连接到处理器单元上的光学触点
（参见32页图2和131页图40）。关于
S800 I/O中提供了光缆选择和电缆长度
文档
请注意，必须使用RCU链路电缆TK851，不能用
类似于电缆。使用其他电缆将禁用中CPU的标识
CB和操作员站。在单一配置下运行时，RCU
链路电缆TK851可临时用于执行
终端插头。
连接到标有“上部”的RCU链路电缆连接器的CPU将
在控制生成器和操作员站中定义为“上位”。标记
与CPU的物理位置无关。任何CPU都可以成为
主CPU。
两个CPU应由同一电源供电（单个或冗余）。对于
冗余电源，参见140页图46。
光学模块总线的连接与处理器单元的连接相同
对于S800 I/O中的FCI（161页图55）。
在冗余配置中安装PM86x/TP830处理器单元2节：安装
92 3BSE036351-510 A
8.CPU配有内部备用电池。当电池用完时
如需使用，将其放入内部电池支架中（图63）。
当使用外部SB821/SB822电池单元时，安装它们
根据安装SB821外部电池单元中的说明：
143页/安装SB822可充电外部电池单元，页
144
在AC 800M之前，不要将内部备用电池放在电池座中
控制器已正常通电，存储器备份功能已：
已激活，即B（蓄电池）LED闪烁。如果没有正常电源
在电池就位的情况下连接到处理器单元，然后连接到CPU存储器
将立即开始消耗电池功率。
安装结束时，务必安装新的内部或外部电池
阶段由于在运行期间频繁停电，原电池被大量使用
系统安装。Connect the RCU Link Cable TK851 to both CPUs. Note that in redundant
CPU configuration, COM3 and the electrical ModuleBus on the baseplate can
not be used.
6. Baseplates cable connections:
a. Connect the power leads to both CPUs and the power supervision signals
from SS8xx to screw terminals SA and SB (see Figure 28 on page 83).
b. Connect the Control Network cables to CN1 (single bus connection) or
CN1 + CN2 (redundant bus connection). The Control Network is
connected to both CPUs.
c. Connect the Control Builder to COM4 with cable TK212 of the Primary
CPU (if required for changing an IP address etc.). Otherwise connect the
Control Builder to the Control Network.
7. Connect the optical ModuleBus to the optical contacts on the processor units
(see Figure 2 on page 32 and Figure 40 on page 131). Information regarding
optical cable selection and cable length is provided in the S800 I/O
documentation.
Note that the RCU Link Cable TK851 must be used and can not be replaced by a
similar cable. Using another cable will disable the identification of the CPUs in
the CB and Operator Station. When running in single configuration the RCU
Link Cable TK851 might temporarily be used to perform the function of a
termination plug.
The CPU connected to the RCU Link Cable connector marked “UPPER” will be
defined as “UPPER” in the Control Builder and Operator Station. The marking
has no relevance to the physical placement of the CPUs. Any CPU can become
the Primary CPU.
Both CPUs should be powered from the same supply (single or redundant). For
redundant power supply, see Figure 46 on page 140.
Connection to the optical ModuleBus is identical to that for the processor unit
and for the FCI in S800 I/O (Figure 55 on page 161).
Installing the PM86x/TP830 Processor Unit in Redundant Configuration Section 2 Installation
92 3BSE036351-510 A
8. The CPUs are supplied with internal back-up batteries. When the batteries are
to be used, place them in the Internal Battery Holder (Figure 63 on page 193).
When the external SB821/SB822 battery units are to be used, install them
according to the instructions in Installing the SB821 External Battery Unit on
page 143/Installing the SB822 Rechargeable External Battery Unit on page
144.
Do not place the internal back-up battery in the battery holder until the AC 800M
Controller has been powered-up normally and the memory back-up function has
been activated, that is, the B(attery) LED flashes. If no normal power supply is
connected to the processor unit with the battery in place, then the CPU memory
will immediately start to consume battery power.
Always install a fresh internal or external battery at the end of the installation
phase. The original battery is heavily utilized due to frequent blackouts during
system installation.
