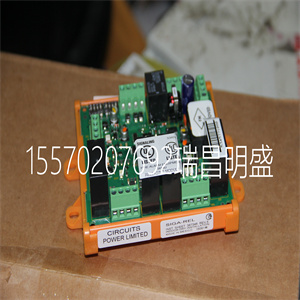

87TS01I-E GJR2368900R2340 87TS01E 耦合器控制板

87TS01I-E GJR2368900R2340 87TS01E 耦合器控制板

AC 800M（3BSE042821*）。
BNC连接器位于：
•机架I/O-位于200-RACN模块后部。
•200系列I/O-位于200-ACN模块的前部。
•CI865-位于CI865模块的前部。
1.为控制网1米范围内的抽头选择合适的位置
BNC连接器。选择抽头位置时，请记住
分接电缆和干线电缆。它们不应靠近高压布线
电缆。避免过度弯曲干线电缆。
2.分接头可以多种方式安装，例如使用DIN导轨或
拧入合适的结构中。即使分接头未安装在DIN导轨上，
应使用通用安装支架，以避免与
导电结构。
3.将分接电缆连接至BNC连接器。在启动
系统，应测试所有控制网电缆连接。检查牵引力
应用连接器的强度。
4.定义网络节点地址：
–机架输入/输出-通过转动200前面的两个开关（x10和x1）-
RACN模块至正确位置。范围为02-99的节点地址
应为200个RACN选择。
–200系列I/O-通过单击
200-ACN模块。应选择范围为02-99的节点地址
对于200个ACN。
–CI865-节点地址固定为01。
第2节安装：安装Modbus TCP接口CI867/TP867
3BSE036351-510 A 127
安装Modbus TCP接口CI867/TP867
CI867由处理器单元通过CEX总线供电，无需额外电源
需要外部电源。
使用以下步骤安装CI867/TP867：
1.将装置安装到DIN导轨上，请参阅第65页的“将AC 800M装置安装到DinRail上”和“将PM86x/TP830处理器装置安装到单个
配置见第78页。
2.将10/100Mbps以太网双绞线连接到上的CH1连接器
底板。
3.通过将以太网电缆的另一端连接到快速以太网网络
标准以太网组件。
4.将10Mbps以太网双绞线连接到
底板。
5.通过标准将以太网电缆的另一端连接到以太网
以太网组件。
以太网双绞线连接
快速10/100 Mbps以太网双绞线通过RJ45连接器连接
（CH1）位于TP867上。较慢的10 Mbps以太网双绞线通过
位于TP867上的RJ45连接器（CH2）。
有关连接器的说明，请参见第84页的表5。

87TS01I-E GJR2368900R2340 87TS01E 耦合器控制板

87TS01I-E GJR2368900R2340 87TS01E 耦合器控制板

AC 800M (3BSE042821*).
The BNC connector is located:
• Rack I/O - at the rear of the 200-RACN module.
• Series 200 I/O - at the front of the 200-ACN module.
• CI865 - at the front of the CI865 module.
1. Select a suitable location for the tap within one meter from the ControlNet
BNC connector. When selecting the tap location, keep in mind the routing of
the drop and trunk cables. They should not be routed close to high-voltage
cables. Avoid bending the trunk cable too much.
2. The tap can be mounted in various ways, for example using a DIN rail or
screwed into a suitable structure. Even if the tap is not mounted on a DIN rail,
the universal mounting bracket should be used to avoid galvanic connection to
a conducting structure.
3. Connect the tap drop cable to the BNC connector. Before starting up the
system, all ControlNet cable connections should be tested. Check the pulling
strength of applied connectors.
4. Define the network node address:
– Rack I/O - by turning the two switches (x10 and x1) on front of the 200-
RACN module to the correct position. A node address in the range 02-99
should be selected for the 200-RACNs.
– Series 200 I/O - by clicking the push button switches on the front of the
200-ACN module. A node address in the range 02-99 should be selected
for the 200-ACNs.
– CI865 - The node address is fixed to 01.
Section 2 Installation Installing the Modbus TCP Interface CI867/TP867
3BSE036351-510 A 127
Installing the Modbus TCP Interface CI867/TP867
The CI867 is powered from the processor unit via the CEX-Bus and no additional
external power source is required.
Use the following procedure to install the CI867/TP867:
1. Mount the unit onto the DIN-rail, see Mounting AC 800M Units onto DINRailon page 65 and Installing the PM86x/TP830 Processor Unit in Single
Configurationon page 78.
2. Connect the 10/100Mbps Ethernet twisted pair cable to the CH1 connector on
the baseplate.
3. Connect the other end of the Ethernet cable to a Fast Ethernet network via
standard Ethernet components.
4. Connect the 10Mbps Ethernet twisted pair cable to the CH2 connector on the
baseplate.
5. Connect the other end of the Ethernet cable to a Ethernet network via standard
Ethernet components.
Ethernet Twisted Pair Connection
The Fast 10/100 Mbps Ethernet twisted pair is connected via the RJ45 connector
(CH1) located on TP867. The slower 10 Mbps Ethernet twisted pair is connected via
the RJ45 connector (CH2) located on TP867.
For a description of the connectors see Table 5 on page 84.
