（PM851/PM851A/PM856/PM856A/PM860/PM86A/PM861/PM861A）/
PM864/PM864A/PM865/PM866）。
•基板（TP830），用于容纳装置终端板。
有关功能框图，请参见35页图4和
图536页。CPU板包含微处理器和RAM、所有内置通信接口的控制器、实时时钟、LED
指示器、初始化按钮和紧凑型闪存接口。
电源板的主要功能是产生隔离、电路保护
+向CPU和I/O单元提供5V和+3.3V电源。该板还包含用于服务端口的光隔离RS-232C驱动器/接收器，以及一个备份
存储器/实时时钟（RTC）的电池支架。
安装在TP830基板中的终端板是
外部连接终止。电路板通过以下方式接地至DIN导轨：
外壳的金属部件。终端板配有：
用于电源和冗余电源监控的螺钉端子，带
用于控制网络和串行端口的RJ45连接器，用于服务的连接器
端口、电气模块总线和CEX总线。
连接到TP830基板的24V直流电源为
CEX总线和电气模块总线。
在单CPU配置中，可以将S800 I/O群集直接连接到
内置电气模块总线插头位于TP830右侧
底板。
处理器单元有一个通信扩展总线连接器，位于：
TP830基板的左侧。此CEX总线提供扩展
带附加通信接口的车载通信端口。
本主题不适用于PM891。请参阅上的PM891处理器单元-概述
40页。
PM8xx/TP830处理器单元-概述1节介绍
34 3BSE036351-510 A
图3.处理器单元组件-总图
（此处显示为PM860/TP830）
盖释放螺钉
掩蔽
装配
CEX总线
电气模块总线
熔丝
CEX总线/模块总线
底板
TP830
处理器单元
1节PM8xx/TP830处理器单元简介-概述
3BSE036351-510 A 35
图4.PM851/PM856/PM860–功能框图
PM851/PM851A仅限于一个以太网（CN1）端口。
4.权力
+5V直流
+3.3V直流
电池
（+3.3V）
系统和
用户mem。
CEX总线
控制器
模块总线
光电控制器
直流
闪光灯
思维方式
表达
控制器
中央处理器
初始化
F
B
R
以太网
CN1 CN2 COM3 COM4
RS232和RS232
4 4 8 4
以太网
外部+BV
电池
CEX总线
3.
P
RTC
PM8xx/TP830处理器单元-概述1节介绍
36 3BSE036351-510 A
图5.PM861/PM864/PM865/PM866–功能框图
实时中央处理器
表达
控制器
系统
和用户
记忆。
思维方式
2.
1.
3.
L+
LSA
某人
1.
2.
4.
3.
B+
BS
以太网
CN1和CN2
FPGA
阴影
记忆力
CEX总线
与电有关的
视力的
区域协调股链接
RS232
COM4
RS232
COM4
RS232
COM3
+3.3V
电池
+BV
（+3.3V直流电）
SB紧凑型闪存
初始化
+24V
R
+5V直流
区域协调股
CEX总线模块总线接口
F P B原对偶
沙特阿拉伯
1节PM8xx/TP830处理器单元简介-概述
3BSE036351-510 A 37
PROFIBUS DP、基金会现场总线H1、基金会高速现场总线
以太网和双RS-232C端口是可用于
连接到CEX总线。可以使用冗余通信
接口，例如PROFIBUS DP。
38页的图6提供了连接S800 I/O的各种方式的示例
单位。可以看到，在38页图6的右上方区域
已连接单元群集（或组）（每个群集的大单元数为12）
连接至AC 800M控制器的电气模块总线。然而，另外七个
可以将簇（每个簇包括多达12个单元）添加到光学模块总线，
因此，当仅使用时，每个AC 800M控制器的总计数为96个
模块总线。
在38页图6的左侧，有一个PROFIBUS DP段。这允许
用于大量增加连接到每个AC 800M控制器的单元数量。
此处，该段显示为具有FCI单元（CI801型），连接到
PROFIBUS DP网络。FCI单位的使用允许选择以下单位：
几个I/O系列。
39页的图7显示了基于
基金会现场总线高速以太网（FF HSE）。
有关更多示例，请参阅中I/O系统的相关文档
问题
将S800输入/输出单元（使用ModuleBus）连接到AC 800M控制器
安装有PM851/PM851A处理器单元，仅限于一个电气
模块总线集群和一个光学模块总线集群

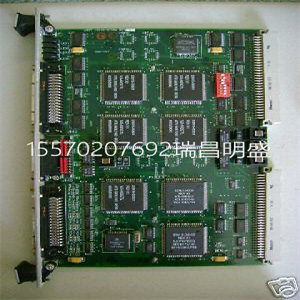

560SLI02 1KGT009100R0001 自动化通讯单元


560SLI02 1KGT009100R0001 自动化通讯单元

(PM851/PM851A/PM856/PM856A/PM860/PM860A/PM861/PM861A/
PM864/PM864A/PM865/PM866) with processor and Power Supply boards.
• Baseplate (TP830), housing the unit termination board.
For the Functional Block Diagram, see Figure 4 on page 35 and
Figure 5 on page 36. The CPU board contains the microprocessor and the RAMmemory, controllers for all built-in communication interfaces, real-time clock, LED
indicators, INIT push button and a Compact Flash interface.
The main function of the power supply board is to generate isolated, circuit-proof
+5 V and +3.3 V supplies to the CPU and I/O units. The board also contains optoisolated RS-232C drivers/receivers for the service port, together with a back-up
battery holder for memory/real time clock, (RTC).
The termination board, housed in the TP830 Baseplate, is where the majority of
the external connections terminates. The board is grounded to the DIN-rail through
of the metallic components of the housing. The termination board is provided with
screw terminals for power supply and redundant power supply monitoring, with
RJ45 connectors for the control network and serial port, a connector for the service
port, the electrical ModuleBus and the CEX-Bus.
The 24 V DC supply, connected to the TP830 Baseplate, powers all the units on the
CEX-Bus and the electrical ModuleBus.
In single CPU configuration, it is possible to connect an S800 I/O cluster directly to
the built-in electrical ModuleBus plug located on the right hand side of the TP830
Baseplate.
The processor unit has a communication expansion bus connector located on
the left-hand side of the TP830 Baseplate. This CEX-Bus provides for extending
the on-board communication ports with additional communication interfaces.
The topic does not apply to PM891. See PM891 Processor Unit – General on
page 40.
PM8xx/TP830 Processor Unit – General Section 1 Introduction
34 3BSE036351-510 A
Figure 3. Processor Unit Assembly – General View
(here shown with PM860/TP830)
Cover Release Screw
Cover
Assembly
CEX-Bus
Electrical ModuleBus
Fuses
CEX-Bus/ModuleBus
Baseplate
TP830
Processor Unit
Section 1 Introduction PM8xx/TP830 Processor Unit – General
3BSE036351-510 A 35
Figure 4. PM851/PM856/PM860 – Functional Block Diagram
PM851/PM851A is restricted to one Ethernet (CN1) port.
4 Power
+5V DC
+3.3V DC
Battery
(+3.3V)
System and
user mem.
CEX-bus
controller
ModuleBus
controller Electrical Optical
DC
Compact Flash
Logic
Communication
controllers
CPU
INIT
F
B
R
Ethernet
CN1 CN2 COM3 COM4
RS232 RS232
4 4 8 4
Ethernet
External +BV
battery
CEX-bus
3
P
RTC
PM8xx/TP830 Processor Unit – General Section 1 Introduction
36 3BSE036351-510 A
Figure 5. PM861/PM864/PM865/PM866 – Functional Block Diagram
RTC CPU
Communication
Controllers
System
and user
mem.
Logic
2
1
3
L+
LSA
SB
1
2
4
3
B+
BS
Ethernet Ethernet
CN1 CN2
FPGA
Shadow
memory
CEX-Bus
Electrical
Optical
RCU Link
RS232
COM4
RS232
COM4
RS232
COM3
+3.3V
Battery
+BV
(+3.3V DC)
SB Compact Flash
INIT
+24V
R
+5V DC
RCU
CEX-Bus ModuleBus Interface
F P B PRIM DUAL
SA
Section 1 Introduction PM8xx/TP830 Processor Unit – General
3BSE036351-510 A 37
PROFIBUS DP, FOUNDATION Fieldbus H1, FOUNDATION Fieldbus High Speed
Ethernet and dual RS-232C ports are some examples of unit types available for
connection to the CEX-Bus. It is possible to use redundant communication
interfaces, for example PROFIBUS DP.
Figure 6 on page 38 provides examples of various ways to connect the S800 I/O
units. It can be seen, at the top right-hand area of Figure 6 on page 38, that one
cluster (or group) of units (maximum number of units per cluster is 12) is connected
to the electrical ModuleBus of an AC 800M Controller. However, a further seven
clusters (each comprising up to 12 units) can be added to the optical ModuleBus,
thus achieving a total count of 96 units per AC 800M Controller when using only
the ModuleBus.
To the left on Figure 6 on page 38, there is a PROFIBUS DP segment. This allows
for a large increase in the numbers of units connected to each AC 800M Controller.
Here the segment is shown as having an FCI unit (type CI801), connected to the
PROFIBUS DP network. The use of FCI units allows the selection of units from
several I/O families.
Figure 7 on page 39 shows another example for I/O units based on a
FOUNDATION Fieldbus High Speed Ethernet (FF HSE).
For further examples refer to the relevant documentation for the I/O system in
question.
Connecting S800 I/O units (using the ModuleBus) to an AC 800M Controller
mounted with a PM851/PM851A processor unit is restricted to, one electrical
ModuleBus cluster and one optical ModuleBus cluster
