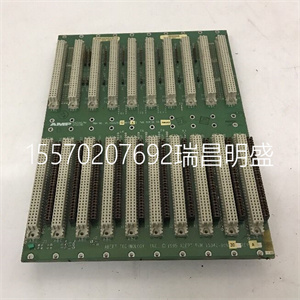

TINT-41X1 10000501195 原厂自动化通讯卡

TINT-41X1 10000501195 原厂自动化通讯卡

5.1.1 PM851A、PM856A和PM860A是
补充。
增加了CI873的冗余。
3BSE036351-510 A
5.1 PM891、CI869、CI871、CI872、CI873
添加
3BSE036351-510
添加了5.0 SP2 CI868、PM866和SM811。3BSE036351R5021
添加了5.0 SP1 SB822和CI867。3BSE036351R5011
添加了5.0 CI865。3BSE036351R5001
产品发布历史1节介绍
58 3BSE036351-510 A
4.1关于SS823的新信息是：
补充。SM810和闪存
已添加。
3BSE036351R4101
添加了4.0 CI862。3BSE036351R4001
3.1增加了PM851，3BSE 036 351 R101
3.0 PM865，PM861A，PM864A，BC810，
SM810、CI854A、CI858、CI860和
添加SS823。
3BSE 030 827 R201
2.1增加PM864。3BSE 027 941 R301
2.1增加了CI855和CI856。3BSE 027 941 R101
添加了2.0 PM861和CI854/CI857。3BSE 026 020 R101
1.1增加PM856和CI852。3BSE 019 193 R201
1.0初始AC 800M版本。3BSE 019 193 R101
表2.AC 800M发布历史
版本说明用户文档
3BSE036351-510 A 59
2节安装
本节包含AC 800M安装规划指南
控制器系统（见59页的选址和建筑要求）。
在环境和其他方面采取的措施的完整清单
此处未给出现场条件。
设备应通过彻底的测试来适应实际应用
以及范围正确的系统定义、订购程序和设计
要求。本节还介绍了实际的现场安装程序
特定于AC 800M装置（参见页的“将AC 800M安装到DIN导轨上
65).
场地规划
选址和建筑要求
AC 800M系统设计用于要求苛刻的工业领域
环境。本节提供了有关标准要求的信息
关于AC 800M控制器所在的位置或建筑物
存储或安装系统。
大多数应用不需要关于环境的特殊安排，并且
按照标准规定安装即可。在某些情况下
然而，必须考虑具体的保护措施。
场地选择和建筑要求2节：安装
60 3BSE036351-510 A
在规划控制系统安装时，以下几点必须：
考虑过的：
•温度：
–注意环境空气温度以及
附件。较低的温度可提高系统可靠性和
可利用性
–如果超过大允许温度，预计寿命
湿电解电容器和大多数半导体的
减少。
•振动：
–关于常规振动，建议地板：
外壳/机柜位于声音、水平表面和墙壁上
外壳/机柜安装在隔音的垂直墙上。
–AC 800M系统是否应安装在控制室内，邻近
大型机械，如振动筛或大型压力机
如果预计会发生振动，则可使用减震器或隔离垫
需要保护系统设备。减震器通常会：
保护设备免受以下持续低水平振动：
可感知，但不过度。
–建议使用额外的紧固螺钉，以防止
振动是由噪音产生的。
–如果振动或冲击是主要的f
TINT-41X1 10000501195 原厂自动化通讯卡


TINT-41X1 10000501195 原厂自动化通讯卡
5.1.1 PM851A, PM856A, and PM860A are
added.
Redundancy for CI873 is added.
3BSE036351-510 A
5.1 PM891, CI869, CI871, CI872, CI873
are added
3BSE036351-510
5.0 SP2 CI868, PM866, SM811 are added. 3BSE036351R5021
5.0 SP1 SB822 and CI867 are added. 3BSE036351R5011
5.0 CI865 is added. 3BSE036351R5001
Product Release History Section 1 Introduction
58 3BSE036351-510 A
4.1 New information about SS823 is
added. SM810 and Compact Flash
have been added.
3BSE036351R4101
4.0 CI862 is added. 3BSE036351R4001
3.1 PM851 is added 3BSE 036 351 R101
3.0 PM865, PM861A, PM864A, BC810,
SM810, CI854A, CI858, CI860 and
SS823 are added.
3BSE 030 827 R201
2.1 PM864 is added. 3BSE 027 941 R301
2.1 CI855 and CI856 are added. 3BSE 027 941 R101
2.0 PM861and CI854/CI857 are added. 3BSE 026 020 R101
1.1 PM856 and CI852 are added. 3BSE 019 193 R201
1.0 Initial AC 800M release. 3BSE 019 193 R101
Table 2. AC 800M Release History
Version Description User Doc
3BSE036351-510 A 59
Section 2 Installation
This section contains guidelines for planning the installation of an AC 800M
controller system (see Site Selection and Building Requirements on page 59).
A complete list of measures to be taken with respect to the environment and other
on-site conditions is not given here.
The equipment should be adapted to the actual application by means of a thorough
and correctly scoped system definition, ordering procedures and design
requirements. This section also describes practical on-site installation procedures
specific to AC 800M units (see Mounting AC 800M Units onto DIN-Rail on page
65).
Site Planning
Site Selection and Building Requirements
The AC 800M system is designed for use within demanding industrial
environments. This section provides information on standard requirements
regarding the location at which or the building(s) in which the AC 800M Controller
system is to be stored or installed.
Most applications require no special arrangements regarding the environment, and
installation according to standard regulations will suffice. In certain situations
however, consideration must be given to specific protective measures.
Site Selection and Building Requirements Section 2 Installation
60 3BSE036351-510 A
When planning a control system installation, the following points must be
considered:
• Temperature:
– It is important to note the ambient air temperature as well as that within
enclosures. Lower temperatures increase system reliability and
availability.
– If maximum permitted temperatures are exceeded, the anticipated lifetime
of wet, electrolytic capacitors and most semiconductors will be greatly
reduced.
• Vibration:
– Regarding routine vibration it is recommended that floor
enclosures/cabinets stand on a sound, level surface, and that wall
enclosures/cabinets are mounted on sound, vertical walls.
– Should the AC 800M system be installed in a control room, adjacent to
large machinery such as shakers or large presses where frequent major
vibration is expected, then shock absorbers or an isolation pad may be
required to protect system equipment. Shock absorbers will normally
protect the equipment from sustained low-level vibrations that are
perceivable, but not unduly excessive.
– It is recommended that additional fastening screws be used to prevent
vibration-generated noise.
– If vibrations or shock are a major f
