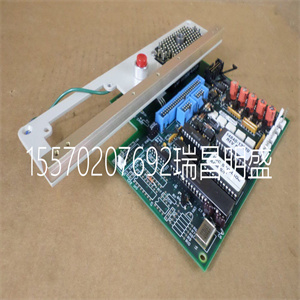

原厂 SAMT 11 脉冲放大器卡 57211369

 原厂 SAMT 11 脉冲放大器卡 57211369
不间断电源
SD83X系列电源装置可轻松处理短电源
工业系统中通常发生的中断（<20毫秒）
环境尽管如此，有时需要保护某些应用程序
通过安装不间断电源防止短暂的电压故障
（UPS）设备。
如果发生电源故障，AC 800M控制器将安全关闭。
在停机期间，将备份应用程序内存和系统时钟
通过内部电池。在长时间不运行的系统中，它是
建议安装外部电池备用装置。当权力
电源重新连接后，AC 800M控制器将重新启动并运行应用程序
正常。
如果意外停机的影响不可接受，强烈建议
AC 800M控制器应通过连接到不间断电源进行完全保护
电源（UPS）电源。
围墙
AC 800M和S800输入/输出单元的防护等级为IP20，每个单元为
单独CE标记。如果需要更高的IP等级，则需要额外的外壳
需要。
表3.外部电源-保险丝额定值
保险丝额定值保险丝类型
10 A延时熔断器
第2节安装：将AC 800M装置安装到DIN导轨上
3BSE036351-510 A 65
通常，使用额外的机柜不会影响EMC
控制器的特性。
外壳安装
安装控制器外壳时，必须提供一定的小值
外壳、墙壁和天花板之间的距离，以提供
通风良好。
如果外壳配有可拆卸壁覆层，则必须确保
未从与其他外壳相邻的任何外壳中移除，包括：
不属于AC 800M控制器及其连接的S800 I/O的设备。
ABB机柜
作为合适的外壳，ABB建议使用以下两个机柜
特别适用于安装AC 800M控制器和S800 I/O。都是
密封至防护等级IP54，可支持控制器和S800 I/O单元
不需要额外的冷却设备：
•RM550–落地式机柜
•RE820–壁挂式机柜。
有关ABB机柜的更多信息，请参见附录C，建议
组件。
在DIN导轨上安装AC 800M装置
由于AC 800M单元（CPU和通信接口）通过自对流冷却，因此它们必须安装在水平DIN导轨上。
每个底板都有一个锁定机构，将金属背板与
DIN导轨，提供有效的接地连接。DIN导轨的功能如下：
非常有效的系统接地。
位于底板下部的附加螺钉凸耳用于
电气功能。如果需要额外的紧固，则提供它们
在受到过度振动的环境中。
安装在金属板上第2节安装
66 3BSE036351-510 A
有两种方式将产品安装在机柜、开放式机架或其他类型的
装置；铝型材，安装有DIN导轨或DIN导轨安装在
适当尺寸的金属板。铝型材

 原厂 SAMT 11 脉冲放大器卡 57211369


 原厂 SAMT 11 脉冲放大器卡 57211369

Uninterruptable Power Supply
The SD83X series of power supply units comfortably handle the short power
interruptions (<20 milli seconds) that may occur normally within an industrial
environment. Despite this, it is sometimes necessary to protect certain applications
against brief voltage failures by the installation of an Uninterruptable Power Supply
(UPS) device.
The AC 800M controller will shut down safely in the event of a power failure.
During down-time, the application memory and the system clock will be backed up
by the internal battery. In systems subject to long non-operational periods, it is
recommended that an external battery back-up unit be installed. When the power
supply is reconnected, the AC 800M Controller will re-start and run the application
as normal.
If the effects of unexpected shutdowns are not acceptable, it is highly recommended
that the AC 800M Controller be fully protected by connection to an Uninterruptable
Power Supply (UPS) source.
Enclosures
The AC 800M and S800 I/O units hold protection class IP20, with each unit being
individually CE-marked. If a higher IP class is required, an additional enclosure is
needed.
Table 3. External Mains Supply – Fuse Rating
Fuse Rating Fuse Type
10 A Delayed action fuse
Section 2 Installation Mounting AC 800M Units onto DIN-Rail
3BSE036351-510 A 65
Normally the use of an additional enclosure will not influence the EMC
characteristics of the controller.
Enclosure Mounting
When mounting the controller enclosure, it is important to provide certain minimum
distances between the enclosure, the walls and the ceiling, in order to provide
satisfactory ventilation.
If the enclosure is provided with removable wall cladding, it is important to ensure
that this is not removed from any enclosure adjacent to other enclosures containing
equipment not belonging to the AC 800M Controller and its connected S800 I/O.
ABB Cabinets
As a suitable enclosure, ABB recommends the following two cabinets, both
specially adapted for mounting the AC 800M Controller and S800 I/O. Both are
sealed to protection class IP54 and can support the Controller and S800 I/O units
with no requirement for additional cooling equipment:
• RM550 – Floor-mounted cabinet
• RE820 – Wall-mounted cabinet.
For further information on ABB cabinets, see Appendix C, Recommended
Components.
Mounting AC 800M Units onto DIN-Rail
Since the AC 800M units (CPU and communication interfaces) are cooled by selfconvection, it is important that they only be mounted onto a horizontal DIN- rail.
Each baseplate has a locking mechanism that contacts the metal backplate to the
DIN-rail, providing an effective ground connection. The DIN-rail functions as a
very effective ground for the system.
The additional screw lugs, located in the lower part of the baseplate, serve no
electrical function. They are provided for use should extra fastening be required
within environments subject to excessive vibration.
Mounting on metal sheet Section 2 Installation
66 3BSE036351-510 A
There are two ways of mounting the product in cabinets, open rack or other types of
installations; aluminum profile with mounted DIN-rail or DIN-rail mounted on a
metal sheet of proper size. The aluminum profile o
