如果外壳配有可拆卸壁覆层，则必须确保
未从与其他外壳相邻的任何外壳中移除，包括：
不属于AC 800M控制器及其连接的S800 I/O的设备。
ABB机柜
作为合适的外壳，ABB建议使用以下两个机柜
特别适用于安装AC 800M控制器和S800 I/O。都是
密封至防护等级IP54，可支持控制器和S800 I/O单元
不需要额外的冷却设备：
•RM550–落地式机柜
•RE820–壁挂式机柜。
有关ABB机柜的更多信息，请参见附录C，建议
组件。
在DIN导轨上安装AC 800M装置
由于AC 800M单元（CPU和通信接口）通过自对流冷却，因此它们必须安装在水平DIN导轨上。
每个底板都有一个锁定机构，将金属背板与
DIN导轨，提供有效的接地连接。DIN导轨的功能如下：
非常有效的系统接地。
位于底板下部的附加螺钉凸耳用于
电气功能。如果需要额外的紧固，则提供它们
在受到过度振动的环境中。
安装在金属板上第2节安装
66 3BSE036351-510 A
有两种方式将产品安装在机柜、开放式机架或其他类型的
装置；铝型材，安装有DIN导轨或DIN导轨安装在
适当尺寸的金属板。铝型材或金属板应适当
连接到保护接地。
应使用高度为7.5mm的DIN导轨。参考NS 35/7.5型，根据
符合标准EN50022。
外部信号的干扰抑制通常直接接地至
底盘和/或工厂地面。电厂接地电位必须稳定且良好
定义，即使在由高压设备引起的低接地故障的情况下，或
雷击。
每个模块的导电背面连接到金属DIN导轨，用于：
作为互连设备之间的模块电子接地导体。
这是为了确保内部逻辑和的良好接地连接
模块的EMI抗扰度和射频发射。DIN安装导轨必须具有
与机柜PE的良好结合。
如果AC 800M模块配置为两个或多个组，并与
延长电缆，应特别注意确保所有
组具有良好的接地连接。同时确保固定图号。
安装在金属板上
DIN导轨应通过紧固件牢固固定在未涂漆的金属板上
每100毫米（4英寸）拧一次螺钉，以确保良好的机械稳定性和良好的底盘
机柜或开放式机架中的接地连接。
金属板厚度应至少为2.5mm，高度至少为180mm。金属
板材应至少每500mm机械固定在机柜或机架上，并配有：
至少四个螺钉。应进行机柜框架的紧固
使用自攻螺钉以获得良好的接地连接

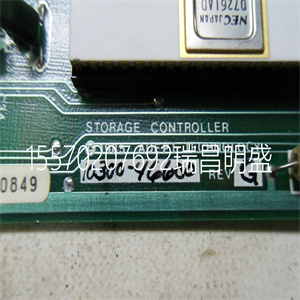

UC86-8CH 57275871 5760896-0E 通用计数器界面板模块

UC86-8CH 57275871 5760896-0E 通用计数器界面板模块
If the enclosure is provided with removable wall cladding, it is important to ensure
that this is not removed from any enclosure adjacent to other enclosures containing
equipment not belonging to the AC 800M Controller and its connected S800 I/O.
ABB Cabinets
As a suitable enclosure, ABB recommends the following two cabinets, both
specially adapted for mounting the AC 800M Controller and S800 I/O. Both are
sealed to protection class IP54 and can support the Controller and S800 I/O units
with no requirement for additional cooling equipment:
• RM550 – Floor-mounted cabinet
• RE820 – Wall-mounted cabinet.
For further information on ABB cabinets, see Appendix C, Recommended
Components.
Mounting AC 800M Units onto DIN-Rail
Since the AC 800M units (CPU and communication interfaces) are cooled by selfconvection, it is important that they only be mounted onto a horizontal DIN- rail.
Each baseplate has a locking mechanism that contacts the metal backplate to the
DIN-rail, providing an effective ground connection. The DIN-rail functions as a
very effective ground for the system.
The additional screw lugs, located in the lower part of the baseplate, serve no
electrical function. They are provided for use should extra fastening be required
within environments subject to excessive vibration.
Mounting on metal sheet Section 2 Installation
66 3BSE036351-510 A
There are two ways of mounting the product in cabinets, open rack or other types of
installations; aluminum profile with mounted DIN-rail or DIN-rail mounted on a
metal sheet of proper size. The aluminum profile or metal sheet shall be properly
connected to protective earth.
DIN-rail type with height 7.5 mm shall be used. Refer to type NS 35/7.5 according
to standard EN50022.
The interference suppression for external signals, are normally directly grounded to
chassis and/or plant ground. The plant ground potential must be stable and well
defined, even in the event of a low ground fault caused by high voltage equipment or
a lightning strike.
Each module's conductive back plane connects to the metallic DIN-rail which serves
as the module electronics ground conductor between the interconnected devices.
This is to ensure a good ground connection both for the internal logic and for the
EMI immunity and RF emission of the modules. The DIN mounting rail must have a
good bond to the PE of the cabinet.
If AC 800M modules are configured as two or more groups interconnected with
extension cables, special care should be taken to ensure that the DIN-rails of all
groups have a good connection to ground. Also ensure to fix the figure numbers.
Mounting on metal sheet
The DIN-rail shall be firmly attached to an unpainted metal sheet with fastening
screws every 100 mm (4 in) to ensure good mechanical stability and a good chassis
ground connection in the cabinet or an open rack.
The metal sheet shall at least be 2.5 mm thick and at least 180 mm high. The metal
sheet shall be mechanical fastened at least every 500 mm to the cabinet or rack with
a minimum of four screws. The fastening to the cabinet frame shall be performed
with self-tapping screws to get a good grounding connectio
