如果称重传感器和
电缆已正确安装。控制单元的调试在相关
控制单元手册的章节。
检查以下内容：
•称重传感器已正确安装和对齐
•所有螺钉均已拧紧至正确扭矩
•所有电缆均正确安装和连接
•所有连接器均已插入
4.2初步计算
为了能够设置正确的测量范围，必须计算大张力T下每个称重传感器的测量力FR/2。每个称重传感器承受总测量力的一半
FR。必须在调试开始前进行该计算。描述了FR的计算
在2.5安装布置中。
压力导管枕式称重传感器，水平测量PFTL 101，用户手册
4调试
3BSE009965R0401 en版本F 23
5.
维修
5.1概述
带Pressductor®称重传感器的腹板/条带式张力计系统非常可靠，且不会
需要日常维护。作为预防措施，应定期对所有零件进行检查
易受机械磨损。
5.2预防性维护
检查安装螺钉，必要时拧紧。
应检查称重传感器和板之间的间隙，以确保它们不会堵塞
带有灰尘，导致分路力通过称重传感器。如有必要，用压缩空气清洁间隙。
称重传感器和接线盒之间的电缆可能受到损坏，应：
必要时进行检查和更换。
5.3备件
建议用户库存以下备件：
•一个类型和尺寸正确的称重传感器。
•一个带电缆的连接器（用于PTFL 101A和PFTL 101B）。
表3称重传感器PFTL 101的订购号
描述类型标称负载
（千牛）
订购号
称重传感器PFTL 101A 0,5 3 BSE004160R1
称重传感器PFTL 101A 1,0 3 BSE004166R1
称重传感器PFTL 101A 2,0 3 BSE004172R1
称重传感器PFTL 101AE 0,5 3 BSE004211R1
称重传感器PFTL 101AE 1,0 3BSE004212R1
称重传感器PFTL 101AE 2,0 3BSE004213R1
称重传感器PFTL 101AER 0,5 3 BSE023010R1
称重传感器PFTL 101AER 1,0 3BSE023011R1
称重传感器PFTL 101AER 2,0 3 BSE023012R1
压力导管枕式称重传感器，水平测量PFTL 101，用户手册
5.维护
24 3 BSE009965R0401 en版本F
称重传感器PFTL 101B 2,0 3 BSE004185R1
称重传感器PFTL 101B 5,0 3BSE004191R1
称重传感器PFTL 101B 10,0 3BSE004197R1
称重传感器PFTL 101B 20,0 3BSE004203R1
称重传感器PFTL 101BE 2,0 3 BSE004214R1
称重传感器PFTL 101BE 5,0 3BSE004215R1
称重传感器PFTL 101BE 10,0 3BSE004216R1
称重传感器PFTL 101BE 20,0 3BSE004217R1
称重传感器PFTL 201BER 2,0 3 BSE023158R1
称重传感器PFTL 201BER 5,0 3BSE023159R1
称重传感器PFTL 201BER 10,0 3BSE023160R1
称重传感器PFTL 201BER 20,0 3BSE023161R1
压力导管枕式称重传感器，水平测量PFTL 101，用户手册
5.维护
3BSE009965R0401 en版本F 25
6.
故障追踪
6.1概述
必须完全熟悉中的操作说明
2开始故障跟踪前的说明。
6.2互换性
称重传感器经过工厂校准，可以直接用相同类型的另一个称重传感器进行更换
类型更换称重传感器后所需的一调整是控制中的零调整
单元
6.3故障追踪程序
测量设备可分为四个部分：
•机械安装。
•称重传感器。
•接线盒和电缆。
•控制单元（参见控制单元手册）。
故障症状指示故障所在的部位。
•机械安装中的故障通常会导致零点不稳定或灵敏度不正确。
如果故障发生在过程中的其他事件之后，如温度，或可能与
对于特定的操作，它可能源于机械装置中的某些东西。
•称重传感器非常坚固，可在测量方向承受五倍于其标称负载。如果称重传感器仍然过载，其数据已
改变，这可能是由于轧机中发生的事件，如腹板/带材断裂。过度过载时，首先发生的是零点偏移。
•布线故障可能导致干扰或零点不稳定等问题。一些
故障可能是由于电缆接近导致干扰。不正确的安装，如电缆或多个端部接地的屏蔽不平衡，可能导致
零点变得不稳定。电缆会受到机械磨损，应
定期检查。还应检查接线盒，尤其是在以下情况下：
振动
•控制单元故障通常会导致功能间歇性丧失。这是不寻常的
控制单元导致稳定性问题。连接装置中的故障可能会影响
控制单元。有关更多详细信息，请参阅控制单元手册。
压力导管枕式称重传感器，水平测量

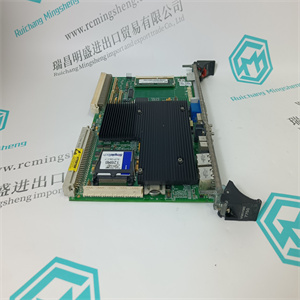

PPD517A3011 3BHE051476R3011 工业驱动器专用电源 ABB
PPD517A3011 3BHE051476R3011 工业驱动器专用电源 ABB
The actual procedure for commissioning a load cell is simple, provided that the load cells and
cables have been properly installed. Commissioning of the control unit is described in the relevant
chapter of the control unit manual.
Check the following:
• that the load cells have been correctly installed and aligned
• that all screws have been tightened to the correct torque
• that all cables are correctly installed and connected
• that all connectors are plugged in
4.2 Preparatory Calculations
To be able to set the correct measuring range, the measurement force per load cell FR/2 at maximum tension T must be calculated. Each load cell is subjected to half the total measurement force
FR. This calculation must be done before commissioning can begin. Calculation of FR is described
in 2.5 Mounting Arrangement.
Pressductor PillowBlock Load Cells, Horizontal Measuring PFTL 101, User Manual
4 Commissioning
3BSE009965R0401 en Rev F 23
5
Maintenance
5.1 General
Web/strip Tensiometer Systems with Pressductor® load cells are extremely reliable and do not
require daily servicing. As a preventive measure, checks should be done periodically on all parts
subject to mechanical wear.
5.2 Preventive Maintenance
Check mounting screws and tighten if necessary.
The gaps between load cell and plates should be checked to ensure that they do not get clogged
with dirt, causing shunt force past the load cell. Clean the gaps with compressed air if necessary.
The cable between the load cell and the junction box is subjected to possible damage and should
be checked and replaced if necessary.
5.3 Spare Parts
Users are recommended to keep the following spare parts in stock:
• One load cell of correct type and size.
• One connector complete with cable (for PTFL 101A and PFTL 101B).
Table 3 Ordering numbers for Load Cell PFTL 101
Description Type Nominal load
(kN)
Ordering numbers
Load cell PFTL 101A 0,5 3BSE004160R1
Load cell PFTL 101A 1,0 3BSE004166R1
Load cell PFTL 101A 2,0 3BSE004172R1
Load cell PFTL 101AE 0,5 3BSE004211R1
Load cell PFTL 101AE 1,0 3BSE004212R1
Load cell PFTL 101AE 2,0 3BSE004213R1
Load cell PFTL 101AER 0,5 3BSE023010R1
Load cell PFTL 101AER 1,0 3BSE023011R1
Load cell PFTL 101AER 2,0 3BSE023012R1
Pressductor PillowBlock Load Cells, Horizontal Measuring PFTL 101, User Manual
5 Maintenance
24 3BSE009965R0401 en Rev F
Load cell PFTL 101B 2,0 3BSE004185R1
Load cell PFTL 101B 5,0 3BSE004191R1
Load cell PFTL 101B 10,0 3BSE004197R1
Load cell PFTL 101B 20,0 3BSE004203R1
Load cell PFTL 101BE 2,0 3BSE004214R1
Load cell PFTL 101BE 5,0 3BSE004215R1
Load cell PFTL 101BE 10,0 3BSE004216R1
Load cell PFTL 101BE 20,0 3BSE004217R1
Load cell PFTL 201BER 2,0 3BSE023158R1
Load cell PFTL 201BER 5,0 3BSE023159R1
Load cell PFTL 201BER 10,0 3BSE023160R1
Load cell PFTL 201BER 20,0 3BSE023161R1
Pressductor PillowBlock Load Cells, Horizontal Measuring PFTL 101, User Manual
5 Maintenance
3BSE009965R0401 en Rev F 25
6
Fault Tracing
6.1 General
It is important to be thoroughly familiar with the description of operation in
2 Description before starting fault tracing.
6.2 Interchangeability
The load cells are factory calibrated and can be replaced directly with another load cell of the same
type. The only adjustment required after load cell replacement is zero adjustment in the control
unit.
6.3 Fault Tracing Procedure
The measuring equipment can be divided into four parts:
• The mechanical installation.
• The load cell.
• The junction boxes and the cabling.
• The control unit (see the control unit manual).
The fault symptoms indicate in which part the fault lies.
• Faults in the mechanical installation often result in an unstable zero point or incorrect sensitivity.
If a fault follows something else in the process, such as temperature, or can be linked
to a particular operation, it probably originates from something in the mechanical installation.
• Load cells are extremely robust and can withstand five times their nominal load in the measuring direction. If a load cell has nevertheless been so overloaded that its data have been
altered, this is probably due to an event in the mill, such as web/strip breakage. On excessive overload the first thing that happens is that the zero point shifts.
• Problems such as interference or unstable zero point may be caused by wiring faults. Some
malfunctions may be due to the proximity of cables that cause interference. Incorrect installation, such as imbalance in a cable or screens earthed at more than one end may cause the
zero point to become unstable. Cables are subject to mechanical wear, and should be
checked regularly. The junction box should also be checked, especially if it is subject to
vibration.
• A fault in the control unit usually causes intermittent loss of a function. It is unusual for the
control unit to cause stability problems. Faults in connected units may affect the operation of
the control unit. For further details see the control unit manual.
Pressductor PillowBlock Load Cells, Horizontal Measuring PFTL 101, User Manual
6 Fault Tracing
26 3BSE009965R0401 en Rev F
6.4 Fault Tracing in the Mechanical Installation
There are a number of parts in the mechanical arrangement that can cause faults. The extent to
which these faults are repeatable differs. Possible causes fall into the following groups.
• Defective mounting surface or adapter plates.
• Force shunting.
• (nsufficient mounting of load cell and adapter plates.
• Rolls and bearings.
• Driven roll.
6.4.1 Defective Mounting Surface, Supp
