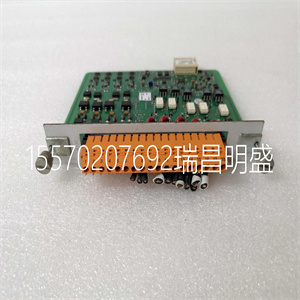

MLL1200 31.01.059U 主应用于模拟量数字控制器 PIAB

MLL1200 31.01.059U 主应用于模拟量数字控制器 PIAB
参数描述
Profibus On/Off可启用和禁用Profibus。
Profibus地址如果启用Profibus，PROFIBU地址
必须设置在000-125范围内。
测量范围如果启用Profibus，则Profibus
可设置测量范围和负载划分
分别用于Roll1和Roll2。
设置工厂
违约
你确定行动完成了吗
（显示1s）
测量范围
分段滚压
（仅在以下情况下显示：
Profibus已打开）
负荷分配
XXX。XXX N
测量范围
XXX。XXX N
测量范围
[XXX.XXX]N
混杂的
菜单
Profibus开/关
[ZZ]
Profibus开/关
ZZ
2.Profibus缩放：在系统定义中选择分段辊
现场总线地址
[ZZZ]
现场总线地址
ZZZ
（仅在以下情况下显示：
Profibus已打开）
到
服务菜单
来自DI
张力电子PFEA113，用户手册
第三章调试
3-44 3 BSE029382R0101 C版
默认缩放
称重传感器组合，称重传感器梳：一个或两个辊
SW1.0-1.7与SW1.8及更高版本略有不同。SW1.0-1.7中的差信号具有
表3-6中所示的不同比例因子。在SW1.8或更高版本中，每个
测量对象具有相同的比例。使用SW1.8或更高版本更换旧设备时
-必须在Profibus主设备中调整差信号的负载比例。
称重传感器组合，称重传感器梳：分段辊
如表3-6所示，更换时，必须在Profibus主设备中调整负载比例
SW1.8或更高版本的旧装置-装置。在9-12个称重传感器的情况下，所有传感器的比例相同
SW。
表3-6 Profibus测量值的缩放
1kN称重传感器示例（SW1.8）：
对于1 kN测力传感器和连接至AO 1的AI1+A+B（AI1+2测力传感器），值
低有效位是：
0.001 12 1000=12 N
测量范围：60000N
连接的称重传感器数量
至模拟输出通道
低有效位的值，
负荷分配（分辨率）
（Fnom=称重传感器标称负载）
SW 1.0-1.7、SW1.8及更高版本
一卷或两卷
•1或2个称重传感器0.001 2. Fnom 0.001 2. Fnom
•差信号0.001 Fnom 0.001 2. Fnom
分段辊
•3个称重传感器0.001 3. Fnom 0.001 12 Fnom
•4个称重传感器0.001 4. Fnom 0.001 12 Fnom
•5至8个称重传感器
（1至4个称重传感器+AI1）
0.001 8. Fnom 0.001 12 Fnom
•9至12个称重传感器
（1至4个称重传感器+AI1+AI2）
0.001 12 Fnom 0.001 12 Fnom
•差信号0.001 Fnom 0.001 12 Fnom
张力电子PFEA113，用户手册
第3.13.5节通过Profibus处理测量数据
3BSE029382R0101版本C 3-45
用户定义的缩放
Profibus测量范围和负载分配可根据用户进行调整
偏好。
Profibus测量范围
Profibus测量范围（正常运行期间估计的卷筒纸张力）是一个参数
由用户输入。用户更改测量范围值后，更改称重传感器
标称负载不影响Profibus缩放。定义了低有效位的值
作为负载划分。
负荷分配
负荷分配是Profibus上使用的分辨率。负荷分配值为：
由PFEA113计算并取决于设定的测量范围。
测量范围在2001-5000范围内分为有限的几个部分。
负载划分值=一个划分，仅包含一个有效数字（1、2或5）。
Profibus多可处理–32768到+32767（216）个分区。
例1：
a、 Profibus测量范围（用户设置）=15 500 N
（正常运行期间的预计腹板张力）
b、 PFEA113计算的负荷分配=5
MLL1200 31.01.059U 主应用于模拟量数字控制器 PIAB

MLL1200 31.01.059U 主应用于模拟量数字控制器 PIAB
arameter Description
Profibus On/Off The Profibus can be enabled and disabled.
Profibus Address If the Profibus is enabled, the Profibus address
must be set in the range 000 - 125.
Measuring Range If the Profibus is enabled, the Profibus
Measuring Range and load division can be set
for Roll1 and Roll2 separately.
SetFactory
Default
AreYouSure ActionDone
(shown for 1 s.)
MeasuringRange
SegmentedRoll
(Only shown if
Profibus is On)
LoadDivision
XXX.XXX N
MeasuringRange
XXX.XXX N
MeasuringRange
[XXX.XXX] N
Miscellaneous
Menu
Profibus On/Off
[ZZ]
Profibus On/Off
ZZ
2. Profibus Scaling: Segmented roll selected in SystemDefinition
ProfibusAddress
[ZZZ]
ProfibusAddress
ZZZ
(Only shown if
Profibus is On)
To
ServiceMenu
From DI
Tension Electronics PFEA113, User Manual
Chapter 3 Commissioning
3-44 3BSE029382R0101 Rev C
Default Scaling
Load Cell Combination, LoadCellComb: One or two rolls
SW 1.0-1.7 differs slightly from SW1.8 and later. The difference signal in SW1.0-1.7 has a
different scaling factor as illustrated in Table 3-6. In SW1.8 or later, all signals for each
measurement object have the same scaling. When replacing an older unit with an SW1.8 or later
-unit the load scaling for difference signals must be adjusted in the Profibus master.
Load Cell Combination, LoadCellComb: Segmented roll
As Table 3-6 illustrates the load scaling must be adjusted in the Profibus master when replacing
an old unit with SW1.8 or later -unit.. In the case of 9-12 load cells the scaling is the same for all
SW.
Table 3-6. Scaling of Profibus Measurement Values
Example for 1 kN load cells (SW1.8):
With 1 kN load cells, and with AI1+A+B (AI1 + 2 load cells) connected to the AO 1, the value
of the least significant bit is:
0.001  12  1000 = 12 N
Measuring range: 60 000 N
Number of load cells connected
to the analog output channel
Value of least significant bit,
Load Division (Resolution)
(Fnom = Load cell nominal load)
SW 1.0-1.7 SW1.8 and later
One or Two rolls
• 1 or 2 load cells 0.001  2  Fnom 0.001  2  Fnom
• Difference signal 0.001  Fnom 0.001  2  Fnom
Segmented roll
• 3 load cells 0.001  3  Fnom 0.001  12  Fnom
• 4 load cells 0.001  4  Fnom 0.001  12  Fnom
• 5 to 8 load cells
(1 to 4 load cells + AI1)
0.001  8  Fnom 0.001  12  Fnom
• 9 to 12 load cells
(1 to 4 load cells + AI1 + AI2)
0.001  12  Fnom 0.001  12  Fnom
• Difference signal 0.001  Fnom 0.001  12  Fnom
Tension Electronics PFEA113, User Manual
Section 3.13.5 Handling of Measurement Data through Profibus
3BSE029382R0101 Rev C 3-45
User Defined Scaling
The Profibus Measuring Range and Load Division can be adjusted according to user
preferences.
Profibus Measuring Range
Profibus Measuring Range (estimated web tension during normal operation) is a parameter
entered by the user. After the user has changed the Measuring Range value, changing Load cell
nominal load does not affect the Profibus scaling. The value of the least significant bit is defined
as Load Division.
Load Division
Load Division is the resolution that will be used on Profibus. The Load Division value is
calculated by PFEA113 and depends on the set measuring range.
The measuring range is divided into a limited number of divisions in the range 2001 - 5000.
The Load Division value = one division, contains only one significant digit (1, 2 or 5).
The Profibus can handle max. –32768 to +32767 (216) divisions.
Example 1:
a. Profibus Measuring Range (set by user) = 15 500 N
(estimated web tension during normal operation)
b. Load Division calculated by PFEA113 = 5
