张力电子PFEA113，用户手册
G.7.3节安装
3BSE029382R0101版本C G-9
*强度等级12.9必须用于PFTL 201C-50 kN和PFTL 201 D-100 kN的称重传感器。
图G-3.典型安装
表G-1.符合ISO 898/1的MoS2润滑镀锌螺钉
强度等级尺寸拧紧力矩
8.8*（12.9）M24 572（963）Nm
8.8*（12.9）M36 1960（3310）纳米
表G-2.符合ISO 3506的不锈钢打蜡螺钉
强度等级尺寸拧紧力矩
A2-80*M24 629纳米
A2-80*M36 2160纳米
压力导管
系统
上转接板
带挡块
下转接板
带挡块
卷
轴承箱
称重传感器
地基
张力电子PFEA113，用户手册
附录G PFTL 201-称重传感器安装设计
G-10 3BSE029382R0101 C版
G、 7.4布线
图G-4显示了如何为称重传感器安装电缆和保护软管
PFTL201CE和PFTL201DE。电缆和保护软管的方向可以改变。
注
带保护软管的电缆从其初始位置旋转角度不得超过180°
安装方向，否则会损坏电缆。
图G-4.PFTL 201CE和PFTL 201 DE的允许电缆敷设和保护软管
带保护软管的电缆
张力电子PFEA113，用户手册
G.8节称重传感器PFTL 201的技术数据
3BSE029382R0101版本C G-11
高压导管系统
张力电子PFEA113，用户手册
附录G PFTL 201-称重传感器安装设计
(176)
材料C/D/CE/DE不锈钢SIS 2387
DIN X4CrNiMo165
确
度等级
C/D/CE/DE
± 0.5
%
线性偏差±0.3
重复性误差<±0.05
滞后<0.2
补偿温度范围+20-+80（+68-+176）C(F）
零点漂移50（28）ppm/K
灵敏度漂移100（56）（ppm/F）
工作温度范围-10-+90（+14-+194）C(F）
零点漂移100（56）ppm/K
灵敏度漂移200（111）（ppm/F）
储存温度范围-40-+90（-40-+194）C(F）
表G-3不同类型称重传感器PFTL 201的技术数据
PFTL 201，
数据单元类型
张力电子PFEA113，用户手册
G.9节电缆图3BSE028144D0065，1/7页，版本D
3BSE029382R0101版本C G-13
G、 9电缆图3BSE028144D0065，1/7页，版本D
张力电子PFEA113，用户手册
附录G PFTL 201-称重传感器安装设计
G-14 3BSE029382R0101 C版
G、 10电缆图3BSE028144D0065，2/7页，版本D
张力电子PFEA113，用户手册
G.11节电缆图3BSE028144D0065，3/7页，版本D
3BSE029382R0101版本C G-15
G、 11电缆图3BSE028144D0065，3/7页，版本D
张力电子PFEA113，用户手册
附录G PFTL 201-称重传感器安装设计
G-16 3BSE029382R0101 C版
G、 12电缆图3BSE028144D0065，7/7页，版本D
张力电子PFEA113，用户手册
G.13节尺寸图，3BSE008723，D版
3BSE029382R0101 C版G-17ral公差符合SS-ISO2768-m
版本说明日期部门/初始。
D在Solid Works中重新绘制和更新。上一次修订表
已删除，存在于修订版C。2011-12-14 PA/FM/GF/LEN
向三方提供、使用或披露
未经明确授权，严禁使用。
C ABB AB
我们保留本文件中的所有权利，以及
在其中包含的信息中。复制
PA
PA
3BSE008723
尺寸图
称重传感器PFTL201-C
Lastcell PFTL201-C
en D 1
1.
拉尔斯·埃里克·尼尔森2011-12-14
Håkan F Wintzell
ABB AB
产品系列：661130 Bansp mätare VPBT/HPBT
响应部门
把…准备好
大约的。
文件编号
项目或订单号：
语言表修订版。
没有。
续/
2012-02-15
FM/GF
FM/GF
FM/GF
（Fo

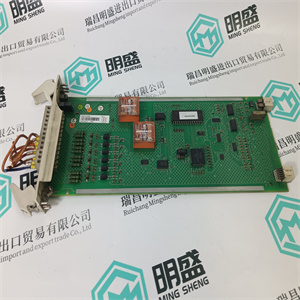

6205BZ10000K 125S2821-4 AA P195006 控制D/F主板用于驱动器 ABB
6205BZ10000K 125S2821-4 AA P195006 控制D/F主板用于驱动器 ABB
G-14 3BSE029382R0101 Rev C
G.10 Cable Diagram 3BSE028144D0065, Page 2/7, Rev. D
Tension Electronics PFEA113, User Manual
Section G.11 Cable Diagram 3BSE028144D0065, Page 3/7, Rev. D
3BSE029382R0101 Rev C G-15
G.11 Cable Diagram 3BSE028144D0065, Page 3/7, Rev. D
Tension Electronics PFEA113, User Manual
Appendix G PFTL 201 - Designing the Load Cell Installation
G-16 3BSE029382R0101 Rev C
G.12 Cable Diagram 3BSE028144D0065, Page 7/7, Rev. D
Tension Electronics PFEA113, User Manual
Section G.13 Dimension Drawing, 3BSE008723, Rev. D
3BSE029382R0101 Rev C G-17ral tolerances according to SS-ISO2768-m
REV DESCRIPTION DATE DEPT./INIT.
D Redrawn and uppdated in Solid Works. Previous revision table
remowed, exist on revision C. 2011-12-14 PA/FM/GF/LEN
duction, use or disclosure to third parties
without express authority is strictly forbidden.
C ABB AB
We reserve all rights in this document and
in the information contained therein. ReproPA
PA
PA
3BSE008723
Dimension drawing
Load Cell PFTL201-C
Lastcell PFTL201-C
en D 1
1
Lars-Erik Nilsson 2011-12-14
Håkan F Wintzell
ABB AB
Product family : 661130 Bansp mätare VPBT/HPBT
Resp.dept
Prep.
Appr.
Document number
Project or order number :
Lang. Sheet Rev.
No of sh.
Cont.sh./
2012-02-15
FM/GF
FM/GF
FM/GF
(For holes 8) 390 ±0,1
450 ±0,2
9 X 90°, Near Side
4 x Ø8.0 0
+0,058
DRILL 10
Tension Electronics PFEA113, User Manualeral tolerances according to SS-ISO2768-m
REV DESCRIPTION DATE DEPT./INIT.
D Redrawn and uppdated in Solid Works. Previous revision table
remowed, exist on revision C. 2011-12-14 PA/FM/GF/LEN
duction, use or disclosure to third parties
without express authority is strictly forbidden.
C ABB ABsion drawing
Load Cell PFTL201-D
Lastcell PFTL201-D
en D 1
1
Lars-Erik Nilsson 2011-12-14
Håkan F Wintzell
ABble
protection hose.
Min bending
General tolerances according to SS-ISO2768-m
REV DESCRIPTION DATE DEPT./INIT.
E Redrawn and uppdated in Solid Works. Previous revision table
remowed, exist on revision D. 2012-01-25 PA/FM/GF/LEN
F Adapter for hose added. Ø19 was 25 and radius 85 was 150 2017-01-09 IAMA/OE/SF
duction, use or disclosure to third parties
without express authority is strictly forbidden.oved Document status:
7UDQVYHUVHIRUFHFRPSRQHQW QRWPHDVXUHG ᤡ
REV DESCRIPTION DATE DEPT./INIT.
F Redrawn and uppdated in Solid Works. Previous revision table
remowed, exist on revision E. 2012-01-24 PA/FM/GF/LEN
G Adapter for hose added. Ø19 was Ø25 and radius 85 was 150 2017-01-12 IAMA/OE/SF
duction, use or disclosure to third parties
without express authority is strictly forbidden.
C ABB AB
We reserve all rights in this document and
in the information contained therein. ReproIAMA
IAMA
IAMA
3BSE008905
CAD outline drawing
Load Cell PFTL201-DE
Lastcell PFTL201-DE
en G 1
1
Sven Fischer 2017-01-12
Jan-Olov Skogqvistsion Electronics PFEA113, User Manual
Section G.17 Dimension Drawing, 3BSE008917, Rev. H
3BSE029382R0101 Rev C G-21
G.17 Dimension Drawing, 3BSE008917, Rev. H
Mass (weight) : App. 50kg
Manufacturing drawing: 3BSE030638D3300
REV DESCRIPTION DATE DEPT./INIT.
F Change to all english version, redrawn. 2009-04-23 PA/FM/GF/JK
G Drawing in S.W. was autocad. 2011-04-13 PA/FM/GF/SF
H Table "Technical material" added 2012-12-18 PA/FM/GF/SF
Technical material
Material description Material specification Material designation
Steel, through
hardened
Hardness 300-400 HB
Yield stress > 500MPa (N/mm²)
CTE 11-13 μm/m/°C
Remanent magnetism of
finished detail must be less
than 2 Gauss (0-0,2mT)
34CrNiMo6+QT900
Toolox 33, Toolox 44
S690(+QT)
W.nr. 1.6582+QT900
ASTM 4340
or equivalent
Martensitic stainless
Steel
Hardness 300-400 HB
Yield stress > 400MPa (N/mm²)
CTE 11-13 μm/m/°C
Remanent magnetism of
finished detail must be less
than 2 Gauss (0-0,2mT)
X12CrMoS13+AT
X20Cr13+A
W.nr.1.4005+AT, 1.4021+A
ASTM 416, 420
Tension Electronics PFEA113, User Manual
Appendix G PFTL 201 - Designing the Load Cell Installation
G-22 3BSE029382R0101 Rev C
G.18 Dimension Drawing, 3BSE008918, Rev. G
1; - B!#A 3CD#;A%*; <# 5&#!;@ 1;*$7# #
%& ?* C
Mass (weight) : App. 135kg
Manufacturing drawing: 3BSE0306638D3400
REV DESCRIPTION DATE DEPT./INIT.
E Change to all english version, redrawn and format A4 2009-04-23 PA/FM/GF/JK
F Drawing in S.W. was autocad. 2011-04-26 PA/FM/GF/SF
G Table "Technical material" added 2012-12-18 PA/FM/GF/SF
Technical material
Material description Material specification Material designation
Steel, through
hardened
Hardness 300-400 HB
Yield stress > 500MPa (N/mm²)
CTE 11-13 μm/m/°C
Remanent magnetism of
finished detail must be less
than 2 Gauss (0-0,2mT)
34CrNiMo6+QT900
Toolox 33, Toolox 44
S690(+QT)
W.nr. 1.6582+QT900
ASTM 4340
or equivalent
Martensitic stainless
Steel
Hardness 300-400 HB
Yield stress > 400MPa (N/mm²)
CTE 11-13 μm/m/°C
Remanent magnetism of
finished detail must be less
than 2 Gauss (0-0,2mT)
X12CrMoS13+AT
X20Cr13+A
No of sh.
Sheet Lang. Rev.
Project or order number :
Modify date :
Document number
Prep.
Appr.
Resp.dept
Product family :
Product type designation :
Product information :
661130 Bansp.mätare VPBT/HPBT
ABB AB
Håkan F Wintzell
2012-12-19 Sven Fischer
Tension Electronics PFEA113, User Manual
Section H.1 Document the Commissioning in this Form
3BSE029382R0101 Rev C H-1
Appendix H Actual Data and Settings at Commissioning
H.1 Document the Commissioning in this Form
Fill in actual data and settings to document the commissioning.
Display language
Display unit N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Web width m, inch
System Definition ONE ROLL
Gain scheduling Yes No
Object type Standard roll
Single side
Load cell nominal load kN, lbs
Wrap gain 1
Wrap gain 2
TWO ROLLS
Gain scheduling Yes No
Roll 1 Object type Standard roll
Single side
Load cell nominal load kN, lbs
Wrap gain 1
Wrap gain 2
Roll 2 Object type Standard roll
Single side
Load cell nominal load kN, lbs
Wrap gain 1
SEGMENTED ROLL
Gain scheduling Yes No
Segmented Roll Scale Factor (SRSF)
Object type One input
Two inputs
Three input
Four inputs
Load cell nominal load kN, lbs
Wrap gain 1
Wrap gain 2
If HangWeight has been used at commissioning, go to menu “EnterWrapGain”, read the
Wrap gain value calculated by the electronics and fill in this Wrap gain value in the table.
Tension Electronics PFEA113, User Manual
Appendix H Actual Data and Settings at Commissioning
H-2 3BSE029382R0101 Rev C
Analog Output 1 Off
Voltage
Current
Profibus only
Connect signals
Filter settings ms
High Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
High Output V, mA
Low Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
Low Output V, mA
High Limit V, mA
Low Limit V, mA
Analog Output 2 Off
Voltage
Current
Profibus only
Connect signals
Filter settings ms
High Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
High Output V, mA
Low Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
Low Output V, mA
High Limit V, mA
Low Limit V, mA
Analog Output 3 Off
Voltage
Current
Profibus only
Connect signals
Filter settings ms
High Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
High Output V, mA
Low Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
Low Output V, mA
High Limit V, mA
Low Limit V, mA
Tension Electronics PFEA113, User Manual
Section H.1 Document the Commissioning in this Form
3BSE029382R0101 Rev C H-3
Analog Output 4 Off
Voltage
Current
Profibus only
Connect signals
Filter settings ms
High Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
High Output V, mA
Low Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
Low Output V, mA
High Limit V, mA
Low Limit V, mA
Analog Output 5 Off
Voltage
Current
Profibus only
Connect signals
Filter settings ms
High Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
High Output V, mA
Low Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
Low Output V, mA
High Limit V, mA
Low Limit V, mA
Tension Electronics PFEA113, User Manual
Appendix H Actual Data and Settings at Commissioning
H-4 3BSE029382R0101 Rev C
Analog Output 6 Off
Voltage
Current
Profibus only
Connect signals
Filter settings ms
High Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
High Output V, mA
Low Tension N, kN, kg, lbs,
N/m, kN/m, kg/m,
pli
Low Output V, mA
High Limit V, mA
Low Limit V, mA
Digital Out 1 Define Function Off
High Active
Low Active
High and Low Active
Status
High Level N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Low Level N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Hysteresis N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Tension Electronics PFEA113, User Manual
Section H.1 Document the Commissioning in this Form
3BSE029382R0101 Rev C H-5
Digital Out 2 Define Function Off
High Activeevel N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Low Level N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Hysteresis N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Digital Out 3 Define Function Off
High Active
Low Active
High and Low Active
Status
Connect Signals AO1
High Level N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Low Level N, kN, kg, lbs, N/m,
kN/m, kg/m, pli
Hysteresis N, kN, kg, lbs, N/m,
kN/m, kg
6205BZ10000K 125S2821-4 AA P195006 控制D/F主板用于驱动器 ABB
