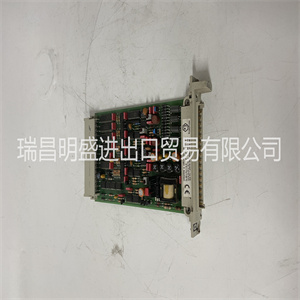

83SR03K-E GJR2342800R1500 原装ABB控制器卡件 价优售后服务
来自保护装置的操作信号连接至双跳闸输出
通过相应的主设备联系PO3（X100:15-19）和PO4（X100:20-24）
跳闸TRPPTRC1和TRPPTRC2。断路器的断开控制命令
从本地或远程CBXCBR1-exe_op或自动重合闸器DARREC1-
open_ cb直接连接到输出PO3（X100:15-19）。
TRPPTRC1和2提供锁定/闭锁功能、事件生成和
跳闸信号持续时间设置。如果选择了锁定操作模式，则一个二进制
输入可重新分配给主跳闸的RST_LKOUT输入，以启用
带有按钮的外部重置。
1MRS756378 K第3节
REF615标准配置
参考文献615:89
应用手册
A071376 V5 EN
图44：断路器控制
有两种类型的隔离开关和接地开关块可用。
DCSXSWI1…3和ESSSWI1…2仅为状态类型，而DCXSWI1…2和
ESXSWI1为可控型。默认情况下，仅连接状态块
标准配置逻辑。如果选可控操作，则可控
可以使用隔离开关和接地开关块的类型，而不是状态
这是的类型。可以完成控制块的连接和配置
使用PCM600。
附加卡X110的二进制输入5和6用于母线
隔离开关（DCSXSWI1）或断路器支架位置指示。
表31：二进制输入5和6表示的设备位置
待通电的一次设备位置输入
输入5（X110:8-9）输入6（X110:10-9）
母线隔离开关闭合x
母线隔离开关断开x
断路器台车处于工作位置x
断路器台车处于测试位置x
第3节1MRS756378 K
REF615标准配置
90参考文献615
应用手册
二进制输入7和8（X110:11-13）用于以下位置指示：
线路侧接地开关。
当ENA_CLOSE输入激活时，断路器闭合被启用。
输入可由配置逻辑激活，配置逻辑是
隔离开关或断路器支架和接地开关位置状态以及状态
主跳闸逻辑、气压报警和断路器弹簧充电。
DCSXSWI的OKPOS输出定义了隔离开关或断路器卡车是否：
对打开（测试位置）或关闭（维修位置）。这个，一起
在接地开关断开和非激活跳闸信号的情况下，激活闭合启用
向断路器控制功能块发送信号。开放操作始终是
启用。自动重合闸关闭命令信号直接连接到
输出触点PO1（X100:6-7）。
例如，ITL_BYPASS输入可用于始终启用关闭
当断路器支架处于试验位置时，断路器
当断路器转向架闭合时，联锁条件激活
服务位置。
如果ENA_ CLOSE和BLK_
从断路器控制功能块CBXCBR中删除
PCM600，该功能假设断路器关闭命令
连续允许。
断路器状态监控功能（SSCBR）监控电路
基于连接和测量的二进制输入信息的断路器状态
当前水平。该功能介绍了各种监督方法。这个
相应的监控报警信号被发送至LED 8。
1MRS756378 K第3节
REF615标准配置
参考文献615:91
应用手册
A071378 V4 EN
图45：报警指示
连接IED的信号输出，以提供以下方面的专用信息：
•启动任何保护功能SO1（X100:10-12）
•任何保护功能SO2的运行（跳闸）（X100:13-14）
•过电流保护功能SO2任何阶段的运行（跳闸）
（X110:17-19）
•接地故障保护功能SO3任何阶段的运行（跳闸）
（X110:20-22）
TPGAPC是定时器，用于设置输出的小脉冲长度。
IED中有四个通用定时器（TPGAPC1..4）。剩下的
功能图中未描述的功能可在PCM600中用于：
连接（如适用）。
第3节1MRS756378 K
REF615标准配置
92参考文献615
应用手册
3.8标准配置E
3.8.1应用
非定向过流和定向的标准配置
接地故障保护主要用于电缆和架空线路馈线
隔离和谐振接地配电网的应用。这个
配置还包括选择接地故障保护的附加选项
基于导纳或瓦特计原理。
默认情况下，具有标准配置的IED从工厂交付
设置和参数。终端用户在传入、传出和
IED内的内部信号指定使该配置更进一步
适用于不同的主电路布局和相关功能需求
修改t 83SR03K-E GJR2342800R1500 原装ABB控制器卡件 价优售后服务
 83SR03K-E GJR2342800R1500 原装ABB控制器卡件 价优售后服务
The operate signals from the protections are connected to the two trip output
contacts PO3 (X100:15-19) and PO4 (X100:20-24) via the corresponding Master
Trips TRPPTRC1 and TRPPTRC2. Open control commands to the circuit breaker
from local or remote CBXCBR1-exe_op or from the auto-recloser DARREC1-
open_cb are connected directly to the output PO3 (X100:15-19).
TRPPTRC1 and 2 provide the lockout/latching function, event generation and the
trip signal duration setting. If the lockout operation mode is selected, one binary
input can be reassigned to the RST_LKOUT input of the Master Trip to enable
external reset with a push button.
1MRS756378 K Section 3
REF615 standard configurations
REF615 89
Application Manual
A071376 V5 EN
Figure 44: Circuit breaker control
There are two types of disconnector and earthing switch blocks available.
DCSXSWI1...3 and ESSXSWI1...2 are status only type, and DCXSWI1...2 and
ESXSWI1 are controllable type. By default, the status only blocks are connected in
standard configuration logic. If controllable operation is preferred, the controllable
type of disconnector and earthing switch blocks can be used instead of the status
only type. The connection and configuration of the control blocks can be done
using PCM600.
The binary inputs 5 and 6 of the additional card X110 are used for busbar
disconnector (DCSXSWI1) or circuit-breaker truck position indication.
Table 31: Device positions indicated by binary inputs 5 and 6
Primary device position Input to be energized
Input 5 (X110:8-9) Input 6 (X110:10-9)
Busbar disconnector closed x
Busbar disconnector open x
Circuit breaker truck in service position x
Circuit breaker truck in test position x
Section 3 1MRS756378 K
REF615 standard configurations
90 REF615
Application Manual
The binary inputs 7 and 8 (X110:11-13) are designed for the position indication of
the line-side earth switch.
The circuit breaker closing is enabled when the ENA_CLOSE input is activated.
The input can be activated by the configuration logic, which is a combination of
the disconnector or breaker truck and earth-switch position statuses and the statuses
of the master trip logics and gas pressure alarm and circuit-breaker spring charging.
The OKPOS output from DCSXSWI defines if the disconnector or breaker truck is
definitely either open (in test position) or close (in service position). This, together
with the open earth-switch and non-active trip signals, activates the close-enable
signal to the circuit breaker control function block. The open operation is always
enabled. The auto-recloser close command signals are directly connected to the
output contact PO1 (X100:6-7).
The ITL_BYPASS input can be used, for example, to always enable the closing of
the circuit breaker when the circuit breaker truck is in the test position, despite of
the interlocking conditions being active when the circuit breaker truck is closed in
service position.
If the ENA_CLOSE and BLK_CLOSE signals are completely
removed from the breaker control function block CBXCBR with
PCM600, the function assumes that the breaker close commands
are allowed continuously.
The circuit breaker condition monitoring function (SSCBR) supervises the circuit
breaker status based on the binary input information connected and measured
current levels. The function introduces various supervision methods. The
corresponding supervision alarm signals are routed to LED 8.
1MRS756378 K Section 3
REF615 standard configurations
REF615 91
Application Manual
A071378 V4 EN
Figure 45: Alarm indication
The signal outputs from the IED are connected to give dedicated information on:
• Start of any protection function SO1 (X100:10-12)
• Operation (trip) of any protection function SO2 (X100:13-14)
• Operation (trip) of any stage of the overcurrent protection function SO2
(X110:17-19)
• Operation (trip) of any stage of the earth-fault protection function SO3
(X110:20-22)
TPGAPC are timers and used for setting the minimum pulse length for the outputs.
There are four generic timers (TPGAPC1..4) available in the IED. The remaining
ones not described in the functional diagram are available in PCM600 for
connection where applicable.
Section 3 1MRS756378 K
REF615 standard configurations
92 REF615
Application Manual
3.8 Standard configuration E
3.8.1 Applications
The standard configuration for non-directional overcurrent and directional
earthfault protection is mainly intended for cable and overhead-line feeder
applications in isolated and resonant-earthed distribution networks. The
configuration also includes additional options to select earth-fault protection based
on admittance or wattmetric based principle.
The IED with a standard configuration is delivered from the factory with default
settings and parameters. The end-user flexibility for incoming, outgoing and
internal signal designation within the IED enables this configuration to be further
adapted to different primary circuit layouts and the related functionality needs by
modifying the internal functionality using PCM600.
3.8.2 Functions
Table 32: Functions included in the standard configuration E
Function IEC 61850 IEC 60617 IEC-ANSI
Protection
Three-phase non-directional overcurrent
protection, low stage, instance 1 PHLPTOC1 3I> (1) 51P-1 (1)
Three-phase non-directional overcurrent
protection, high stage, instance 1 PHHPTOC1 3I>> (1) 51P-2 (1)
Three-phase non-directional overcurrent
protection, high stage, instance 2 PHHPTOC2 3I>> (2) 51P-2 (2)
Three-phase non-directional overcurrent
protection, instantaneous stage, instance 1 PHIPTOC1 3I>>> (1) 50P/51P (1)
Directional earth-fault protection, low stage,
instance 1 DEFLPDEF1 Io> -> (1) 67N-1 (1)
Directional earth-fault protection, low stage,
instance 2 DEFLPDEF2 Io> -> (2) 67N-1 (2)
Directional earth-fault protection, high stage DEFHPDEF1 Io>> -> 67N-2
Admittance based earth-fault protection,
instance 1 EFPADM1 Yo> -> (1) 21YN (1)
Admittance based earth-fault protection,
instance 2 EFPADM2 Yo> -> (2) 21YN (2)
Admittance based earth-fault protection,
instance 3 EFPADM3 Yo> -> (3) 21YN (3)
Wattmetric based earth-fault protection,
instance 1 WPWDE1 Po> -> (1) 32N (1)
Wattmetric based earth-fault protection,
instance 2 WPWDE2 Po> -> (2) 32N (2)
Wattmetric based earth-fault protection,
instance 3 WPWDE3 Po> -> (3) 32N (3)
Transient / intermittent earth-fault protection INTRPTEF1 Io> -> IEF 67NIEF
Table continues on next page
1MRS756378 K Section 3
REF615 standard configurations
REF615 93
Application Manual
Function IEC 61850 IEC 60617 IEC-ANSI
Non-directional (cross-country) earth fault
protection, using calculated Io EFHPTOC1 Io>> (1) 51N-2 (1)
Negative-sequence overcurrent protection,
instance 1 NSPTOC1 I2> (1) 46 (1)
Negative-sequence overcurrent protection,
instance 2 NSPTOC2 I2> (2) 46 (2)
Phase discontinuity protection PDNSPTOC1 I2/I1> 46PD
Residual overvoltage protection, instance 1 ROVPTOV1 Uo> (1) 59G (1)
Residual overvoltage protection, instance 2 ROVPTOV2 Uo> (2) 59G (2)
Residual overvoltage protection, instance 3 ROVPTOV3 Uo> (3) 59G (3)
Three-phase thermal protection for feeders,
cables and distribution transformers T1PTTR1 3Ith>F 49F
Circuit breaker failure protection CCBRBRF1 3I>/Io>BF 51BF/51NBF
Three-phase inrush detector INRPHAR1 3I2f> 68
Master trip, instance 1 TRPPTRC1 Master Trip (1) 94/86 (1)
Master trip, instance 2 TRPPTRC2 Master Trip (2) 94/86 (2)
Arc protection, instance 1 ARCSARC1 ARC (1) 50L/50NL (1)
Arc protection, instance 2 ARCSARC2 ARC (2) 50L/50NL (2)
Arc protection, instance 3 ARCSARC3 ARC (3) 50L/50NL (3)
Control
Circuit-breaker control CBXCBR1 I <-> O CB I <-> O CB
Disconnector control, instance 1 DCXSWI1 I <-> O DCC
(1)
I <-> O DCC
(1)
Disconnector control, instance 2 DCXSWI2 I <-> O DCC
(2)
I <-> O DCC
(2)
Earthing switch control ESXSWI1 I <-> O ESC I <-> O ESC
Disconnector position indication, instance 1 DCSXSWI1 I <-> O DC (1) I <-> O DC (1) | 83SR03K-E GJR2342800R1500 原装ABB控制器卡件 价优售后服务 | | | |
