ABB 控制板 87TS01I-E GJR2368900R2340d由配置逻辑确定，它是
隔离开关或断路器支架和接地开关位置状态以及状态
主跳闸逻辑、气压报警和断路器弹簧充电。
DCSXSWI的OKPOS输出定义了隔离开关或断路器卡车是否：
对打开（测试位置）或关闭（维修位置）。这个，一起
在接地开关断开和非激活跳闸信号的情况下，激活闭合启用
向断路器控制功能块发送信号。开放操作始终是
启用。自动重合闸关闭命令信号直接连接到
输出触点PO1（X100:6-7）。
例如，ITL_BYPASS输入可用于始终启用关闭
当断路器支架处于试验位置时，断路器
当断路器转向架闭合时，联锁条件激活
服务位置。
如果ENA_ CLOSE和BLK_
从断路器控制功能块CBXCBR中删除
PCM600，该功能假设断路器关闭命令
连续允许。
断路器状态监控功能（SSCBR）监控电路
基于连接和测量的二进制输入信息的断路器状态
当前水平。该功能介绍了各种监督方法。这个
相应的监控报警信号被发送至LED 8。
1MRS756378 K第3节
REF615标准配置
参考文献615:91
应用手册
A071378 V4 EN
图45：报警指示
连接IED的信号输出，以提供以下方面的专用信息：
•启动任何保护功能SO1（X100:10-12）
•任何保护功能SO2的运行（跳闸）（X100:13-14）
•过电流保护功能SO2任何阶段的运行（跳闸）
（X110:17-19）
•接地故障保护功能SO3任何阶段的运行（跳闸）
（X110:20-22）
TPGAPC是定时器，用于设置输出的小脉冲长度。
IED中有四个通用定时器（TPGAPC1..4）。剩下的
功能图中未描述的功能可在PCM600中用于：
连接（如适用）。
第3节1MRS756378 K
REF615标准配置
92参考文献615
应用手册
3.8标准配置E
3.8.1应用
非定向过流和定向的标准配置
接地故障保护主要用于电缆和架空线路馈线
隔离和谐振接地配电网的应用。这个
配置还包括选择接地故障保护的附加选项
基于导纳或瓦特计原理。
默认情况下，具有标准配置的IED从工厂交付
设置和参数。终端用户在传入、传出和
IED内的内部信号指定使该配置更进一步
适用于不同的主电路布局和相关功能需求
使用PCM600修改内部功能。
3.8.2功能
表32：标准配置E中包含的功能
功能IEC 61850 IEC 60617 IEC-ANSI
保护
三相无方向过电流
保护，低级，实例1 PHLPTOC1 3I>（1）51P-1（1）
三相无方向过电流
保护，级，实例1 PHHPTOC1 3I>>（1）51P-2（1）
三相无方向过电流
保护，级，实例2 PHHPTOC2 3I>>（2）51P-2（2）
三相无方向过电流
保护，瞬时级，实例1 PHIPTOC1 3I>>>（1）50P/51P（1）
定向接地故障保护，低级，
实例1 DEFLPDEF1 Io>->（1）67N-1（1）
定向接地故障保护，低级，
实例2 DEFLPDEF2 Io>->（2）67N-1（2）
定向接地故障保护，级DEFHPDEF1 Io>->67N-2
基于导纳的接地故障保护，
实例1 EFPADM1 Yo>->（1）21YN（1）
基于导纳的接地故障保护，
实例2 EFPADM2 Yo>->（2）21YN（2）
基于导纳的接地故障保护，
实例3 EFPADM3 Yo>->（3）21YN（3）
基于瓦特计的接地故障保护，
实例1 WPWDE1 Po>->（1）32N（1）
基于瓦特计的接地故障保护，
实例2 WPWDE2 Po>->（2）32N（2）
基于瓦特计的接地故障保护，
实例3 WPWDE3 Po>->（3）32N（3）
瞬态/间歇性接地故障保护INTRPTEF1 Io>->IEF 67NIEF
下一页续表
1MRS756378 K第3节
REF615标准配置
参考文献615:93
应用手册
功能IEC 61850 IEC 60617 IEC-ANSI
非定向（越野）接地故障
保护，使用计算Io EFHPTOC1 Io>>（1）51N-2（1）
负序过电流保护，
实例1 NSPTOC1 I2>（1）46（1）
负序过电流保护，
实例2 NSPTOC2 I2>（2）46（2）
相位不连续保护PDNSPTOC1 I2/I1＞46PD
剩余过电压保护，例如1 ROVPTOV1 Uo>（1）59G（1）
剩余过电压保护，例如2 ROVPTOV2 Uo>（2）59G（2）
雷斯 顺丰包邮

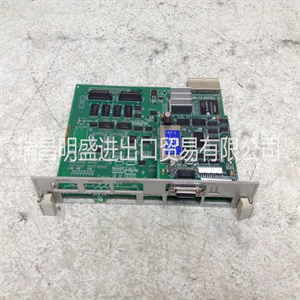

ABB 控制板 87TS01I-E GJR2368900R2340 顺丰包邮
 ABB 控制板 87TS01I-E GJR2368900R2340 顺丰包邮
d by the configuration logic, which is a combination of
the disconnector or breaker truck and earth-switch position statuses and the statuses
of the master trip logics and gas pressure alarm and circuit-breaker spring charging.
The OKPOS output from DCSXSWI defines if the disconnector or breaker truck is
definitely either open (in test position) or close (in service position). This, together
with the open earth-switch and non-active trip signals, activates the close-enable
signal to the circuit breaker control function block. The open operation is always
enabled. The auto-recloser close command signals are directly connected to the
output contact PO1 (X100:6-7).
The ITL_BYPASS input can be used, for example, to always enable the closing of
the circuit breaker when the circuit breaker truck is in the test position, despite of
the interlocking conditions being active when the circuit breaker truck is closed in
service position.
If the ENA_CLOSE and BLK_CLOSE signals are completely
removed from the breaker control function block CBXCBR with
PCM600, the function assumes that the breaker close commands
are allowed continuously.
The circuit breaker condition monitoring function (SSCBR) supervises the circuit
breaker status based on the binary input information connected and measured
current levels. The function introduces various supervision methods. The
corresponding supervision alarm signals are routed to LED 8.
1MRS756378 K Section 3
REF615 standard configurations
REF615 91
Application Manual
A071378 V4 EN
Figure 45: Alarm indication
The signal outputs from the IED are connected to give dedicated information on:
• Start of any protection function SO1 (X100:10-12)
• Operation (trip) of any protection function SO2 (X100:13-14)
• Operation (trip) of any stage of the overcurrent protection function SO2
(X110:17-19)
• Operation (trip) of any stage of the earth-fault protection function SO3
(X110:20-22)
TPGAPC are timers and used for setting the minimum pulse length for the outputs.
There are four generic timers (TPGAPC1..4) available in the IED. The remaining
ones not described in the functional diagram are available in PCM600 for
connection where applicable.
Section 3 1MRS756378 K
REF615 standard configurations
92 REF615
Application Manual
3.8 Standard configuration E
3.8.1 Applications
The standard configuration for non-directional overcurrent and directional
earthfault protection is mainly intended for cable and overhead-line feeder
applications in isolated and resonant-earthed distribution networks. The
configuration also includes additional options to select earth-fault protection based
on admittance or wattmetric based principle.
The IED with a standard configuration is delivered from the factory with default
settings and parameters. The end-user flexibility for incoming, outgoing and
internal signal designation within the IED enables this configuration to be further
adapted to different primary circuit layouts and the related functionality needs by
modifying the internal functionality using PCM600.
3.8.2 Functions
Table 32: Functions included in the standard configuration E
Function IEC 61850 IEC 60617 IEC-ANSI
Protection
Three-phase non-directional overcurrent
protection, low stage, instance 1 PHLPTOC1 3I> (1) 51P-1 (1)
Three-phase non-directional overcurrent
protection, high stage, instance 1 PHHPTOC1 3I>> (1) 51P-2 (1)
Three-phase non-directional overcurrent
protection, high stage, instance 2 PHHPTOC2 3I>> (2) 51P-2 (2)
Three-phase non-directional overcurrent
protection, instantaneous stage, instance 1 PHIPTOC1 3I>>> (1) 50P/51P (1)
Directional earth-fault protection, low stage,
instance 1 DEFLPDEF1 Io> -> (1) 67N-1 (1)
Directional earth-fault protection, low stage,
instance 2 DEFLPDEF2 Io> -> (2) 67N-1 (2)
Directional earth-fault protection, high stage DEFHPDEF1 Io>> -> 67N-2
Admittance based earth-fault protection,
instance 1 EFPADM1 Yo> -> (1) 21YN (1)
Admittance based earth-fault protection,
instance 2 EFPADM2 Yo> -> (2) 21YN (2)
Admittance based earth-fault protection,
instance 3 EFPADM3 Yo> -> (3) 21YN (3)
Wattmetric based earth-fault protection,
instance 1 WPWDE1 Po> -> (1) 32N (1)
Wattmetric based earth-fault protection,
instance 2 WPWDE2 Po> -> (2) 32N (2)
Wattmetric based earth-fault protection,
instance 3 WPWDE3 Po> -> (3) 32N (3)
Transient / intermittent earth-fault protection INTRPTEF1 Io> -> IEF 67NIEF
Table continues on next page
1MRS756378 K Section 3
REF615 standard configurations
REF615 93
Application Manual
Function IEC 61850 IEC 60617 IEC-ANSI
Non-directional (cross-country) earth fault
protection, using calculated Io EFHPTOC1 Io>> (1) 51N-2 (1)
Negative-sequence overcurrent protection,
instance 1 NSPTOC1 I2> (1) 46 (1)
Negative-sequence overcurrent protection,
instance 2 NSPTOC2 I2> (2) 46 (2)
Phase discontinuity protection PDNSPTOC1 I2/I1> 46PD
Residual overvoltage protection, instance 1 ROVPTOV1 Uo> (1) 59G (1)
Residual overvoltage protection, instance 2 ROVPTOV2 Uo> (2) 59G (2)
Residual overvoltage protection, instance 3 ROVPTOV3 Uo> (3) 59G (3)
Three-phase thermal protection for feeders,
cables and distribution transformers T1PTTR1 3Ith>F 49F
Circuit breaker failure protection CCBRBRF1 3I>/Io>BF 51BF/51NBF | ABB 控制板 87TS01I-E GJR2368900R2340 顺丰包邮 | | | |
