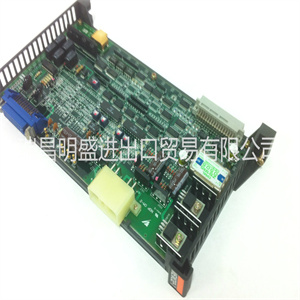

ABB 07ZE61R302 GJV3074321R302 PLC控制模块DCS处理 顺丰包邮.
<->O直流电（3）
接地开关指示，例如1 ESSXSWI1 I<->O ES（1）I<->O ES（2）
接地开关指示，例如2 ESSXSWI2 I<->O ES（2）I<->O ES（3）
自动重合闸DARREC1 O->I 79
状态监测
断路器状态监测SSCBR1 CBCM CBCM
跳闸电路监控，例如1 TCSCBR1 TCS（1）TCM（1）
跳闸电路监控，实例2 TCSCBR2 TCS（2）TCM（2）
电流电路监控CCRDIF1 MCS 3I MCS 3I
保险丝故障监控SEQRFUF1 FUSEF 60
测量
干扰记录器RDRE1--
三相电流测量，例如1 CMMXU1 3I 3I
顺序电流测量CSMSQI1 I1、I2、I0 I1、I2、I2
剩余电流测量，实例1 RESCMMSU1 Io In
三相电压测量VMMXU1 3U 3U
剩余电压测量RESVMMXU1 Uo Vn
序列电压测量VSMSQI1 U1、U2、U0 U1、U2、U2
三相功率和能量测量PEMMXU1 P、E P、E
第3节1MRS756378 K
REF615标准配置
112参考文献615
应用手册
3.9.2.1默认I/O连接
表39：二进制输入的默认连接
二进制输入默认使用连接器引脚
X110-BI1 MCB开路X110-1,2
X110-BI2方向接地故障保护的基本角度控制X110-3,4
X110-BI3断路器低气压指示X110-5,6
X110-BI4断路器弹簧充电指示X110-7,6
X110-BI5断路器台车处于（工作位置）指示X110-8,9
X110-BI6断路器卡车出（测试位置）指示X110-10,9
X110-BI7接地开关闭合指示X110-11,12
X110-BI8接地开关断开指示X110-13,12
X120-BI1阻断过电流瞬时级X120-1,2
X120-BI2断路器闭合指示X120-3,2
X120-BI3断路器断开指示X120-4,2
X120-BI4锁定复位X120-5,6
表40：二进制输出的默认连接
二进制输出默认使用连接器引脚
X100-PO1闭合断路器X100-6,7
X100-PO2断路器故障，上游断路器X100-8,9的备用跳闸
X100-SO1一般启动指示X100-10,11，（12）
X100-SO2一般操作指示X100-13,14
X100-PO3断路器/跳闸线圈1 X100-15-19
X100-PO4断路器/跳闸线圈2 X100-20-24
X110-SO1上游过电流闭锁X110-14,15
X110-SO2过电流运行报警X110-17,18
X110-SO3接地故障操作警报X110-20,21
X110-SO4电压保护操作报警X110-23,24
表41：LED的默认连接
LED默认使用
1.过电流保护操作
2接地故障保护运行
3电压保护操作
4负序过电流或相位不连续保护运行
5热过载保护运行
6.断路器故障保护，后备保护操作
7干扰记录器触发
8断路器状态监测报警
下一页续表
1MRS756378 K第3节
REF615标准配置
参考文献615113
应用手册
LED默认使用
9监控报警
检测到10个电弧故障
11.正在自动重新关闭
3.9.2.2默认干扰记录器设置
表42：默认模拟信道选择和文本设置
此外，默认连接的所有数字输入也将启用
设置。默认触发设置取决于
连接输入信号类型。通常，选择所有保护启动信号以：
触发默认记录的干扰。
3.9.3功能图
功能图描述了默认输入、输出、报警LED和功能到功能连接。可以使用查看和更改默认连接
如有必要，根据应用要求提供PCM600。
模拟通道具有指向不同功能块的固定连接
在IED的标准配置中。这条规则的例外是12
用于干扰记录器功能的模拟通道。这些渠道是：
可自由选择，是干扰记录器参数设置的一部分。
模拟信道分配给不同的功能。公共信号
3I表示三相电流，3U表示三相电压。
标有Io的信号表示通过磁芯测得的剩余电流
平衡电流互感器。标有Uo的信号表示测量值
通过开放三角形连接的电压互感器的剩余电压。
第3节1MRS756378 K
REF615标准配置
114参考文献615
应用手册
双（越野）接地故障的EFHPTOC保护功能块
使用源自测量相电流的计算剩余电流。
3.9.3.1保护功能图
功能图详细描述了IED的保护功能，以及
想象工厂设置的默认连接。
四个过电流级可用于过电流和短路保护。
其中三个包括方向功能（DPHxPDOC）。非定向
瞬时阶段（PHIPTOC1）可通过给bina通电来阻止 ABB 07ZE61R302 GJV3074321R302 PLC控制模块DCS处理 顺丰包邮
 ABB 07ZE61R302 GJV3074321R302 PLC控制模块DCS处理 顺丰包邮
<-> O DC (3)
Earthing switch indication, instance 1 ESSXSWI1 I <-> O ES (1) I <-> O ES (1)
Earthing switch indication, instance 2 ESSXSWI2 I <-> O ES (2) I <-> O ES (2)
Auto-reclosing DARREC1 O -> I 79
Condition monitoring
Circuit-breaker condition monitoring SSCBR1 CBCM CBCM
Trip circuit supervision, instance 1 TCSSCBR1 TCS (1) TCM (1)
Trip circuit supervision, instance 2 TCSSCBR2 TCS (2) TCM (2)
Current circuit supervision CCRDIF1 MCS 3I MCS 3I
Fuse failure supervision SEQRFUF1 FUSEF 60
Measurement
Disturbance recorder RDRE1 - -
Three-phase current measurement, instance 1 CMMXU1 3I 3I
Sequence current measurement CSMSQI1 I1, I2, I0 I1, I2, I0
Residual current measurement, instance 1 RESCMMXU1 Io In
Three-phase voltage measurement VMMXU1 3U 3U
Residual voltage measurement RESVMMXU1 Uo Vn
Sequence voltage measurement VSMSQI1 U1, U2, U0 U1, U2, U0
Three-phase power and energy measurement PEMMXU1 P, E P, E
Section 3 1MRS756378 K
REF615 standard configurations
112 REF615
Application Manual
3.9.2.1 Default I/O connections
Table 39: Default connections for binary inputs
Binary input Default usage Connector pins
X110-BI1 MCB open X110-1,2
X110-BI2 Directional earth fault protection's basic angle control X110-3,4
X110-BI3 Circuit breaker low gas pressure indication X110-5,6
X110-BI4 Circuit breaker spring charged indication X110-7,6
X110-BI5 Circuit breaker truck in (service position) indication X110-8,9
X110-BI6 Circuit breaker truck out (test position) indication X110-10,9
X110-BI7 Earthing switch closed indication X110-11,12
X110-BI8 Earthing switch open indication X110-13,12
X120-BI1 Blocking of overcurrent instantaneous stage X120-1,2
X120-BI2 Circuit breaker closed indication X120-3,2
X120-BI3 Circuit breaker open indication X120-4,2
X120-BI4 Lock-out reset X120-5,6
Table 40: Default connections for binary outputs
Binary output Default usage Connector pins
X100-PO1 Close circuit breaker X100-6,7
X100-PO2 Breaker failure backup trip to upstream breaker X100-8,9
X100-SO1 General start indication X100-10,11,(12)
X100-SO2 General operate indication X100-13,14
X100-PO3 Open circuit breaker/trip coil 1 X100-15-19
X100-PO4 Open circuit breaker/trip coil 2 X100-20-24
X110-SO1 Upstream overcurrent blocking X110-14,15
X110-SO2 Overcurrent operate alarm X110-17,18
X110-SO3 Earth fault operate alarm X110-20,21
X110-SO4 Voltage protection operate alarm X110-23,24
Table 41: Default connections for LEDs
LED Default usage
1 Overcurrent protection operated
2 Earth-fault protection operated
3 Voltage protection operated
4 Negative-sequence overcurrent or phase discontinuity protection operated
5 Thermal overload protection operated
6 Circuit-breaker failure protection backup protection operated
7 Disturbance recorder triggered
8 Circuit-breaker condition monitoring alarm
Table continues on next page
1MRS756378 K Section 3
REF615 standard configurations
REF615 113
Application Manual
LED Default usage
9 Supervision alarm
10 Arc fault detected
11 Autoreclose in progress
3.9.2.2 Default disturbance recorder settings
Table 42: Default analog channel selection and text settings
Additionally, all the digital inputs that are connected by default are also enabled
with the setting. Default triggering settings are selected depending on the
connected input signal type. Typically all protection START signals are selected to
trigger the disturbance recorded by default.
3.9.3 Functional diagrams
The functional diagrams describe the default input, output, alarm LED and functionto-function connections. The default connections can be viewed and changed with
PCM600 according to the application requirements, if necessary.
The analog channels have fixed connections towards the different function blocks
inside the IED’s standard configuration. Exceptions from this rule are the 12
analog channels available for the disturbance recorder function. These channels are
freely selectable and a part of the disturbance recorder’s parameter settings.
The analog channels are assigned to different functions. The common signal
marked with 3I represents the three phase currents and 3U the three phase voltages.
The signal marked with Io represents the measured residual current via a core
balance current transformer. The signal marked with Uo represents the measured
residual voltage via open-delta connected voltage transformers.
Section 3 1MRS756378 K
REF615 standard configurations
114 REF615
Application Manual
The EFHPTOC protection function block for double (cross-country) earth-faults
uses the calculated residual current originating from the measured phase currents.
3.9.3.1 Functional diagrams for protection
The functional diagrams describe the IED’s protection functionality in detail and
picture the factory set default connections.
Four overcurrent stages are available for overcurrent and short-circuit protection.
Three of them include directional functionality (DPHxPDOC). The non-directional
instantaneous ABB 07ZE61R302 GJV3074321R302 PLC控制模块DCS处理 顺丰包邮
| | | |
