.将RCU链路电缆的另一端连接到备份CPU。
6.接通备用CPU的电源。
BC820 TK857V003电缆更换缺陷
要在冗余CPU配置中交换TK857V003电缆，请执行
以下步骤：
1.关闭或断开备用CPU的电源。
2.关闭或断开BC820的电源，如果外部电源：
有联系的。
3.断开电缆与备用CPU的连接。
4.断开电缆与BC820的连接。
5.将新电缆连接到备份CPU
6.将电缆的另一端连接到BC820。
7.接通或重新连接备用CPU和BC820的电源。
BC820电缆的任何断开，即TK857V003，千兆交叉
电缆和50/125µm OM3光纤只能在
正在运行的控制器的备份端。
仅当CPU和
BC820关闭。
纠正性维护程序第5节维护
212 3BSE036351-600 A
纠正性维护程序
更换保险丝-模块总线和CEX总线
要更换TP830内部模块总线和CEX总线保险丝：
1.使用刀片螺丝刀，松开
PM8xx盖。
2.小心地卸下处理器单元。
3.识别右侧的模块总线和CEX总线保险丝座
TP830基板。
4.使用刀片螺丝刀，小心地拧下包含
有缺陷的保险丝。拆下保险丝。
5.插入新保险丝并更换保险丝座。
6.更换处理器单元并拧紧盖螺钉。
7.检查相关LED是否亮起。
本主题不适用于不包含内部保险丝的PM891。
•上保险丝座-模块总线-保险丝2 AF
•下部保险丝座–CEX总线–保险丝3.15 AF
•上保险丝座-模块总线-保险丝2 AF
•下部保险丝座–CEX总线–保险丝3.15 AF
第5节维护故障查找程序
3BSE036351-600 A 213
故障查找程序
以下章节描述了基本的故障查找程序。完整的
有关说明，请联系ABB支持。
单CPU配置的PM8xx处理器单元
表25.PM8xx–故障查找程序
故障、可能原因和纠正措施
F（ault）指示灯亮起，控制器重新启动（初始化）正在进行。
•等待控制器重启完成。
缺少固件。
•升级固件。
固件升级正在进行中。
•等待FW升级完成。
固件升级失败。
•使用串行固件升级。
缺少TB852
•检查TB852连接
（PM858、PM861、PM862、PM864、PM865，
PM866和PM867）。
另外
•检查控制器日志。
F（ault）指示灯闪烁，固件升级正在进行：
•等待FW升级完成。
另外
•检查控制器日志。
R（un）LED熄灭，控制器中未加载任何应用程序。
•下载应用程序。
控制器应用程序失败。
•重启控制器（初始化按钮）。
•下载应用程序。
冗余配置的PM858/PM861/PM862/PM864/PM865/PM866/PM867/PM891单元
214 3BSE036351-600 A
冗余的PM858/PM861/PM862/PM864/PM865/PM866/PM867/PM891单元
配置
B（蓄电池）指示灯闪烁，蓄电池电压（内部或外部）低于3.1 V
或者不存在。
•安装新电池。
外部电池电缆断开。
•连接外部电池电缆。
参见第219页的故障查找表30。
表26.PM858/PM861/PM862/PM864/PM865/PM866/PM867/PM891
冗余配置-故障查找程序
故障、可能原因和纠正措施
双LED均熄灭
中央处理器
CPU正在重新启动的过程中
或者被配置。留出时间完成这项工作。
RCU链路电缆断开。
•连接RCU链路电缆。
两个CPU中的控制软件不同。
•升级具有相同控制的CPU
软件

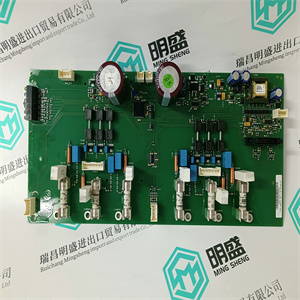

故障指示灯亮起检查控制器日志。 356300-J2 模拟量控制器安装于DCS系统控制板 VIDEOJET
 356300-J2 模拟量控制器安装于DCS系统控制板 VIDEOJET
. Attach the other end of RCU link cable to the backup CPU.
6. Switch ON the Power to the backup CPU.
Exchanging Defect BC820 TK857V0003 Cable
To exchange a TK857V0003 cable in a redundant CPU configuration, perform the
following steps:
1. Switch OFF or disconnect Power for the backup CPU.
2. Switch OFF or disconnect Power for the BC820, if external power is
connected.
3. Disconnect the cable from the backup CPU.
4. Disconnect the cable from the BC820.
5. Attach the new cable to the backup CPU
6. Attach the other end of the cable to the BC820.
7. Switch ON or reconnect the Power to the backup CPU and the BC820.
Any disconnection of BC820 cables, that is, TK857V0003, the gigabit cross-over
cable and the optical 50/125µm OM3 fiber is only allowed to take place at the
backup end of a running controller.
Exchange of faulty TK857V0003 is allowed only when both the CPU and the
BC820 are OFF.
Corrective Maintenance Procedures Section 5 Maintenance
212 3BSE036351-600 A
Corrective Maintenance Procedures
Changing Fuses – ModuleBus and CEX-Bus
To change the TP830 internal ModuleBus and CEX-Bus fuses:
1. Using a blade screwdriver, release the two spring-loaded captive screws on the
PM8xx cover.
2. Carefully remove the processor unit.
3. Identify both the ModuleBus and CEX-Bus fuse-holders to the right on the
TP830 Baseplate.
4. Using a blade screwdriver, carefully unscrew the fuse-holder containing the
defective fuse. Remove the fuse.
5. Insert a new fuse and replace the fuse holder.
6. Replace the processor unit and tighten the cover screws.
7. Check that the relevant LED lights up.
This topic does not apply to PM891, which does not contain internal fuses.
• Upper Fuse-holder – ModuleBus – fuse 2 AF
• Lower Fuse-holder – CEX-Bus – fuse 3.15 AF
• Upper Fuse-holder – ModuleBus – fuse 2 AF
• Lower Fuse-holder – CEX-Bus – fuse 3.15 AF
Section 5 Maintenance Fault-Finding Procedures
3BSE036351-600 A 213
Fault-Finding Procedures
The following sections describe elementary fault-finding procedures. For complete
instructions contact ABB Support.
PM8xx Processor Unit in Single CPU Configuration
Table 25. PM8xx – Fault-Finding Procedure
Fault Possible Cause and Corrective Action
F(ault) LED is ON Controller Re-start, (INIT), in progress.
• Wait for Controller restart to finalize.
Missing firmware.
• Upgrade firmware.
Firmware upgrade in progress.
• Wait for FW upgrade to finalize.
Firmware upgrade failure.
• Use serial FW upgrade.
Missing TB852
• Check TB852 connection
(PM858, PM861, PM862, PM864, PM865,
PM866 and PM867).
Other
• Check controller log.
F(ault) LED is flashing Firmware upgrade in progress:
• Wait for FW upgrade to finalize.
Other
• Check controller log.
R(un) LED is OFF No application loaded in the Controller.
• Download application.
Controller application failed.
• Restart Controller (INIT push button).
• Download application.
PM858/PM861/PM862/PM864/PM865/PM866/PM867/PM891 Unit in Redundant Configuration
214 3BSE036351-600 A
PM858/PM861/PM862/PM864/PM865/PM866/PM867/PM891 Unit in Redundant
Configuration
B(attery) LED is flashing Battery voltage (Internal or External) is below 3.1 V
or non-existent.
• Install new battery.
External battery cable disconnected.
• Connect external battery cable.
See Fault-Finding Table 30 on page 219.
Table 26. PM858/PM861/PM862/PM864/PM865/PM866/PM867/PM891
Redundant Configuration – Fault-Finding Procedure
Fault Possible Cause and Corrective Action
DUAL LED is OFF on both
CPUs
The CPUs are in the process of being re-started
or configured. Allow time for this to finaalize.
RCU Link Cable disconnected.
• Connect the RCU Link Cable.
Different Control Software in the two CPUs.
• Upgrade the CPUs with the same control
software.
Fault LED is ON Check controller log. | 356300-J2 模拟量控制器安装于DCS系统控制板 VIDEOJET | | | |
