CPU86-NDP 57287586 5760785-8G模块备件

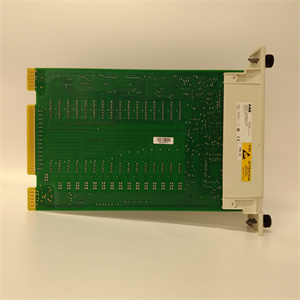

产品标题：CPU86-NDP 57287586 5760785-8G 驱动处理器板 ABB

型号：CPU86-NDP 57287586 5760785-8G 驱动处理器板

质保：七天验收期，质保期年

品牌： ABB

产品图片展示

产品详情资料

在elView Plus设备中，接地/接地端子内部连接到产品内的数据终端。
PanelView Plus设备具有隔离和非隔离通信端口。
有关更多信息，请参阅PanelView Plus终端用户手册，出版物2711PUM001。
拆卸和安装电源接线盒
终端装运时安装了电源接线板。您可以删除并重新安装
接线板便于安装、接线和维护。
•A-D系列直流逻辑模块使用三位接线板。
•E系列或更高版本的直流逻辑模块使用两位接线板。
按照以下步骤拆下接线板。
1.松开固定接线板的两个螺钉。
注意：当两个之间存在电压电位时，可能会发生损坏或故障
分离接地点。确保端子不作为之间的导电路径
不同电位的接地点。
警告：爆炸危险
•替换部件可能会损害危险场所的适用性。
•除非电源已关闭且已知区域为，否则不得断开设备
无危险。
•除非电源已关闭，否则不得连接或断开部件。
•所有接线必须符合N.E.C.501、502、503条和/或C.E.C.18-1J2节
适当的
•外围设备必须适合其使用位置。
注意：在安装或更换部件之前，断开所有电源。未能断开
电源可能导致触电或损坏elView Plus devices, the earth/ground terminal is internally connected to the DCterminal within the product.
The PanelView Plus devices have isolated and nonisolated communication ports.
For more information refer to the PanelView Plus Terminals User Manual, publication 2711PUM001.
Remove and Install the Power Terminal Block
The terminals ship with a power terminal block installed. You can remove and reinstall the
terminal block for ease of installation, wiring, and maintenance.
• Series A to D, DC logic modules use a three-position terminal block.
• Series E or later, DC logic modules use a two-position terminal block.
Follow these steps to remove the terminal block.
1. Loosen the two screws that secure the terminal block.
ATTENTION: Damage or malfunction can occur when a voltage potential exists between two
separate ground points. Make sure the terminal does not serve as a conductive path between
ground points at different potentials.
WARNING: Explosion Hazard
• Substitution of components may impair suitability for hazardous locations.
• Do not disconnect equipment unless power has been switched off and area is known to be
nonhazardous.
• Do not connect or disconnect components unless power has been switched off.
• All wiring must comply with N.E.C. articles 501, 502, 503, and/or C.E.C. section 18-1J2 as
appropriate.
• Peripheral equipment must be suitable for the location in which it is used.
ATTENTION: Disconnect all power before installing or replacing components. Failure to disconnect
power may result in electrical shock or damage to
