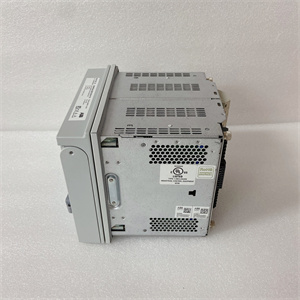

CC-PCNT01 51405046-175 用于C300控制器模块 Honeywell

产品标题：CC-PCNT01 51405046-175 用于C300控制器模块 Honeywell

型号：CC-PCNT01 51405046-175 用于C300控制器模块

品牌：  Honeywell

质保：七天验收期，质保期一年
发货期：1-3个工作日

产品图片展示

产品详情资料

该板用于与DCS 500通信
配备软件版本的转换器模块
直至S21.1xx。它由3个不同的通信信道组成。所有RxD信道（接收器）均具有：
蓝色，所有TxD信道（发射机）均为灰色
颜色如果需要进行任何连接，请始终：
将相同颜色的插头和连接在一起
插座）。
信道1是1.5 Mbits/s的HDLC信道
用于与PC通信。信道2
7.2通信板SDCS-COM-5
图7.3/1 SDCS-AMC-DC/SDCS-AMS-DC经典板/AMC-直流驱动总线布局图
该板必须与DCS 600一起使用
配备SDCS-CON-2板的模块，包括软件S15.xxx。
该板配备有自己的控制器，控制器包括：
以下主要功能：
•该板中实现的软件结构
分为两部分。一部分建成
来自速度调节器及其附加
产生扭矩基准的功能。
•二部分准备根据其自身的控制和控制特性进行编程
章程
•评估接收到的数据，以产生传输至控制器的扭矩参考
7.3控制和通信板SDCS-AMC-DC
板CON-2。CON-1的实际值为
读取、评估并重新传输到覆盖控件。
此外，该板配备了三个光通道（大数据传输速度为4
每个光信道的Mb）：
-通道0用于从
超越控制（APC2或通过适配器模块
从其他控制器）到DCS600驱动器。
-通道2（主跟随器）用于操作
两个或多个驱动器相互依赖。
此应用程序所需的命令和值在此板上生成。
-通道3准备连接PC工具，用于：
调试和维护This board is used for communications to DCS 500
converter modules equipped with software version
up to S21.1xx. It consists of 3 different communication channels. All RxD channels (receiver) have
blue color, all TxD channels (transmitter) have grey
color. If any connections should be made always
connect the same color with each other (plug and
socket) .
Channel 1 is a HDLC channel of 1.5 Mbits/s and is
used for the communication with a PC. Channel 2
7.2 Communication board SDCS-COM-5
Fig. 7.3/1 Layout of the SDCS-AMC-DC / SDCS-AMC-DC Classic board / AMC-DC Drive Bus
This board must be used together with a DCS 600
module equipped with a SDCS-CON-2 board including software S15.xxx.
The board is equipped with an own controller with
the following main functionalities:
• The software structure implemented in this board
is divided in two sections. The first section is built
from the speed regulator and its additional
functions which is producing the torque reference.
• The second section is prepared to be programmed with its own characteristics for control and
regulation.
• Evaluation of the received data to produce a torque reference to be transmitted to the controller
7.3 Control and communication board SDCS-AMC-DC
board CON-2. Actual values from the CON-2 are
read, evaluated and retransmitted to the overriding control.
Furthermore the board is equipped with three optical channels (max. data transmission speed is 4
Mb for each optical channel):
- Channel 0 is used to communicate data from the
overriding control (APC2 or via adapter modules
from other controllers) to the DCS600-drive.
- Channel 2 (Master-Follower) is used to operate
two or more drives dependent on each other.
Commands and values needed for this application are produced on this board.
- Channel 3 is prepared to connect the PC tool for
commissioning and maintenanc
