1070079403-106 带I/O卡的 ERBACH伺服 控制器 BOSCH

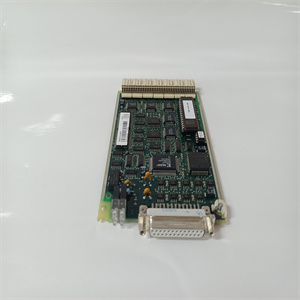

产品标题：1070079403-106 带I/O卡的 ERBACH伺服 控制器 BOSCH

型号：1070079403-106 带I/O卡的 ERBACH伺服 控制器

品牌：  BOSCH

质保：七天验收期，质保期一年
发货期：1-3个工作日

产品图片展示

产品详情资料

可选择传输比Uprim:502、601、701、800、1000、1200 V交流均方根
输出电压：7.3伏交流有效值
绝缘电压：1200 V
隔离测试电压：3500 V
环境温度范围：-10…+70°C
重量：2.1公斤
三、5-9
3ADW000165R0201_Technical_Data_e_b
5.4电源接口SDCS引脚41/SDCS引脚48/SDCS-引脚5x
DCS转换器模块的电源接口
A5/A6/A7和C4型，900 A至5200 A
由两块板组成-测量板
SDCS-PIN-51和脉冲变压器板
SCDS-PIN-41。
下图显示了不同的连接
在SDCS引脚41和SDCS引脚51之间
板取决于应用2象限或4象限和结构类型。
自1998年起交付的转换器将
000165R0201_技术数据_e_b
测量板SDCS-PIN-51
该板始终与SDCSPIN-41板一起使用。电路板上有电路
用于电流、电压和温度测量以及硬件编码。
电流由以下位置的电流互感器测量：
通过二极管电桥整流的主交流输入，以及
用负载电阻将额定电流定为1.5 V。通过切断来调整标称电流
来自电路板的电阻器（R1…R21）符合
当前编码表。电阻R22…R26
用于电流等于零的检测。
这些电阻器也必须切断，根据
当前编码表。
电压（U1、V1、W1和C1（+）和D1（-）为
通过使用高欧姆电阻链测量。交流和直流电压的缩放通过激活
脉冲变压器板SDCS-引脚41/引脚41A/引脚48
图5.4/5 SDCS-PIN-51板布局图
100万Ω 电阻器（=切断短路线，
其由低欧姆电阻器表示）。
电压测量使用5个电阻器：
U1:W1至W5
V1:W6至W11
W1:W12至W16
C1（+）：W17至W21
D1（-）：W22至W26
如果需要电压自适应，所有5
必须以相同的方式处理链条。
笔记实际电压信号U1、V1、W1、C1（+）
主电路的D1（-）和D1（-）
与控制板隔离。因为这个
小于1mA的电流将流至地面。
当电流
R179 10 Ω rated current scaling electable transfer ratios Uprim: 502, 601, 701, 800,1000, 1200 V AC rms
Output voltage: 7.3 V AC rms
Insulation voltage: 1200 V
Isolation test voltage: 3500 V
Ambient temperature range: - 10 …+ 70 °C
Weight: 2.1 kg
III 5-9
3ADW000165R0201_Technical_Data_e_b
5.4 Power Interface SDCS-PIN 41/SDCS-PIN-48/SDCS-PIN-5x
The Power Interface of DCS converter modules
model A5/A6/A7 and C4 from 900 A up to 5200 A
consists of two boards - the Measuring board
SDCS-PIN-51 and the Pulse transformer board
SCDS-PIN-41.
The following figures show the different connections
between the SDCS-PIN-41 and SDCS-PIN-51
board depending on the application 2- or 4-quadrant and the construction type.
Converters, delivered from 1998 on, will be
  000165R0201_Technical_Data_e_b
Measuring board SDCS-PIN-51
This board is always used together with SDCSPIN-41 board. On this board there are the circuits
located needed for current, voltage and temperature measuring and for hardware coding.
The current is measured by current transformers at
the main AC inputs, rectified by a diode bridge and
scaled with burden resistors to 1.5 V as rated current. The nominal current is adjusted by cutting out
resistors (R1 ... R21) from the board according to
the current coding table. The resistors R22 ... R26
are used for the current equal to zero detection.
These resistors must be cut off too, according to
the current coding table.
Voltages (U1, V1, W1 and C1(+) and D1(-)) are
measured by using high ohm resistor chains. Scaling of AC and DC voltage is done by activating
Pulse transformer board SDCS-PIN-41/PIN-41A/PIN-48
Fig. 5.4/5 Layout of the SDCS-PIN-51 board
1 MΩ resistors (= cutting out short circuit wires,
which are represented by low ohmic resistors).
The voltage measurement uses 5 resistor:
U1: W1 to W5
V1: W6 to W11
W1: W12 to W16
C1(+): W17 to W21
D1(-): W22 to W26
If there is a need for voltage adaptation, all 5
chains must be handled in the same way.
Note! Actual voltage signals U1, V1, W1, C1(+)
and D1(-) of the main circuit are not galvanically
isolated from the control board. Because of that a
current of less than 1 mA will flow to earth.
When galvanically is
