E-00000-411-600-1 DCS过冷裕量计算器

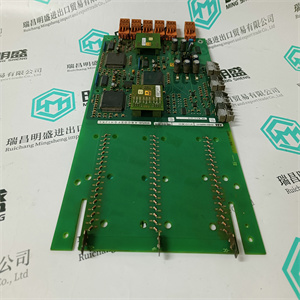

产品标题：E-00000-411-600-1 DCS过冷裕量计算器组件 ABB

型号：E-00000-411-600-1 DCS过冷裕量计算器组件 ABB

品牌:  ABB

质保：七天验收期，质保期一年
发货期：1-3个工作日

产品图片展示

产品详情资料
在子机架中，为输入/输出模块提供插槽1至13。任何安排
I/O模块类型是可能的。在具有冗余I/O总线的PES中，插槽1至7上的模块为
分配给一条I/O总线，8到13分配给二条I/O总线。
子架下面有一个集成的电缆槽。它配有一个插座，用于
标签，可以打开以方便接近电缆。
3.3.1 24 VDC供电和配电
对于24 VDC电源和配电，我们建议使用K 7212、K 7213、K 7214、K 7215
组件或保险丝分配器K 7915。
它们包括用于熔断多达18个带有电路的独立电源电路的所有部件
断路器。
K7212还配有去耦二极管和带监控继电器的滤波器
用于主电源。
此外，您还可以使用PS1000系列的电源（参见ELOP II CD）。
H41q系统系列
10
3.3.2输入/输出模块
I/O模块用于设备和
中央模块。输入和输出电路始终通过电缆馈入I/O模块
前面的插头。数字输出信号的状态显示在
电缆插头。电源可以通过电缆插头，也可以通过I/O总线板。订单
不同I/O模块类型之间的差异并不重要。
所有I/O模块均可在操作期间拆除或插入（见8.1.1章）。
3.3.3 ATEX（Ex）i模块
当前（Ex）i模块有两种结构模型：
–非清漆，带PCB覆盖层
–涂漆，带PCB覆盖层
任何型号都可以装配在一起，它们之间没有空插槽。
非清漆（Ex）i模块可与非（Ex”i模块组合在一起，无任何限制。左侧或右侧不需要空闲插槽。
对于涂有油漆的（Ex）i模块（PCB覆盖），右侧插槽必须与非（Ex
（M 2214）。这也适用于插槽编号15。（Ex）i模块左侧的插槽可以配备
任何其他模块。备用插槽必须由前板M 2215（4个间隔单元）覆盖
SU）或M 2217（8个间距单位SU）。
带隔板或前板的可用前板：
M 2214带隔板的前板100 x 160 mm
M 2215前板4 SUIn the subrack, slots 1 to 13 are provided for the input/output modules. Any arrangement of
I/O module types is possible. In PES with redundant I/O bus, the modules on slots 1 to 7 are
assigned to the first I/O bus and 8 to 13 to the second I/O bus.
There is an integrated cable tray under the subrack. It is equipped with a receptacle for the
label which can be flapped open to provide easy access to the cables.
3.3.1 24 VDC Supply and Distribution
For 24 VDC supply and distribution we recommend to use the K 7212, K 7213, K 7214, K 7215
subassemblies or fuse distributor K 7915.
They include all components for the fusing of up to 18 individual supply circuits with circuit
breakers.
The K 7212 is additionally equipped with decoupling diodes and filters with monitoring relays
for mains supply.
Additionally you could use also a power supply of the PS1000 series (see ELOP II CD).
The H41q System Family
10
3.3.2 I/O Modules
The I/O modules are used for signal transfer and signal matching between the plant and the
central modules. The input and output circuits are always fed into the I/O modules via cable
plugs on the front side. The status of the digital output signals is shown on the LEDs of the
cable plugs. The power supply is either via the cable plugs or via the I/O bus board. The order
of the different I/O module types does not matter.
All I/O modules can be removed or inserted during operation (see chapter 8.1.1).
3.3.3 ATEX (Ex)i-Modules
The current (Ex)i modules exist in 2 construction models:
– non-varnished, with PCB covering
– varnished, with PCB covering
Any models can be equipped together without empty slots between them.
Non-varnished (Ex)i modules may combined together with non-(Ex)i modules without any restrictions. There are no free slots necessary on the left or on the right.
With varnished (Ex)i modules with PCB covering the right slot has to remain free in combination with non-(Ex)i modules, or has to be equipped with a front plate with partition plate
(M 2214). This is also valid for slot no. 15. The slot left to the (Ex)i module may be equipped
with any other module. Spare slots have to be covered by front plates M 2215 (4 spacing units
SU) or M 2217 (8 spacing units SU).
Usable front plates with partition or front plates:
M 2214 Front plate with partition plate 100 x 160 mm
M 2215 Front plate 4 SU
M 2217 Front plate 8 SU
M 2217前板8 SU
