POSUM-HW ROFBU 367 306/1 R1C 用于励磁驱动器控制端子 ABB

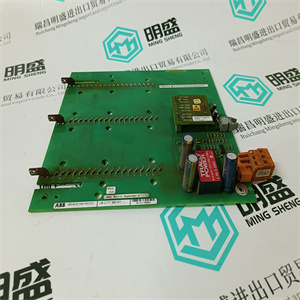

产品标题：POSUM-HW ROFBU 367 306/1 R1C 用于励磁驱动器控制端子 ABB

型号：POSUM-HW ROFBU 367 306/1 R1C 用于励磁驱动器控制端子

品牌:   ABB

质保：七天验收期，质保期一年
发货期：1-3个工作日

产品图片展示

产品详情资料
每个输入/输出模块分配给模块F 7133上的保险丝（另请参阅
装配套件B 9302）。
每个带有4个保险丝的配电模块与
I/O模块如下：
插槽18中的F 7133为I/O插槽1…4供电，
插槽19中的F 7133为I/O插槽5…8供电，
插槽20中的F 7133为I/O插槽9…12供电，
插槽21中的F 7133为I/O插槽13…16供电。
输入/输出模块的电源可通过正面的电缆插头或已集成在输入/输出总线板中的连接（用于（Ex）I模块和部分模拟输入模块）。
电位分配器XG。11与配电抽屉的L-相连。所以所有人
H51q系统系列
17
配电模块F 7133与L-内部连接。通过配电模块的前侧，L-也通过电缆插头馈送至输入/输出模块。
传感器的电路馈电由F 7133模块前部熔断。输入模块
相关传感器使用与配电模块F 7133相同的电源电路。
图6：馈电和配电24 VDC
4.3.3 5 VDC配电
I/O子架的5 VDC系统电压取自星形中央机架后侧的分配器XG.2和XG.3的扁平插头。
电源连接到相应标记的平插头XG.4上的I/O子架，用于
+5 VDC和XG.12用于I/O子架后侧的GND。
电源通过总线板内部分配给I/O模块。
4.3.4 5 VDC电源的扩展
如果5 V电路的电源要求>18 A，则必须提供额外的电源
习惯于为此，可以使用B 9361装配套件，它可以
将三个电源F 7126与监控模块F 7131一起安装在一个额外的子架中。
5 V输出电路 Each I/O module is assigned to a fuse on the module F 7133 (refer also to the description of
the assembly kit B 9302).
The relation between the power distribution modules with 4 fuses each and the slots of the
I/O modules is as follows:
F 7133 in slot 18 supplies the I/O slots 1...4,
F 7133 in slot 19 supplies the I/O slots 5...8,
F 7133 in slot 20 supplies the I/O slots 9...12,
F 7133 in slot 21 supplies the I/O slots 13...16.
The supply of the I/O modules is made either via the cable plug on the front side or via the connection already integrated in the I/O bus board (for (Ex)i modules and partly analog input modules).
The potential distributor XG. 11 is connected to the L- of the power distribution drawer. So all
The H51q System Family
17
power distribution modules F 7133 are internal connected with L-. Via the front side of the power distribution modules the L- is also fed to the input/output modules via the cable plugs.
The circuit feeding of the sensors is fused by the front of the F 7133 module. The input module
and the appertaining sensors use the same power supply circuit of the power distribution module F 7133.
Figure 6: Feeding and distribution 24 VDC
4.3.3 5 VDC Distribution
The 5 VDC system voltage for the I/O subracks is taken from the flat pin plugs of the distributors XG .2 and XG .3 on the rear side of the central rack in star shape.
The power is connected to the I/O subracks on the accordingly marked flat pin plugs XG .4 for
+5 VDC and XG .12 for GND on the rear side of the I/O subracks.
The power is internally distributed to the I/O modules via the bus board.
4.3.4 Extension of the 5 VDC Power Supply
If the power requirements of the 5 V circuits is > 18 A an additional power supply has to be
used. For this purpose the B 9361 assembly kit can be used which provides the possibility of
applying three power supplies F 7126 together with the monitoring module F 7131 in an additional subrack.
The 5 V output circui
