使用配置说明 DSPC155 57310001-CX

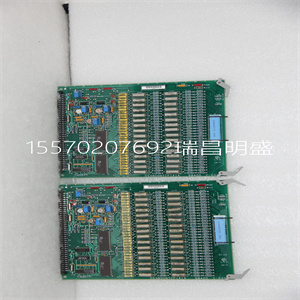

产品标题：DSPC155 57310001-CX 数字量控制卡

型号：DSPC155 57310001-CX

品牌：ABB

质保：七天验收期，质保期一年
发货期：1-3个工作日

产品图片展示

产品详情资料
 变流器（见3.4章）四种配置显示了三相现场电源装置DCF
501B/2B作为独立单元。此配置显示了处于励磁电流控制模式的系统
如果任何类型的现有直流电机磁场电源升级为数字控制的，具有所有现代选项，如
串行链路等。除了现场应用，例如磁铁
可以用该设备控制电流或电压无任何附加组件的模式。
•高功率驱动器的典型配置
（见3.5章）
五种配置用于较大的驱动器，基于
用于配置3.3和3.4的图表。现在，所有
用于其他两个的组件与所有组件一起显示
需要互连和联锁。它适用于转换器结构类型A5、A6和A7。
•使用内部字段的标准驱动器配置（见3.1章）
一种配置显示了速度控制驱动器，使用灵活的外部接线和内置现场电源。有了这些
组件，它将适合大多数功率范围较小的驱动器。
此配置只能与构造一起使用C1-A5型，因为较大的功率堆（C4、A6、A7）不会
允许并入内部现场电源。•使用内部磁场和减少外部组件的驱动器配置（见3.2章）
二种配置使用与一，但减少了外部接线示意图。
此配置只能与构造一起使C1-A5型，因为较大的功率堆（C4、A6、A7）不会允许并入内部现场电源。
•使用外部半控 rolled field(3-ph) without armature converter (see chapter 3.4)
The fourth configuration shows a 3-phase field supply unit DCF501B/2B as stand alone unit.This configuration shows a system in field current control mode
and is used, if any type of existing DC-motor-field supply should
be upgraded to a digital controlled one with all modern options like
serial link etc.There are other than field applications, magnets for example, which
can be controlled with this equipment in current or voltage controlmode without any additional components.
• Typical configuration for high power drives(see chapter 3.5)
The fifth configuration is used for quite big drives and is based onthe diagrams used for configuration 3.3 and 3.4. Now all the
components used for the other two are shown all together with all
interconnections and interlockings needed. It is adapted to the
converter construction types A5, A6 and A7.
• Standard drive configuration using an internal field
(see chapter 3.1)The first configuration shows a speed controlled drive, using a very
flexible external wiring and a build in field supply. With thesecomponents, it will fit to most drives of the smaller power range .
This configuration can only be used together with constructiontypes C1 - A5, because bigger power stacks (C4, A6, A7) do not
allow to incorporate an internal field supply.
• Drive configuration using the internal field with reduced external components (see chapter 3.2)
Te second configuration uses the same basic components as theone first, but a reduced external wiring schematics.
This configuration can only be used together with construction
types C1 - A5, because bigger power stacks (C4, A6, A7) do notallow to incorporate an internal field supply.
• Standard drive configuration using an external halfcontrolled field (1-ph) (see chapter 3.3)
The third configuration uses the e
