使用配置教程PFBI161 3BSE000467R1 ABB

产品标题：PFBI161 3BSE000467R1 数字量控制卡

型号：PFBI161 3BSE000467R1

品牌：ABB

质保：七天验收期，质保期一年
发货期：1-3个工作日

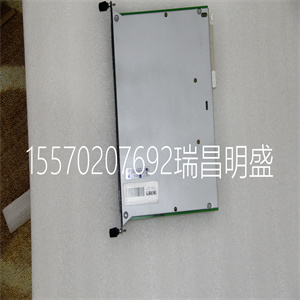

产品图片展示

产品详情资料
 ：ON/OFF和START/Stop旁边的停止模式：
本章试图解释操作名为EMERGENCY_STOP（906）或COAST_STOP（905）的输入时驱动器的反应。请拿着
用于此说明的外部接线仅作为示例！
对于紧急停止，必须考虑不同的先决条件。本说明侧重于功能，不考虑特殊安全性
条件取决于机器类型。
在这种情况下，如果按下紧急停止，信息将通过二进制输入5传输到转换器。转换器将根据功能进行操作
编程（通过斜坡、电流限制或滑行停止）。如果变频器无法在K15设定的时间内使驱动器停止，辅助
触点将关闭控制电源。因此，主电源接触器K1和所有其他接触器将关闭。这可能会导致故障
组件（见操作说明）。通过增加另一个延时（下面灰色阴影部分），可以将这种危险降至低。通过这样做，另一个
停止模式可用。
-紧急停止信号初始化缓降功能
以前面描述的方式在转换器内部。如果
驱动器在K15规定的时间内停止，
转换器将关闭主电源接触器K1。
如果转换器无法将驱动器
在此时间内停止，K15将启动该功能
按照K16规定的延时断开电气连接。此信息将传输至
将转换器转换为自由二进制输入。此输入必须是
连接至驱动逻辑的COAST_STOP输入。
COAST_STOP输入强制电流降为零
尽可能快。K16的延迟时间必须为
略高于电流控制器使电流为零所需的时间。当K16的时间
控制电压将被关闭，所有
电源接触器将脱落。
-如果不注意驱动器的速度
K16的功能可通过以下方式初始化: Stop mode beside ON/OFF and START/STOP:
This chapter tries to explain the reaction of the drive when the input named EMERGENCY_STOP (906) or COAST_STOP (905) is operated. Please take
the external wiring used for this explanation as an example only!
For EMERGENCY STOP different preconditions have to be taken into account. This description focus on the functionality and does not take special safety
conditions depending on the type of machine into account.
In this case, if emergency stop is hit, the information is transferred to the converter via binary input 5. The converter will act according to the function
programmed (stop by ramp, current limit or coasting). If the converter will not manage to get the drive to standstill within the time set at K15, the auxiliary
contact will switch off the control power. Because of this the main power contactors K1 and all the others will be switched off. This may result in failure
of components (see Operating Instructions). This danger can be minimized by adding another time delay (grey-shaded parts below). By doing so another
stop mode is available.
- Emergency stop signal initializes the ramp down function
inside the converter in that way described before. If the
drive comes to standstill within the time specified by K15,
the converter will switch off the main power contactor K1.
If the converter doesn´t manage to get the drive to
standstill within this time, K15 will start the function
ELECTRICAL DISCONNECT with the time delay specified by K16. This information will be transferred to the
converter to a free binary input. This input has to be
connected to the COAST_STOP input of the drive logic.
The COAST_STOP input forces the current down to zero
as fast as possible. The delay time of K16 has to be
slightly higher than the time needed by the current controller to get the current to zero. When the time K16 has
elapsed the control voltage will be switched off and all
power contactors will drop off.
- If no care should be taken to the speed of the drive the
function of K16 can be initialized by
