ABB SPBLK01 咨询电源板模块备件

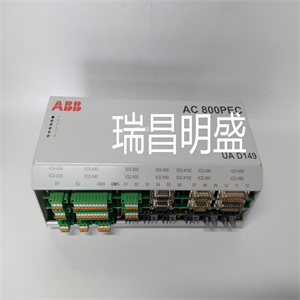

产品标题：ABB SPBLK01
产品型号：ABB SPBLK01
品牌：ABB
发货期：1-3个工作日，具体可联系客服
质保：质保期一年！

产品图片展示

产品详情资料

 -与控制面板（RS 485）通信-与励磁机通信（RS 488）-测量-看门狗功能-A/D和D/A转换控制-晶闸管触发脉冲生成看门狗函数控制板具有内部看门狗。看门狗控制控制板的运行
程序如果看门狗跳闸，则有以下情况
效果：-禁止写入FPROM。
-晶闸管点火控制复位并禁用。它通过硬件引起主复位。所有I/O寄存器被强制为0，触发脉冲被抑制。辅助电源分配电子电源板SDCS-POW-1（见单独章节）产生不同级别的电压。其中一些通过CON-2板直接传输到这些板
使用，其他操作，然后传输不同的电子电源系统
电压水平通过两种方式进行监测。有一个
主信号电源故障，用于监控输入
POW-1板的电源电压和
信号powerfail secondary，它监视低
电压等级。如果一个电压水平低于
阈值生成跳闸信号。RS485串行通信信道控制板有两个RS485信道。一个通道用于DCF 501/502、DCF 503/504或DCF 601/602的励磁机控制（端子X16:1…3）
二个用于控制面板（CDP），位于端子X33或X34。端子X33和X34接线
内部并行。DDCS通道集成
控制板SDCS-CON-2集成了
DDCS（数字驱动控制系统）通道
传输速率高达4 Mbits/s。该通道（V260）例如。
可用于现场总线模块。终端
X16:4和5用于
模块。图3.2/5 DDCS信道与
控制板SDCSCON-2的电源
图3.2/4现场电源装置DCF xxx的连接
至的RS485通信接口
SDCS-CON-2板。电源电压+5 V+15 V-15 V+24 V+48 V1+48 V2欠压跳闸水平+4.55 V+12.4 V-12.0 V+19 V+38 V+38 VT测试端子X37:B4/B5 B10 B8 B11 B12--------电源电压监测
控制板监测以下电压水平：
我power distributionThe electronic power supply board SDCS-POW-1(see separate chapter) generates different levels ofvoltages. Some of them are transferred via theCON-2 board directly to the boards, where they are
used, others are manipulated and then transferedThe electronic power supply system with the different
voltage levels is monitored in two ways. There is a
signal powerfail primary, which monitors the input
power supply voltage of the POW-1 board and a
signal powerfail secondary, which monitors the low
voltage levels. If one voltage level drops below the
threshold a trip signal is generated.RS485 serial communication channelsThe control board has two RS485 channels. The firstchannel is for field exciter control of DCF 501/502,DCF 503/504 or DCF 601/602 (terminals X16:1...3)
and the second for the control panel (CDP) at terminals X33 or X34. The terminals X33 and X34 are wired
up in parallel internally.DDCS Channel integrated
The control board SDCS-CON-2 has an integrated
DDCS (Digital Drive Control System) channel with a
tranfer rate up to 4 Mbits/s. This channel (V260) e.g.
can be used for fieldbus modules. The terminals
X16:4 and 5 are provided for power supply of the
modules.Fig. 3.2/5 Connection of the DDCS channel with
power supply to the control board SDCSCON-2
Fig. 3.2/4 Connection for field supply units DCF xxx
to the RS485 Communication Interface of
the SDCS-CON-2 board.Supply voltage +5 V +15 V -15 V +24 V +48 V1 +48 V2Undervoltage tripping level +4.55 V +12.4 V - 12.0 V +19 V +38 V +38 VTest terminals X37: B4 / B5 B10 B8 B11 B12 --------Supply voltage monitoring
The control board monitors the following voltagelevels:
ISupply voltage monitoringThe control board monitors the following voltage
levels:The electronic power supply system with the differenvoltage levels is monitored in two ways. There
is a signal powerfail primary, which monitors the input power supply voltage of the POW-1 board anda signal powerfail secondary, which monitors thelow voltage levels. If one voltage level drops belowthe threshold a trip signal is generated.In addition to that there is a monitoring function forthe 5 V level. If +5 V drops under the tripping level,Memory circuits and the back-upThe program including system and parameter values is stored at Flash PROM D33. Different programs can be downloaded directly to thesePROMs. Application functionallity and parameter
values are
