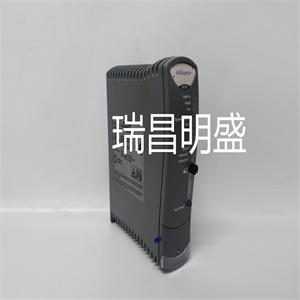

ABB ST701A HITR402804R0001 电源贝利卡件电源板模块备件

产品标题：ABB ST701A HITR402804R0001
产品型号：ABB ST701A HITR402804R0001
品牌：ABB
发货期：1-3个工作日，具体可联系客服
质保：质保期一年！

产品图片展示

产品详情资料


带PTC传感器-用于过电压保护和电压测量的保险丝-如果SDCS-PIN-21/22连接板安装在DCF50x-0100…0520/DCF60x0100…0.520中，则元件R112、R114和R116不是内置的注意：如果此PCB用作DCF的备件，
然后是电阻器R112/R114/R116（值=0）
必须删除。备件通过使用RC电路和MOV元件来保护电源部件。缓冲电路与每个晶闸管直接并联，中间没有保险丝。除了MOV
元件连接在相位和
由保险丝F101至F 103保护。交流电压测量从保险丝后面进行。保险丝数据：Bussmann KTK-R-6A（600V）
（由RC电路和MOV元件组成）电源接口板用于C1和C2型DCS转换器模块结构
正在使用不同的版本。使用的类型有：
-SDCS-PIN-205，用于500 V时的100 A…700 A变频器
-SDCS-PIN-206，用于600 V时的110 A…450 A变频器
-SDCS-PIN-205B，用于500 V时的100 A…1000 A变频器
-SDCS-PIN-206B，用于600 V时110 A…450 A变频器
电路板从SDCS-PIN-20x循环更新
➯ PIN码-20xA➯ 符合技术要求的PIN-20xB
要求和新的C2转换器类型。这个
SDCS-PIN20xB可以替代SDCS-PIN 20x
和PIN-20xA。SDCS-PIN-20x板包括：
-带脉冲变压器的点火脉冲电路.电枢电流的测量.晶闸管保护用缓冲电路（由并联晶闸管的RC电路组成
和RCD网络）-交流和直流高欧姆电压测量-带负载电阻的额定电流定标、零电流检测和HW电压类型编码-散热器温度测量接口
带PTC传感器-用于过压保护和电压测量的保险丝-在用于三相磁场的转换器上，将使用相同的电路板，无需任何修改
电源备件通过使用RC电路对电源部件进行保护。缓冲电路与每个晶闸管并联，中间装有保险丝。RCD元件由保险丝F 101至F 103保护。交流电压测量从保险丝后面进行。
保险丝数据：Bussmann KTK-R-6A（600V）电源接口板SDCS-PIN205可用于替换SDCS-PIN-21、22和25。板SDCS-PIN-206可用于替换SDKS-PIN-23和24，但反之亦然！如果是500 V下450 a/520 a/700 a的转换器或600 V下450 a的转换器，则必须考虑额外的动作（SDCS-PIN-2x和PIN-20x之间的基本区别用图5.2/3中编号为1、2和3的灰色阴影区域标记）。- the same board will be used without any modification at a converter used for three-phase field
supplySpare partThe protection of the power part is done by usingRC circuits. Snubber circuits are wired up in parallel to each thyristor with fuses in between. RCD elements are protected by the fuses F 101 to F 103.The AC voltage measurement is taken from behindthe fuse.
 Fuse data: Bussmann KTK-R-6A (600V)The power interface board SDCS-PIN205 can beused as a replacement of SDCS-PIN-21, 22 and25. The board SDCS-PIN-206 can be used as a replacement of SDCS-PIN-23 and 24, but not viceversa! In case of a converter with 450 A / 520 A /700 A at 500 V or a converter of 450 A at 600 Vadditional actions have to be taken into account (thebasic difference between the SDCS-PIN-2x andPIN-20x is marked by the grey-shaded areas numbered 1,2 and 3 in fig. 5.2/3).The power interface board is used for DCS converter modules construction type C1 and C2. There
are different versions in use. The used types are:
- SDCS-PIN-205 for 100 A...700 A Conv. at 500 V
- SDCS-PIN-206 for 110 A...450 A Conv. at 600 V
- SDCS-PIN-205B for 100 A...1000 A Conv. at 500 V
- SDCS-PIN-206B for 110 A...450 A Conv. at 600 V
The boards are cyclic updated from SDCS-PIN-20x
➯ PIN-20xA ➯ PIN-20xB according to the technical
requirements and the new C2 converter types. The
SDCS-PIN20xB can replace the SDCS-PIN-20x
and PIN-20xA.The SDCS-PIN-20x board consists of:
- firing pulse circuits with pulse transformers- measurement of the armature current- snubber circuit for thyristor protection(consists of RC circuits in parallel of the thyristors
and RCD network)- AC and DC high ohmic voltage measurement- rated current scaling with burden resistors, zerocurrent detection and HW voltage type coding- interface for heat sink temperature measurement
with a PTC sensor- fuses for overvoltage protection and voltagemeasuringThe power interface board is used for converter
modules model C1. There are 2 different versions
in use. The used types are:- SDCS-PIN-11 for 25 A, 50 A and 75 A convertersat 500V- SDCS PIN-12 for 50 A converters at 600 VThe SDCS-PIN-1x boards consists of:
- firing pulse circuits and pulse transformers- measurement of the armature current via currenttransformers- snubber circuit for thyristors protectionThe power interface board is used for DCS 500converter modules models C1 and C2. There aredifferent versions in use. The used types are:
