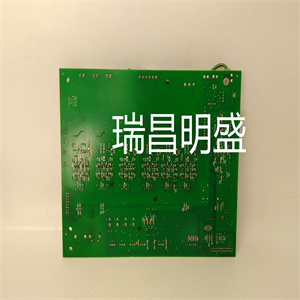

ABB STST62DOR1 电源贝利卡件电源板模块备件

产品标题：ABB STST62DOR1
产品型号：ABB STST62DOR1
品牌：ABB
发货期：1-3个工作日，具体可联系客服
质保：质保期一年！

产品图片展示

产品详情资料


-带脉冲变压器的点火脉冲电路.电枢电流的测量.晶闸管保护用缓冲电路（由并联晶闸管的RC电路组成
和RCD网络）-交流和直流高欧姆电压测量-带负载电阻的额定电流定标、零电流检测和HW电压类型编码-散热器温度测量接口
带PTC传感器-用于过压保护和电压测量的保险丝-在用于三相磁场的转换器上，将使用相同的电路板，无需任何修改
电源备件通过使用RC电路对电源部件进行保护。缓冲电路与每个晶闸管并联，中间装有保险丝。RCD元件由保险丝F 101至F 103保护。交流电压测量从保险丝后面进行。
保险丝数据：Bussmann KTK-R-6A（600V）电源接口板SDCS-PIN205可用于替换SDCS-PIN-21、22和25。板SDCS-PIN-206可用于替换SDKS-PIN-23和24，但反之亦然！如果是500 V下450 a/520 a/700 a的转换器或600 V下450 a的转换器，则必须考虑额外的动作（SDCS-PIN-2x和PIN-20x之间的基本区别用图5.2/3中编号为1、2和3的灰色阴影区域标记）。电流隔离是变频器的一个选项
电流范围2050…5150 A和额定电压
1000 V。对于额定电压为
1190 V和12脉冲串行>2x 500 V电流
隔离是一种标准设备。它用于代替高欧姆电阻电压测量，并具有完全隔离的优点
从电源部分到电子部分。
变压器T90和直流传感器A92
位于转换器模块外部。内部交流和直流电压测量通道
打开并连接至T90和A92
单位。The Galvanic isolation is an option for converters in
the current range 2050...5150 A and rated voltages
1000 V. For converters with a rated voltage of
1190 V and 12-pulse serial > 2x 500 V the galvanic
isolation is a standard equipment. It is used to replace the high-ohmic resistance voltage measurement and gives the advantage of a total isolation
from power part to electronic part.
The transformer T90 and the DC transducer A92
are located outside the converter module. The internal AC and DC voltage measurement channels
are opened and connected to the T90 and A92
units.- the same board will be used without any modification at a converter used for three-phase field
supplySpare partThe protection of the power part is done by usingRC circuits. Snubber circuits are wired up in parallel to each thyristor with fuses in between. RCD elements are protected by the fuses F 101 to F 103.The AC voltage measurement is taken from behindthe fuse.
 Fuse data: Bussmann KTK-R-6A (600V)The power interface board SDCS-PIN205 can beused as a replacement of SDCS-PIN-21, 22 and25. The board SDCS-PIN-206 can be used as a replacement of SDCS-PIN-23 and 24, but not viceversa! In case of a converter with 450 A / 520 A /700 A at 500 V or a converter of 450 A at 600 Vadditional actions have to be taken into account (thebasic difference between the SDCS-PIN-2x andPIN-20x is marked by the grey-shaded areas numbered 1,2 and 3 in fig. 5.2/3).The power interface board is used for DCS converter modules construction type C1 and C2. There
are different versions in use. The used types are:
- SDCS-PIN-205 for 100 A...700 A Conv. at 500 V
- SDCS-PIN-206 for 110 A...450 A Conv. at 600 V
- SDCS-PIN-205B for
