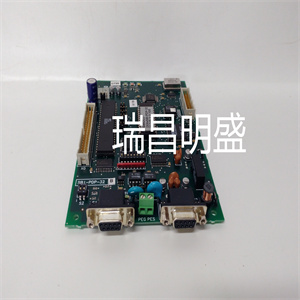

TK852V010 3BSC950342R1/A 价优 电源贝利卡件电源板模块备件ABB

产品标题：ABB TK852V010 3BSC950342R1/A 价优
产品型号：ABB TK852V010 3BSC950342R1/A 价优
品牌：ABB
发货期：1-3个工作日，具体可联系客服
质保：质保期一年！

产品图片展示

产品详情资料


1000 V。对于额定电压为
1190 V和12脉冲串行>2x 500 V电流
隔离是一种标准设备。它用于代替高欧姆电阻电压测量，并具有完全隔离的优点
从电源部分到电子部分。
变压器T90和直流传感器A92
位于转换器模块外部。内部交流和直流电压测量通道
打开并连接至T90和A92
单位。DCS转换器模块的电源接口
900 A至5150 A的C3和C4型包括
两块板-测量板SDCS-PIN-5x
和脉冲变压器板SCDS-PIN-41。
SDCS-PIN-5x有不同版本：
SDCS-PIN-51，适用于所有线电压的转换器
SDCS-PIN-52用于线路电压转换器。500伏
下图显示了SDCS-PIN-41和SDCS-PIN-5x之间的不同连接
板取决于应用程序2或4象限和结构类型。
从1998年开始交付的转换器将
配备SDCS-PIN-41A，完全替代已投入使用的转换器。测量板SDCS-PIN-5x
此板始终与SDCSPIN-41板一起使用。此板上有电路
用于电流、电压和温度测量以及硬件编码所需的位置。
电流由电流互感器测量
交流电源，由二极管电桥整流
用负载电阻将额定电流定为1.5 V。通过切割调整电流响应
从电路板输出电阻器（R1…R21），根据
到编码表。电阻器R22…R26为
用于电流等于零的检测。这些
必须根据第二张表切断电阻器。
电压（U1、V1、W1、C1（+）和D1（-））为
使用高欧姆电阻链测量。通过激活1来缩放交流和直流电压The Power Interface of DCS converter modules
model C3 and C4 from 900 A up to 5150 A consists
of two boards - the Measuring board SDCS-PIN-5x
and the Pulse transformer board SCDS-PIN-41.
There are different versions of the SDCS-PIN-5x:
SDCS-PIN-51 for converters with all line voltages
SDCS-PIN-52 for converters with line volt.
500 V
The following figures show the different connections between the SDCS-PIN-41 and SDCS-PIN-5x
board depending on the application 2- or 4-quadrant and the construction type.
Converters, delivered from 1998 on, will be
equipped with SDCS-PIN-41A, which is a full replacement for converters, which alredy in use.Measuring board SDCS-PIN-5x
This board is always used together with SDCSPIN-41 board. On this board there are the circuits
located needed for current, voltage and temperature measuring and for hardware coding.
The current is measured by current transformers at
the AC supply, rectified by a diode bridge and
scaled with burden resistors to 1.5 V as rated current. The current response is adjusted by cutting
out resistors (R1 ... R21) from the board according
to the coding table. The resistors R22 ... R26 are
used for the current equal to zero detection. These
resistors must be cut off according to a second table.
Voltages (U1, V1, W1 and C1(+) and D1(-)) are
measured by using high ohm resistor chains. Scaling of AC and DC voltage is done by activating 1The Galvanic isolation is an option for converters in
the current range 2050...5150 A and rated voltages
1000 V. For converters with a rated voltage of
1190 V and 12-pulse serial > 2x 500 V the galvanic
isolation is a standard equipment. It is used to replace the high-ohmic resistance voltage measurement and gives the advantage of a total isolation
from power part to electronic part.
The transformer T90 and the DC transducer A92
are located
