ABB UNC4673A HIEE205014R1 价优 电源贝利卡件电源板模块备件

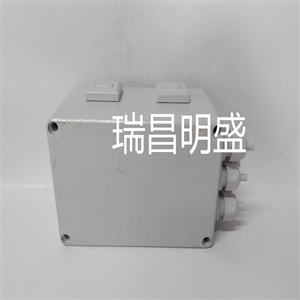

产品标题： UNC4673A  HIEE205014R1
产品型号： UNC4673A  HIEE205014R1
品牌：ABB
发货期：1-3个工作日，具体可联系客服
质保：质保期一年！

产品图片展示

产品详情资料


图5.8/1接口板PG 7303的布局。
接口板PG 7303（2-Q和4-Q）和风扇
监控板PW 1002.控制板
SDCS-CON-2必须配备软件21.232（或更高版本）或S15.208/15.610（或
更高）。
PG 7303板包括：
-点火脉冲电路和脉冲变压器
-电枢电流的测量
-交流和直流高欧姆电压测量
-额定电流定标，零电流检测
和硬件类型编码
-散热器温度测量接口
（风扇电流监控）（风扇电流监测）电源部分的散热器温度
一些DCS转换器通过PTC元件进行监控。其他DCS转换器检查冷却空气
温度和气流。第三种选择是
一个，用于测量风扇电流
限制。如果风扇电流过低或
完全没有风扇电流或风扇电流过高，驱动器需要
风扇电流可能过低
因为
-风扇可能未打开或
数据
交流输入/输出电压：单相；230伏
交流输入/输出电流：5 A
交流峰值电流：根据风机启动电流；需要外部开关设备
交流隔离电压：690 V（通过自耦变压器供电）
负载：带起动电容器的单相交流电动机
频率：50 Hz/60 Hz
输出数据：无源器件；仅与DCS电子设备一起使用
端子横截面积：X92：电源；大2.5 mm2
X11：至X31：电机连接；6.3毫米faston
电流标度：负载电阻R100/R101；R100/R101=120个
互连：见DCP转换器功率部分冷却
5.9.1 PW 1002型
本设备专门设计和使用于
DCP变频器直接默认800 A以上
条件它由230 V单相供电
电源并将监控两个单相
并联安装在变频器顶部的风扇
配置传输特性相同
PW 1003中描述的零件。零件
本手册中的功率段冷却显示
电源之间的互连The heatsink temperature of the power part of
some DCS converters is monitored via a PTC element. Other DCS converters check the cooling air
temperature and the airflow. The third option is this
one, which measures the fan current being within
limits. In case the fan current is too low or there is
no fan current at all or it is too high, the drive needs
to be switched off. The fan current may be too low
because
- the fan may not be switched on or
Data
AC input / output voltage: single phase; 230 V
AC input / output current: 5 A
AC peak current: according to fan starting current; external switching device needed
AC isolation voltage: 690 V (supply via autotransformer)
Load: single phase AC motors with starting capacitor
Frequency: 50 Hz / 60 Hz
Output data: passive device; to be used together with DCS electronics only
Terminal cross sectional area: X92: power supply; max. 2.5 mm2
X11: to X31: motor connection; 6.3 mm faston
Current scaling: burden resistor R100 / R101; R100/R101 = 120
each
Interconnection: See part power section cooling of DCP converters
5.9.1 PW 1002
This device is designed and used exclusively at
DCP converters above 800 A directly in default
condition. It is supplied by a 230 V single phase
power supply and will monitor the two single phase
fans mounted on top of the converter in parallel
configuration. The transfer characteristic is identical
to the one described at the PW 1003. The part
power section cooling within this manual shows the
interconnections between the power supply, theonly one version in use.
PG 7303 for 875 A...1650 A for
2-Q and 4-Q-converters at 400/500 V
Attention has to be paid to the exchangeability of
the boards. The DCP converters are equipped with
different boards. The types with the index A, B and
C within the type code use the power interface
board PG 7302 (4-Q) or PG 7352 (2-Q) and the fan
monitoring board PW 1001 (the board PG 7302 can
be used as a spare part for the PG 7352, but not
vice-versa!). The types with index D use the power
