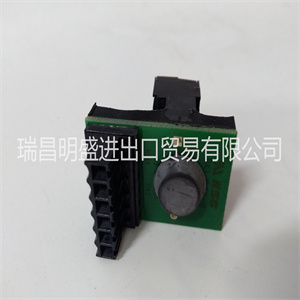

冗余模块 HIMA F3112

产品标题：HIMA F3112
产品型号：HIMA F3112
品牌：HIMA
发货期：1-3个工作日，具体可联系客服
质保：质保期一年！

产品图片展示

产品详情资料

机箱和安装规格Tricon系统可以机架安装或面板安装在下一页所述的行业标准NEMA外壳中。机柜可选配底座和脚轮。多个机柜可以在侧面用螺栓连接在一起，但必须留出足够的间隙，以完全打开其前后门。插槽盖机箱中所有未使用的插槽应填充空白I/O插槽面板（8105型），以保持适当的气流。热量管理当将Tricon机箱安装到通风或非通风外壳中时，集成工程师必须为充分的热量管理做好准备。1.50英寸3.8cm#10螺钉间隙（4处）机架安装前视图1/4英寸螺钉开槽间隙（2处）面板安装前视图2.62英寸6.7cm 18.31英寸46.5cm 22.75英寸57.8cm 13.12英寸33.3cm小间隙5.25英寸（13.3cm，至其他设备和机柜地板5.50英寸14.0cm 14.25英寸36.2cm 10.25英寸26.0cm 19.00英寸48.3cm 17.40英寸44.2cm 21.00英寸53.3cm 3.00英寸R 7.6cm可选安装支架位置，用于装置的后机架或面板安装（2处）1/4-20螺纹底盘地面装置前机架安装的安装支架标准位置（2处背板顶部背板顶部通信电缆的小间隙要求16.50“41.9cm注：机箱上的螺栓孔间距符合标准19”（48.3cm）机架孔间距。机架和面板安装的尺寸和间隙Triconex建议安装挡板（Triconex零件号2000361-001），如第23页所示。对于高于122°F（50°C）的温度，必须执行其他热管理规定，例如：•百叶窗和塔顶•带凸起塔顶的放大前后百叶窗•低密度过滤器•带适当百叶窗和塔顶的冗余风扇（一直运行）•故障检测电路​​​​​​​Chassis and Mounting Specifications The Tricon system can be rackmounted or panel-mounted in an industry-standard NEMA enclosure as described on the next page. Cabinets can optionally be equipped with base and casters. Multiple cabinets can be bolted together on the sides, but sufficient clearance must be allowed to fully open their front and rear doors. Slot Covers All unused slots in a chassis should be filled with Blank I/O Slot Panels (model 8105) to maintain proper air flow. Heat Management When mounting Tricon chassis into vented or non-vented enclosures, the integration engineer must make provisions for sufficient heat management. 1.50" 3.8cm Clearance for #10 screw (4 places) Front View for Rack Mounting Slotted Clearance for 1/4" Screw (2 places) Front View for Panel Mounting 2.62" 6.7cm 18.31" 46.5cm 22.75" 57.8cm 13.12" 33.3cm Minimum clearance 5.25" (13.3cm), to other equipment & cabinet floor Minimum clearance 5.25" (13.3cm), to other equipment & cabinet floor 5.50" 14.0cm 14.25" 36.2cm 10.25" 26.0cm 19.00" 48.3cm 17.40" 44.2cm 21.00" 53.3cm 3.00" R 7.6cm Optional location of mounting bracket for rear-rack or panel mounting of unit (2 places) 1/4 - 20 threaded chassis ground Standard location of mounting bracket for front rack mounting of unit (2 places) Top View of Chassis (use for Rack or Panel Mounting) Top of Backplane Top of Backplane Minimal clearance requirements for communication cables 16.50" 41.9cm NOTE: Bolt hole spacing on chassis fits standard 19" (48.3cm) rack hole spacing. Dimensions and Clearances for Rack and Panel Mounting Triconex recommends the installation of baffles (Triconex part number 2000361-001), as shown on page 23. For temperatures above 122° F (50° C), other heat management provisions must be implemented, such as: • Louvers and pagoda top • Enlarged front and rear louvers with raised pagoda top • Lower density filters • Redundant fans (running all the time) with appropriate louvers and pagoda top • Failure detection circuitry



主营产品简介
专注于DCS、PLC、机器人控制系统、大型伺服四大系统领域。

主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。

优势：供应进口原装正品，专业停产配件，

发货快，货期精准，

主营品牌包括 ABB贝利、GE/FUANC、FOXBORO、英维思TRICONEX 、本特利BENTLY、A-B罗克韦尔、艾默生EMERSON 、OVATION、MOTOROLA、XYVOM、霍尼韦尔HONEYWELL 、力士乐REXROTH、KUKA、NI、DEIF、横河、伍德沃德WOODWARD、瑞恩、施耐德SCHNEIDER 、安川、 穆格MOOG、PROSOFT等品牌。

只卖库存产品;出完需订货!价格以客服说明为准!!订货货期以客服说明为准，有任何疑问请联繁客服! Limited stock, Contact US!
