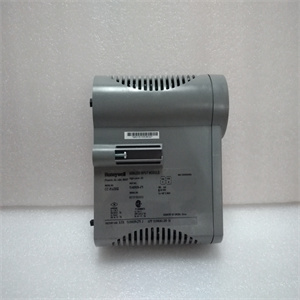

Honeywell 80363893-200 霍尼韦尔PLC/DCS模块卡件

产品标题：Honeywell 80363893-200
产品型号：Honeywell 80363893-200
品牌：Honeywell
发货期：1-3个工作日，具体可联系客服
质保：质保期一年！

产品图片展示

产品详情资料

 确保安全性和大可用性。每个TMR数字输出模块都有一个电压环回电路，该电路独立于负载的存在来验证每个输出开关的操作，并确定潜在故障。所有TMR数字输入模块都支持热备用能力，并且需要一个单独的外部终端面板（ETP），带有与Tricon背板相连的电缆接口。每个模块都采用机械键控，以防止在配置的机箱中安装不当。数字输出旨在为现场设备提供电流，因此现场电源必须连接到现场终端的每个输出点。存在如果检测到的磁场电压与输出点的命令状态不匹配，则会激活LOAD/FUSE报警指示灯。此外，对TMR数字输出模块的每个通道和电路进行持续诊断。任何通道上的任何诊断故障都会激活故障指示灯，进而激活底盘警报信号。故障指示灯仅指示通道故障，而不是模块故障。保证模块在出现单个故障时能够正常运行，并且在出现某些类型的多重故障时可以继续正常运行。​​​​​​​16点监督和32点监督/非监督数字输出模块专为关键的控制程序设计，监督数字输出（SDO）模块可满足输出长时间保持单一状态的系统的需求（在某些应用中，长达数年）。SDO模块在三个通道中的每个通道上接收来自主处理器的输出信号。然后，每组三个信号由一个完全容错的四倍频输出开关进行表决，该开关的元件为功率晶体管，因此一个表决输出信号被传递到现场终端。每个SDO模块都有电压和电流环回电路，并配有复杂的在线诊断，以验证每个输出开关的操作、磁场电路和负载的存在。这种设计提供了完整的故障覆盖，而无需影响输出信号。这些模块被称为“受监控的”，因为故障覆盖范围扩展到包括潜在的现场问题。换言之，磁场电路由SDO模块监控，以便检测以下磁场故障：•断电或保险丝熔断•负载开路或缺失•磁场短路导致负载错误通电•断电状态下的短路负载未检测到任何输出点上的磁场电压，会使电源报警指示灯通电。如果未检测到负载的存在，负载报警指示灯将通电。所有SDO模块都支持热备盘模块，并需要一个单独的外部终端面板（ETP），该面板带有与Tricon背板相连的电缆接口。型号3623/3623T1 1。注意：Triconex强烈建议您在选择3623T模块用于现场布线长度超过328英尺（100米）、非双绞线电缆或非典型负载（如智能设备、频闪灯或klaxon）的应用之前，先进行兼容性测试。3624 3625标称电压120 VDC 24 VDC 24 VDC类型TMR，监督TMR，监控TMR，监视/非监督输出信号16，通用16，通用32，通用电压范围90-150 VDC 16-30 VDC 16-32 VDC大电压160 VDC 36 VDC 36 VDC压降<1.5 VDC，典型<1.5 VDC、典型<2.8 VDC@1.7A，典型电源模块负载<10瓦<10瓦<13瓦额定电流，每点大0.8A每10毫秒4A浪涌每10毫秒0.7A每点4.8A浪涌/10毫秒1.7A每点7A浪涌每隔10毫秒小要求负载30 mA 30 mA 10 mA负载漏电4 mA大4 mA大4mA保险丝（现场终端上）1A快速作用n/a-自我保护n/a-自保护点隔离1500 VDC/2500 VDC2 2。适用于3623T。1500 VDC 1500 VDC诊断指示灯打开或关闭状态模块状态字段报警1每点PASS、FAULT、ACTIVE POWER、LOAD（每点1个）每点1 PASS、FAULT、ACTIVE POWER和LOAD（每个点1个16-Point Supervised and 32-Point Supervised/NonSupervised Digital Output Modules Designed for the most critical control programs, supervised digital output (SDO) modules meet the needs of systems whose outputs remain in a single state for extended periods of time (in some applications, for years). An SDO module receives output signals from the main processors on each of three channels. Each set of three signals is then voted upon by a fully faulttolerant quadruplicated output switch whose elements are power transistors, so that one voted output signal is passed to the field termination. Each SDO module has voltage and current loopback circuitry coupled with sophisticated online diagnostics that verify the operation of each output switch, the field circuit and the presence of a load. This design provides complete fault coverage without the need to influence the output signal. The modules are called “supervised” because fault coverage is extended to include potential field problems. In other words, the field circuit is supervised by the SDO module so that the following field faults can be detected: • Loss of power or blown fuse • Open or missing load • A field short resulting in the load being energized in error • A shorted load in the de-energized state Failure to detect field voltage on any output point energizes the power alarm indicator. Failure to detect the presence of a load energizes the load alarm indicator. All SDO modules support hot-spare modules and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Model Number 3623/3623T1 1. CAUTION: Triconex highly recommends that you perform compatibility testing before selecting the model 3623T module for use in applications that have field wiring lengths over 328 feet (100 meters), cable that is not twisted pair, or atypical loads such as smart devices, strobe lights, or klaxons. 3624 3625 Nominal Voltage 120 VDC 24 VDC 24 VDC Type TMR, Supervised TMR, Supervised TMR, Supervised/Non-Supervised Output Signals 16, commoned 16, commoned 32, commoned Voltage Range 90-150 VDC 16-30 VDC 16-32 VDC Maximum Voltage 160 VDC 36 VDC 36 VDC Voltage Drop < 1.5 VDC, typical < 1.5 VDC, typical < 2.8 VDC @ 1.7A, typical Power Module Load < 10 watts < 10 watts < 13 watts Current Ratings, Maximum 0.8A per point 4A surge per 10 ms 0.7A per point 4.8A surge per 10 ms 1.7A per point 7A surge per 10 ms Minimum Required Load 30 mA 30 mA 10 mA Load Leakage 4 mA maximum 4 mA maximum 4 mA maximum Fuses (on Field Termination) 1A fast-acting n/a—self-protecting n/a—self-protecting Point Isolation 1500 VDC/ 2500 VDC2 2. For 3623T. 1500 VDC 1500 VDC Diagnostic Indicators ON or OFF State Module Status Field Alarm 1 per point PASS, FAULT, ACTIVE POWER, LOAD (1 per point) 1 per point PASS, FAULT, ACTIVE POWER, LOAD (1 per point) 1 per point PASS, FAULT, LOAD, ACTIVE LOAD (1 per point) Color Code Steel Blue TurquoisInput Frequency Range 0 Hz to 1 KHz Minimum Input Pulse Width 300 microseconds Accuracy Active Module ± 2 counts Hot-spare module (maximum error counts during hot replacement) 1–10 >= 100 Hz 0-1 <= 100 Hz Maximum Count 2147483647 (231 - 1) Counter Overflow (worst case @ 1 KHz) 596 Hours 2.5 VDC absolute maximum Count Up Switching Level Rising edge (OFF



主营产品简介
专注于DCS、PLC、机器人控制系统、大型伺服四大系统领域。

主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。

优势：供应进口原装正品，专业停产配件，

发货快，货期精准，

主营品牌包括 ABB贝利、GE/FUANC、FOXBORO、英维思TRICONEX 、本特利BENTLY、A-B罗克韦尔、艾默生EMERSON 、OVATION、MOTOROLA、XYVOM、霍尼韦尔HONEYWELL 、力士乐REXROTH、KUKA、NI、DEIF、横河、伍德沃德WOODWARD、瑞恩、施耐德SCHNEIDER 、安川、 穆格MOOG、PROSOFT等品牌。

只卖库存产品;出完需订货!价格以客服说明为准!!订货货期以客服说明为准，有任何疑问请联繁客服! Limited stock, Contact US!

●使用前:

在操作和维护，安装设备之前，请阅读并严格遵守安全相关的信息。

Read and strictly follow safety-related information before operatingmaintainingand installing equipment.

●使用者要求:

必须从事安装，组装或维护设备等相关工控电气机械以及其他相关技术的人员。

Must be engaged in the installation,assembly or maintenance of equipment and other related industriacontroeectrica machinery and other related technica personne.应用范围:

应用于品牌本系列工业以及生产生活自动化设备产品。

Used in the brand of this series of industriaand production automation eauipment products

适用于场景:系统集成，非标定制，产线升级改造，原设备电气替换等等。

Suitable for scenarios:system integration,non-standard customizationproduction line upgrading and transformation,electrical replacement of original equipment,etc.

●操作人员:

应该由本品牌专业培训操作员来安装、操作和维修设备。专业人员具有技术能力强，熟悉安全信息和安全实施:

熟悉设备的安装加工、操作和维护:熟悉处理所有的潜在危险情况。

Equipment should be installed,operated and maintained by trained operators from the brand

●危险情况

警告

.请注意使用人员的人身安全。

●除了产品特性以及功能，还需了解产品的使用寿命环境。

●充分学习产品使用手册，否则非专业人员可能会造成人身危险。

Study the product instruction manual thoroughlyotherwise it may cause personal danger to non-professionals.

●服务行业

适用水泥，木业，石业，橡胶，石油，化工，发电，环保，水处理，制冷，交通，钢铁，食品，饮料，船舶，制冷等行业

Applicable to cementwood,stone,rubber,petroleumchemical, power generation,
