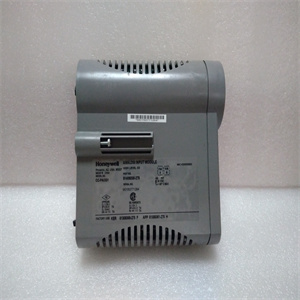

Honeywell 8C-PAOHA1 51454469-275 DCS/PLC卡件通讯模块

主营产品简介
专注于DCS、PLC、机器人控制系统、大型伺服四大系统领域。

主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。

优势：供应进口原装正品，专业停产配件，

发货快，货期精准，

主营品牌包括 ABB贝利、GE/FUANC、FOXBORO、英维思TRICONEX 、本特利BENTLY、A-B罗克韦尔、艾默生EMERSON 、OVATION、MOTOROLA、XYVOM、霍尼韦尔HONEYWELL 、力士乐REXROTH、KUKA、NI、DEIF、横河、伍德沃德WOODWARD、瑞恩、施耐德SCHNEIDER 、安川、 穆格MOOG、PROSOFT等品牌

产品图片展示

产品详情资料

 示例1：所选单位[N]，称重传感器标称负载100 kN，测量值987654 N。显示器上显示的值：987600 N。示例2：所选单元[kN]，称重元件标称负载100 kN，测量值为987654 N.显示器上显示值：987.6 kN。与设置小数功能一起显示的测量值示例：示例1：选定单位[pli]，称重传感器标称载荷1 kN，测量值46.5987 pli。设置小数=2显示值：46.60 pli。示例2：所选单位[pli]，称重传感器标称载荷1 kN，测量值46.5987 pli。设置小数=0显示值：47 pli。张力电子设备PFEA113，用户手册第4.7节操作员菜单3BSE029382R0101版次C 4-5 4.7操作员菜单本节介绍操作员菜单。显示值的更新时间为500毫秒。请使用和在菜单之间切换。图4-2操作员菜单张力卷1值张力A值张力B值张力差A-B值AO1-AO 6值错误和警告消息张力卷2值张力C值张力D值张力差C-D值张力值卷1张力值卷2连接到AO1的张力值-AO6值=N，kN，kg，lbs，N/m，kN/m，kg/m或pli张力电子元件PFEA113，用户手册第4章操作4-6 3BSE029382R0101 Rev C 4.7.1卷筒纸张力4.7.1.1标准辊（两个称重传感器），一卷或两卷当一个标准卷（两个称重传感器）连接到张力电子设备时，以下菜单可用：•一卷–膜张力显示称重传感器a和称重传感器B测量的总膜张力–张力a显示称重传感器测量的膜张力部分a–张力B显示称重传感器B测得的膜张力的部分–张力Diff a-B显示张力A和张力B之间的差异•两卷张力菜单，卷1:–张力卷1显示称重传感器A和称重传感器B测量的总卷筒张力–张力A显示称重传感器测量的卷筒张力部分A–张力B显示称重传感器B测得的卷筒张力部分–张力差异A-B显示张力A和拉力B张力菜单之间的差异，卷2:–张力卷2显示测压元件C和测压元件D测得的总卷筒张力–张力C显示测压单元C测得的卷筒张力部分–张力D显示测压传感器D测得卷筒张力部分-张力Diff C-D显示张力C和张力D之间的差异张力电子设备PFEA113，用户手册第4.7.1节“卷筒纸张力”3BSE029382R0101 Rev C 4-7 4.7.1.2节“分段辊分段辊比例因数”（SRSF）用于补偿卷取增益，以便在分段辊应用中并非所有辊都由称重传感器支撑时获得正确的测量读数。关于SRSF的简化计算，请参考附录A.3.1分段滚动比例因子（SRSF）分段辊（一个输入）–张力A•分段辊（两个输入）-卷筒张力（总卷筒张力=A+B）–张力B、张力差A-B•分段辊，张力D，张力差A-D 4.7.1.3单面测量（一个称重传感器）当每卷只有一个称重元件（单面测量）连接到张力电子设备时，会显示以下菜单：•卷筒张力（一卷，称重传感器A或B）•张力卷1（两卷，卷1，称重传感器B）•张紧卷2（两卷、卷2，称重传感器C或D）卷筒张力，TensionRoll 1或TensionDoll 2是由单个称重传感器乘以2测得的张力Example 1: Selected unit [N], Load cell nominal load 100 kN, Measured value 987654 N. Value presented on display: 987600 N. Example 2: Selected unit [kN], Load cell nominal load 100 kN, Measured value 987654 N. Value presented on display: 987.6 kN. Examples of measuring values displayed together with the Set Decimals function: Example 1: Selected unit [pli], Load cell nominal load 1 kN, Measured value 46.5987 pli. Set Decimals = 2 Value presented on display: 46.60 pli. Example 2: Selected unit [pli], Load cell nominal load 1 kN, Measured value 46.5987 pli. Set Decimals = 0 Value presented on display: 47 pli. Tension Electronics PFEA113, User Manual Section 4.7 Operator Menus 3BSE029382R0101 Rev C 4-5 4.7 Operator Menus This section describes the operator menus. The updating time for displayed values is 500 ms. Use up and to switch between menus. Figure 4-2. Operator Menus TensionRoll 1 Value Tension A Value Tension B Value TensionDiff A-B Value AO 1 - AO 6 Value Error and warning messages TensionRoll 2 Value Tension C Value Tension D Value TensionDiff C-D Value Tension values Roll 1 Tension values Roll 2 Tension values connected to AO1 - AO6 Value = N, kN, kg, lbs, N/m, kN/m, kg/m or pli Tension Electronics PFEA113, User Manual Chapter 4 Operation 4-6 3BSE029382R0101 Rev C 4.7.1 Web Tension 4.7.1.1 Standard Roll (two load cells), One or Two Rolls The following menus are available when a standard roll (two load cells) is connected to the tension electronics: • One roll – WebTension Shows the total web tension measured by load cell A and load cell B – Tension A Shows the part of web tension measured by load cell A – Tension B Shows the part of web tension measured by load cell B – TensionDiff A-B Shows the difference between Tension A and Tension B • Two rolls Tension menus, Roll 1: – TensionRoll 1 Shows the total web tension measured by load cell A and load cell B – Tension A Shows the part of web tension measured by load cell A – Tension B Shows the part of web tension measured by load cell B – TensionDiff A-B Shows the difference between Tension A and Tension B Tension menus, Roll 2: – TensionRoll 2 Shows the total web tension measured by load cell C and load cell D – Tension C Shows the part of web tension measured by load cell C – Tension D Shows the part of web tension measured by load cell D – TensionDiff C-D Shows the difference between Tension C and Tension D Tension Electronics PFEA113, User Manual Section 4.7.1 Web Tension 3BSE029382R0101 Rev C 4-7 4.7.1.2 Segmented Roll Segmented Roll Scale Factor (SRSF) is used to compensate the wrap gain to get a correct measurement reading when not all rolls are supported by load cells in a segmented roll application. For simplified calculations of SRSF, refer to Appendix A.3.1 Segmented Roll Scale Factor (SRSF). • Segmented roll (one input) – Tension A • Segmented roll (two inputs) – WebTension (total web tension = A+B) – Tension A, Tension B, TensionDiff A-B • Segmented roll (three inputs) – WebTension (total web tension = A+B+C) – Tension A, Tension B, Tension C, TensionDiff A-C • Segmented roll (four inputs) – WebTension (total web tension = A+B+C+D) – Tension A, Tension B, Tension C, Tension D, TensionDiff A-D 4.7.1.3 Single Side Measurement (One Load Cell) The following menus are shown when only one load cell per roll (single side measurement) is connected to the tension electronics: • Web Tension (One roll, load cell A or B) • TensionRoll 1 (Two rolls, Roll 1, load cell A or B) • TensionRoll 2 (Two rolls, Roll 2, load cell C or D) Web Tension, TensionRoll 1 or TensionRoll 2 is the tension measured by a single load cell multiplied by 2
